Dimensions
2-1
Dimensions
CPUs
Link Adapter
Programming Console
12

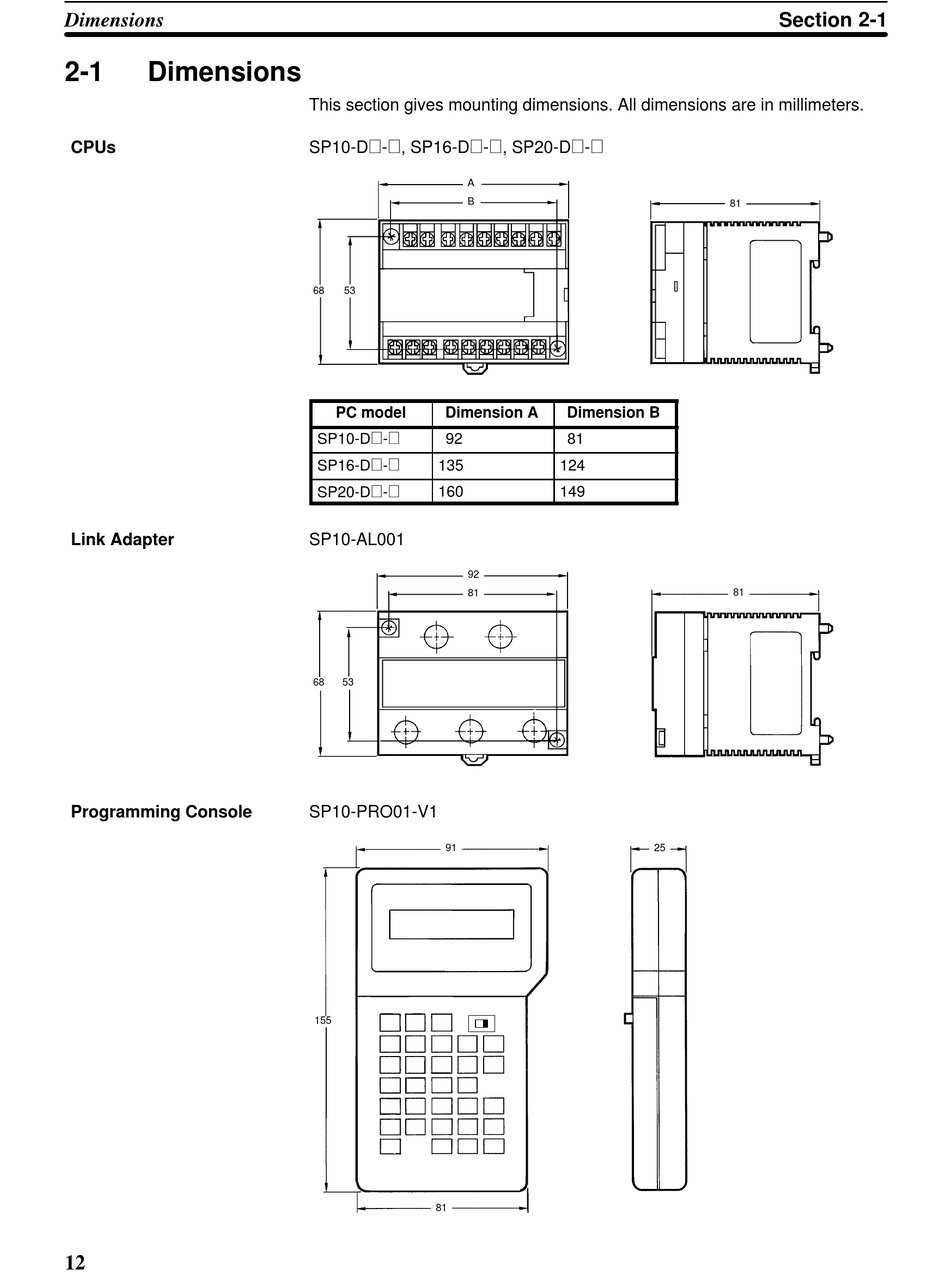

This section gives mounting dimensions. All dimensions are in millimeters.
SP10-D_-_, SP16-D_-_, SP20-D_-_
A
B
68
53
PC model
Dimension A
SP10-D_-_
92
135
SP16-D_-_
SP20-D_-_
160
SP10-AL001
92
81
68
53
SP10-PRO01-V1
91
155
81
81
Dimension B
81
124
149
81
25
Section 2-1
