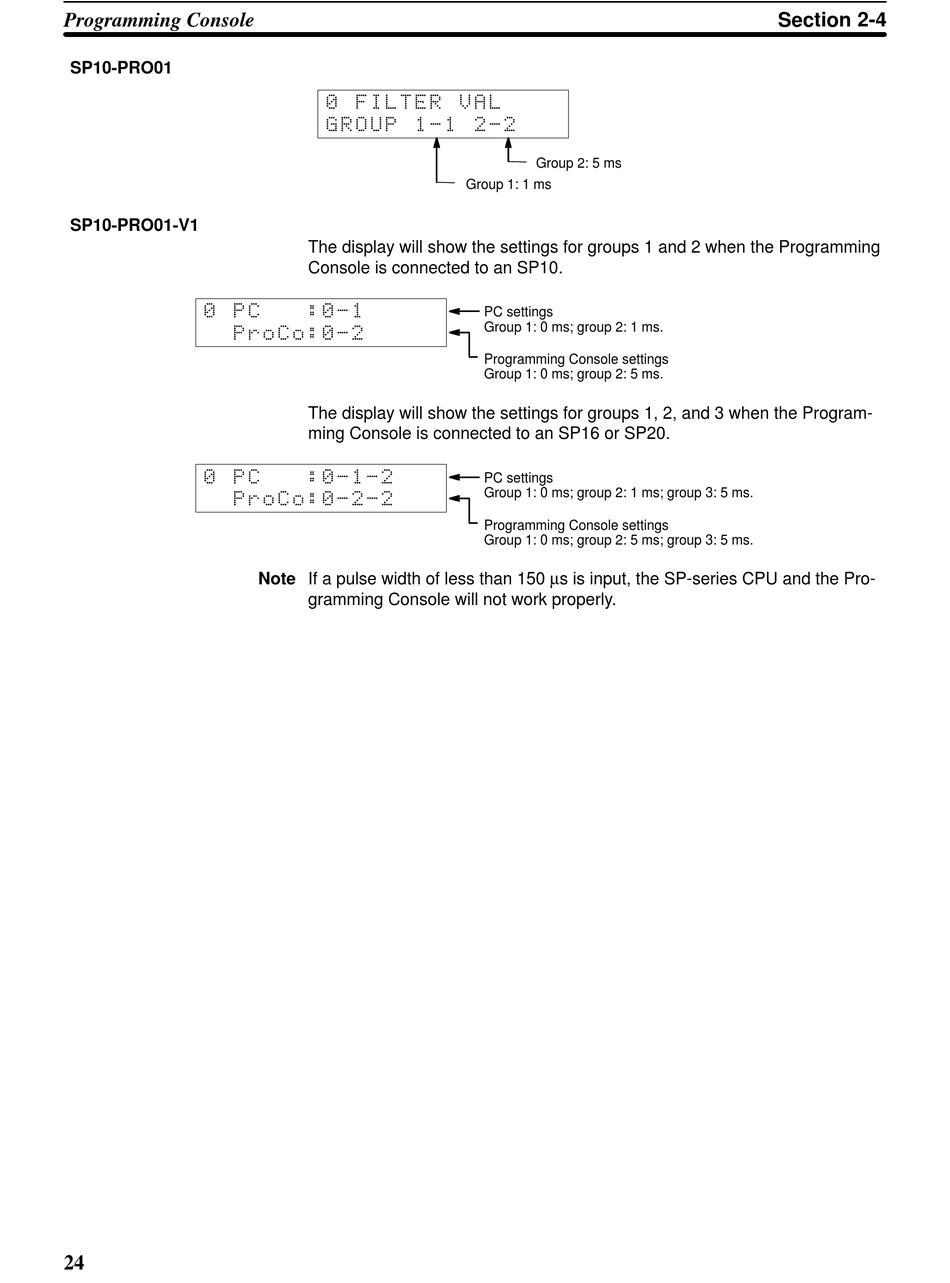

Omron SYSMAC mini SP10 Operation Manual page 32

Programming Console
SP10-PRO01
SP10-PRO01-V1
0 PC
ProCo:0 2
0 PC
ProCo:0 2 2
24
0 FILTER VAL
GROUP 1 1 2 2
The display will show the settings for groups 1 and 2 when the Programming
Console is connected to an SP10.
:0 1
The display will show the settings for groups 1, 2, and 3 when the Program-
ming Console is connected to an SP16 or SP20.
:0 1 2
Note If a pulse width of less than 150 µs is input, the SP-series CPU and the Pro-
gramming Console will not work properly.
Group 2: 5 ms
Group 1: 1 ms
PC settings
Group 1: 0 ms; group 2: 1 ms.
Programming Console settings
Group 1: 0 ms; group 2: 5 ms.
PC settings
Group 1: 0 ms; group 2: 1 ms; group 3: 5 ms.
Programming Console settings
Group 1: 0 ms; group 2: 5 ms; group 3: 5 ms.
Section 2-4
