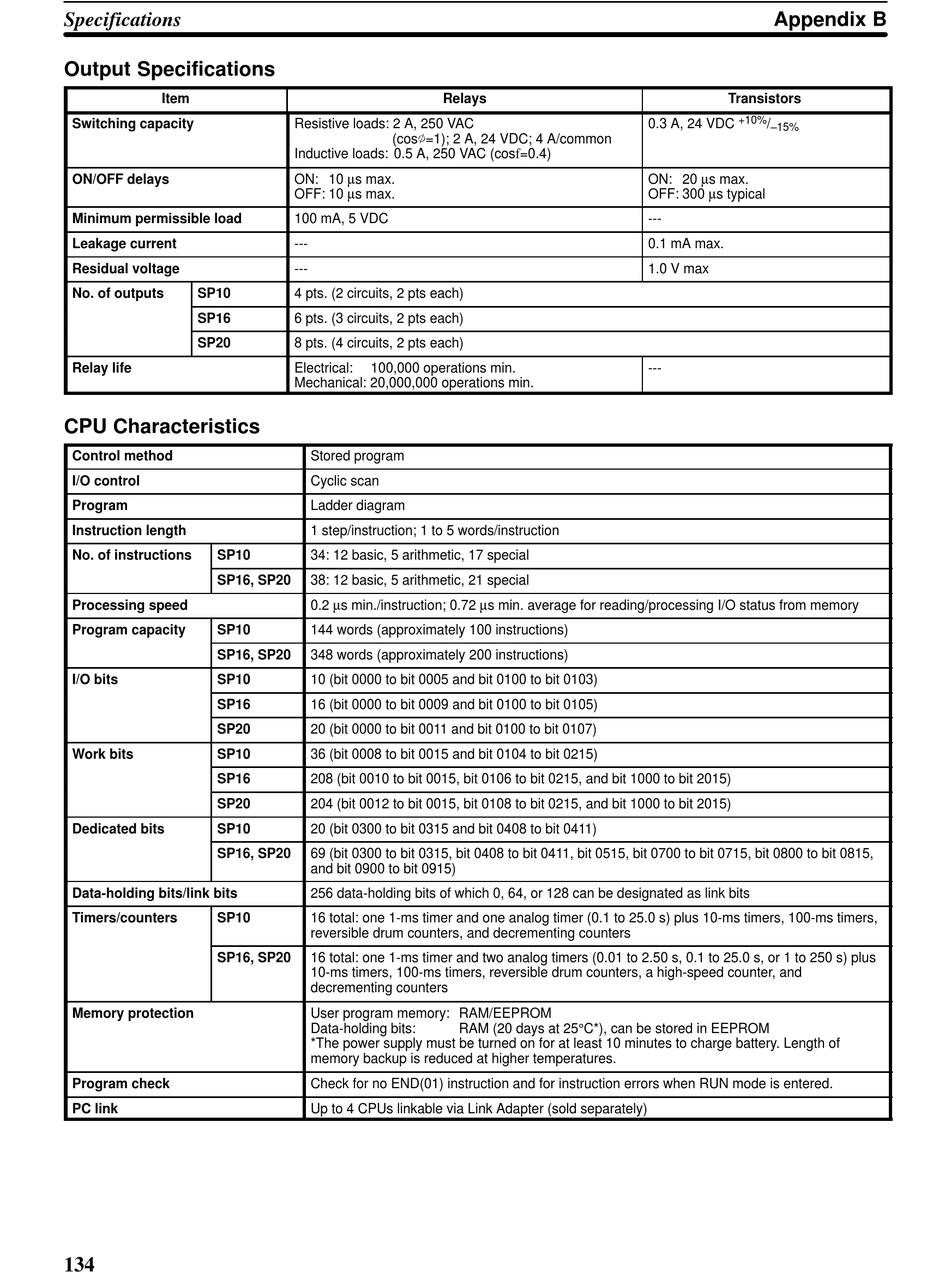

Specifications
Output Specifications
Item
Switching capacity
ON/OFF delays
Minimum permissible load
Leakage current
Residual voltage
No. of outputs SP10
SP16
SP20
Relay life
CPU Characteristics
Control method
I/O control
Program
Instruction length
No. of instructions SP10
SP16, SP20
Processing speed
Program capacity SP10
SP16, SP20
I/O bits SP10
SP16
SP20
Work bits SP10
SP16
SP20
Dedicated bits SP10
SP16, SP20
Data-holding bits/link bits
Timers/counters SP10
SP16, SP20
Memory protection
Program check
PC link
134
Relays
Resistive loads: 2 A, 250 VAC
(cosf=1); 2 A, 24 VDC; 4 A/common
Inductive loads: 0.5 A, 250 VAC (cosf=0.4)
ON: 10 µs max.
OFF: 10 µs max.
100 mA, 5 VDC
---
---
4 pts. (2 circuits, 2 pts each)
6 pts. (3 circuits, 2 pts each)
8 pts. (4 circuits, 2 pts each)
Electrical: 100,000 operations min.
Mechanical: 20,000,000 operations min.
Stored program
Cyclic scan
Ladder diagram
1 step/instruction; 1 to 5 words/instruction
34: 12 basic, 5 arithmetic, 17 special
38: 12 basic, 5 arithmetic, 21 special
0.2 µs min./instruction; 0.72 µs min. average for reading/processing I/O status from memory
144 words (approximately 100 instructions)
348 words (approximately 200 instructions)
10 (bit 0000 to bit 0005 and bit 0100 to bit 0103)
16 (bit 0000 to bit 0009 and bit 0100 to bit 0105)
20 (bit 0000 to bit 0011 and bit 0100 to bit 0107)
36 (bit 0008 to bit 0015 and bit 0104 to bit 0215)
208 (bit 0010 to bit 0015, bit 0106 to bit 0215, and bit 1000 to bit 2015)
204 (bit 0012 to bit 0015, bit 0108 to bit 0215, and bit 1000 to bit 2015)
20 (bit 0300 to bit 0315 and bit 0408 to bit 0411)
69 (bit 0300 to bit 0315, bit 0408 to bit 0411, bit 0515, bit 0700 to bit 0715, bit 0800 to bit 0815,
and bit 0900 to bit 0915)
256 data-holding bits of which 0, 64, or 128 can be designated as link bits
16 total: one 1-ms timer and one analog timer (0.1 to 25.0 s) plus 10-ms timers, 100-ms timers,
reversible drum counters, and decrementing counters
16 total: one 1-ms timer and two analog timers (0.01 to 2.50 s, 0.1 to 25.0 s, or 1 to 250 s) plus
10-ms timers, 100-ms timers, reversible drum counters, a high-speed counter, and
decrementing counters
User program memory: RAM/EEPROM
Data-holding bits: RAM (20 days at 25°C*), can be stored in EEPROM
*The power supply must be turned on for at least 10 minutes to charge battery. Length of
memory backup is reduced at higher temperatures.
Check for no END(01) instruction and for instruction errors when RUN mode is entered.
Up to 4 CPUs linkable via Link Adapter (sold separately)
Appendix B
Transistors
+10%
0.3 A, 24 VDC /
–15%
ON: 20 µs max.
OFF: 300 µs typical
---
0.1 mA max.
1.0 V max
---
