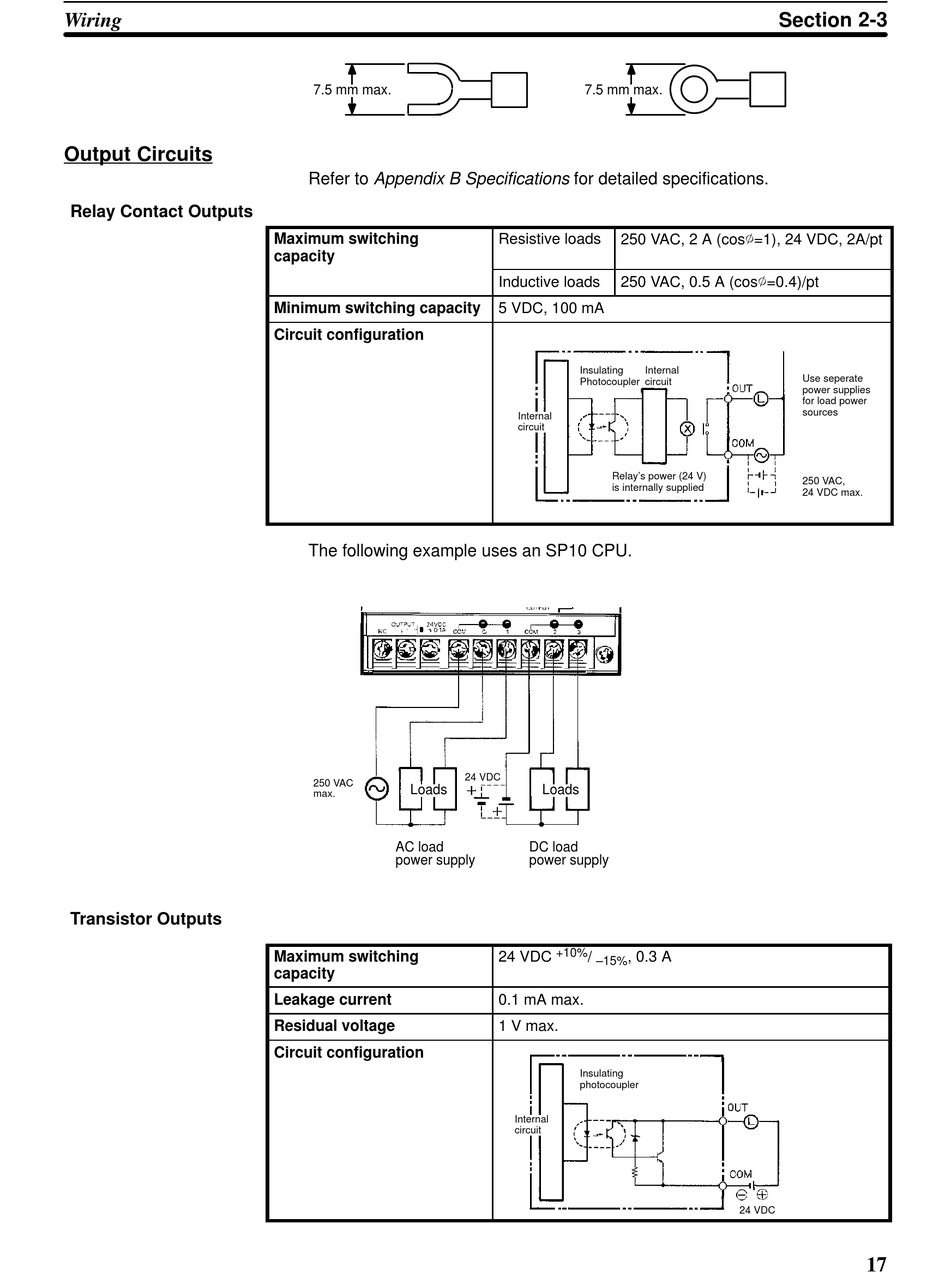

Omron SYSMAC mini SP10 Operation Manual page 25

Wiring
Output Circuits
Relay Contact Outputs
Transistor Outputs
7.5 mm max.
Refer to Appendix B Specifications for detailed specifications.
Maximum switching
capacity
Minimum switching capacity
Circuit configuration
The following example uses an SP10 CPU.
250 VAC
Loads
max.
AC load
power supply
Maximum switching
capacity
Leakage current
Residual voltage
Circuit configuration
7.5 mm max.
Resistive loads 250 VAC, 2 A (cosf=1), 24 VDC, 2A/pt
Inductive loads
250 VAC, 0.5 A (cosf=0.4)/pt
5 VDC, 100 mA
Insulating
Photocoupler
Internal
circuit
Relay's power (24 V)
is internally supplied
24 VDC
Loads
DC load
power supply
+10%
24 VDC / , 0.3 A
–15%
0.1 mA max.
1 V max.
Insulating
photocoupler
Internal
circuit
Section 2-3
Internal
Use seperate
circuit
power supplies
for load power
sources
250 VAC,
24 VDC max.
24 VDC
