Basic Programming
0002 0003
0001
0004 0005
0106 0107
0000
0001 0002
Block b
Block a
Block c
0003 0004
0106 0107 0003
0005
0001
0000

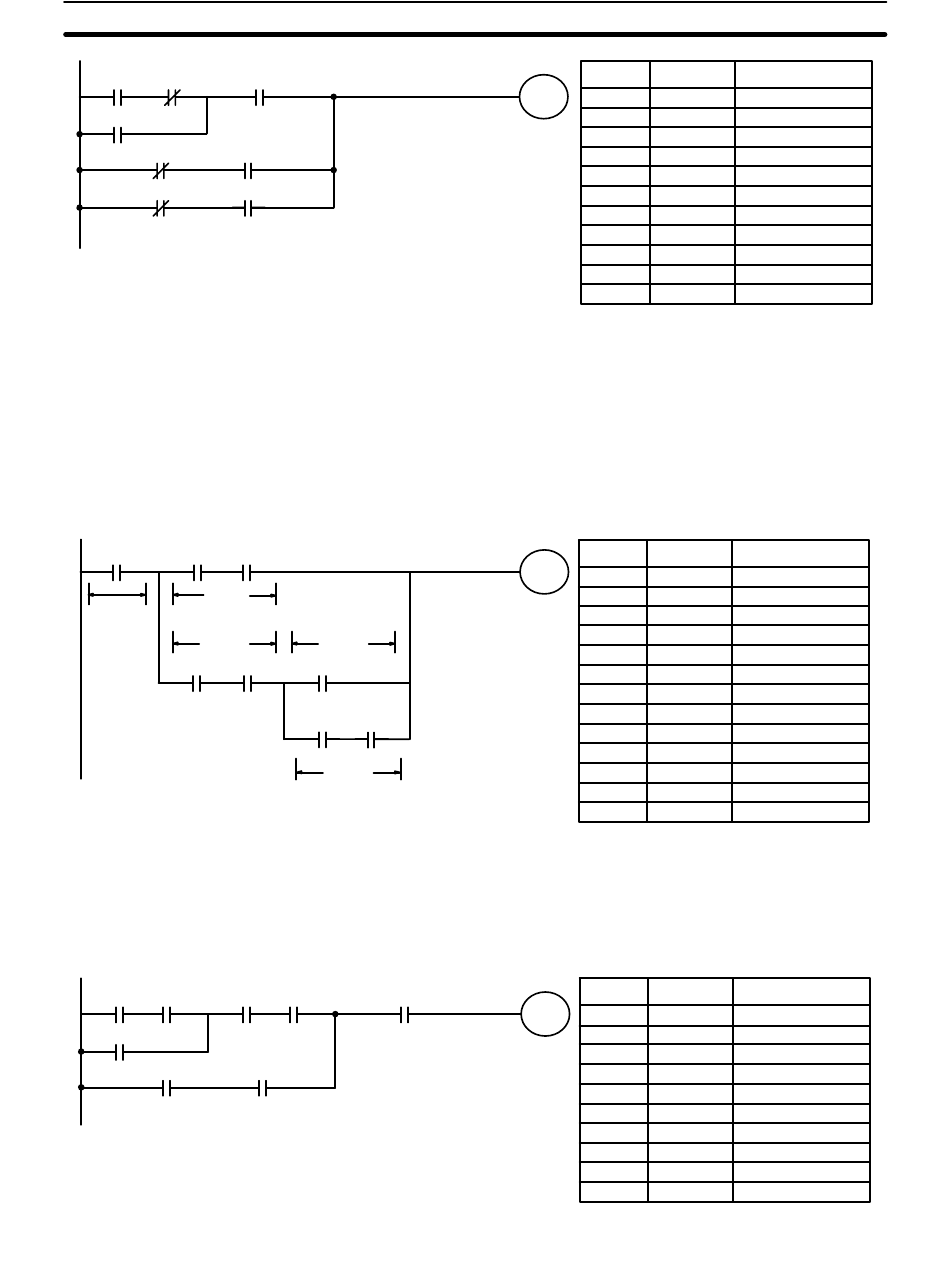

The following diagram requires five blocks, which here are coded in order
before using OR LOAD and AND LOAD to combine them starting from the
last two blocks and working backward. The OR LOAD at program address
008 combines blocks d and e, the following AND LOAD combines the result-
ing execution condition with that of block c, etc.
Block d
0005
0106 0107
Block e
Again, this diagram can be redrawn as follows to simplify program structure
and coding and to save memory space.
0004 0000
0002
Address
LR 0000 000
001
002
003
004
005
006
007
008
009
010
Address Instruction
LR 0000
000
001
002
003
004
005
006
007
008
Blocks d and e 009
Block c with result of above
010
Block b with result of above
011
Block a with result of above
012
Address Instruction
LR 0000 000
001
002
003
004
005
006
007
008
009
Section 3-4
Instruction Operands
LD 0002
AND NOT 0003
OR 0001
AND 0000
LD NOT 0004
AND 0005
OR LD
LD NOT 0106
AND 0107
OR LD
OUT LR 0000
Operands
LD 0000
LD 0001
AND 0002
LD 0003
AND 0004
LD 0005
LD 0106
AND 0107
OR LD
AND LD
OR LD
AND LD
OUT LR 0000
Operands
LD 0106
AND 0107
OR 0005
AND 0003
AND 0004
LD 0001
AND 0002
OR LD
AND 0000
OUT LR 0000
--
--
--
--
--
--
--
