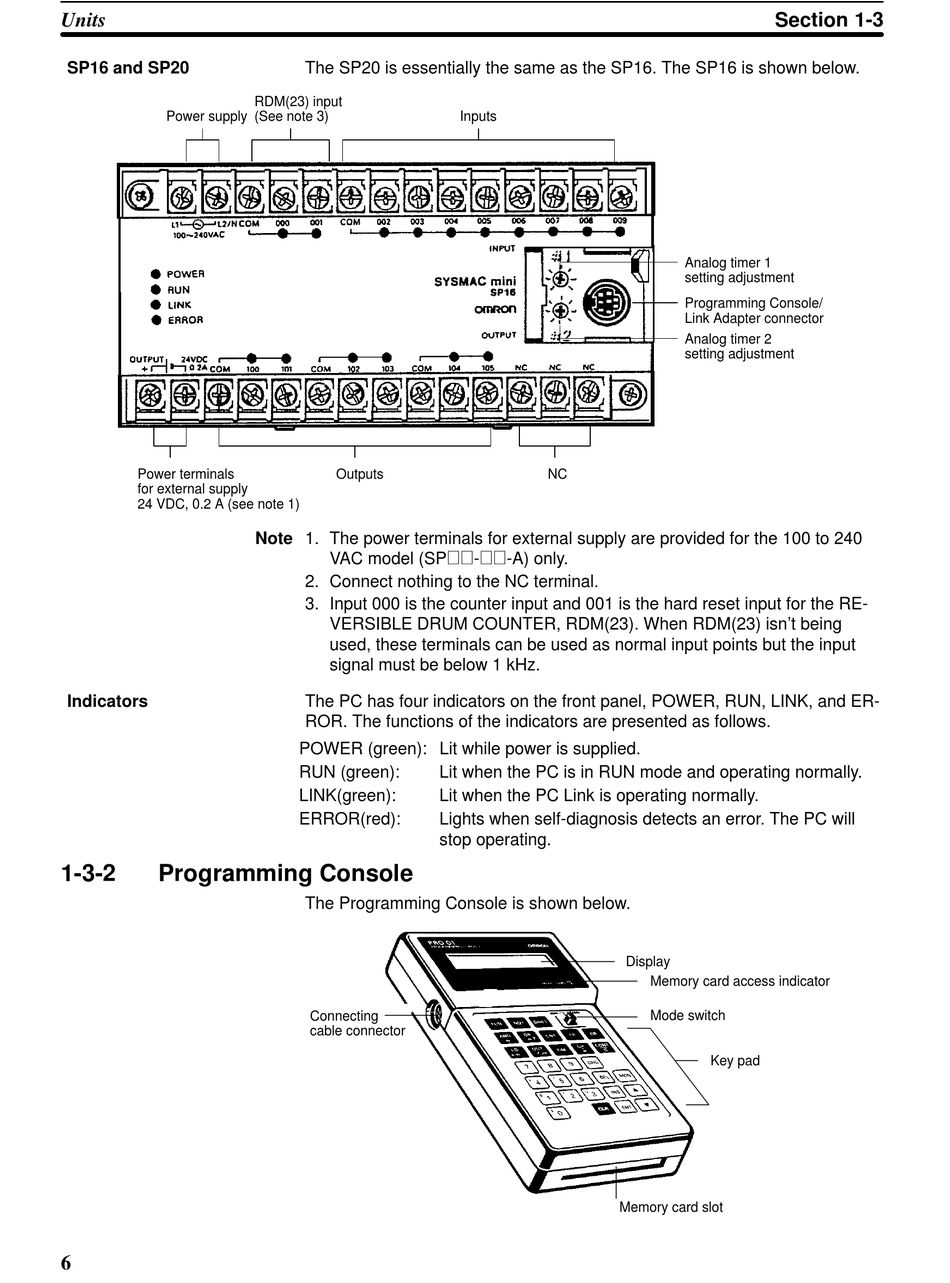

Units
SP16 and SP20
Power supply
Power terminals
for external supply
24 VDC, 0.2 A (see note 1)
Indicators
1-3-2 Programming Console
6
The SP20 is essentially the same as the SP16. The SP16 is shown below.
RDM(23) input
(See note 3)
Outputs
Note 1. The power terminals for external supply are provided for the 100 to 240
VAC model (SP__-__-A) only.
2. Connect nothing to the NC terminal.
3. Input 000 is the counter input and 001 is the hard reset input for the RE-
VERSIBLE DRUM COUNTER, RDM(23). When RDM(23) isn't being
used, these terminals can be used as normal input points but the input
signal must be below 1 kHz.
The PC has four indicators on the front panel, POWER, RUN, LINK, and ER-
ROR. The functions of the indicators are presented as follows.
POWER (green): Lit while power is supplied.
RUN (green):
LINK(green):
ERROR(red):
The Programming Console is shown below.
Connecting
cable connector
Inputs
NC
Lit when the PC is in RUN mode and operating normally.
Lit when the PC Link is operating normally.
Lights when self-diagnosis detects an error. The PC will
stop operating.
Section 1-3
Analog timer 1
setting adjustment
Programming Console/
Link Adapter connector
Analog timer 2
setting adjustment
Display
Memory card access indicator
Mode switch
Key pad
Memory card slot
