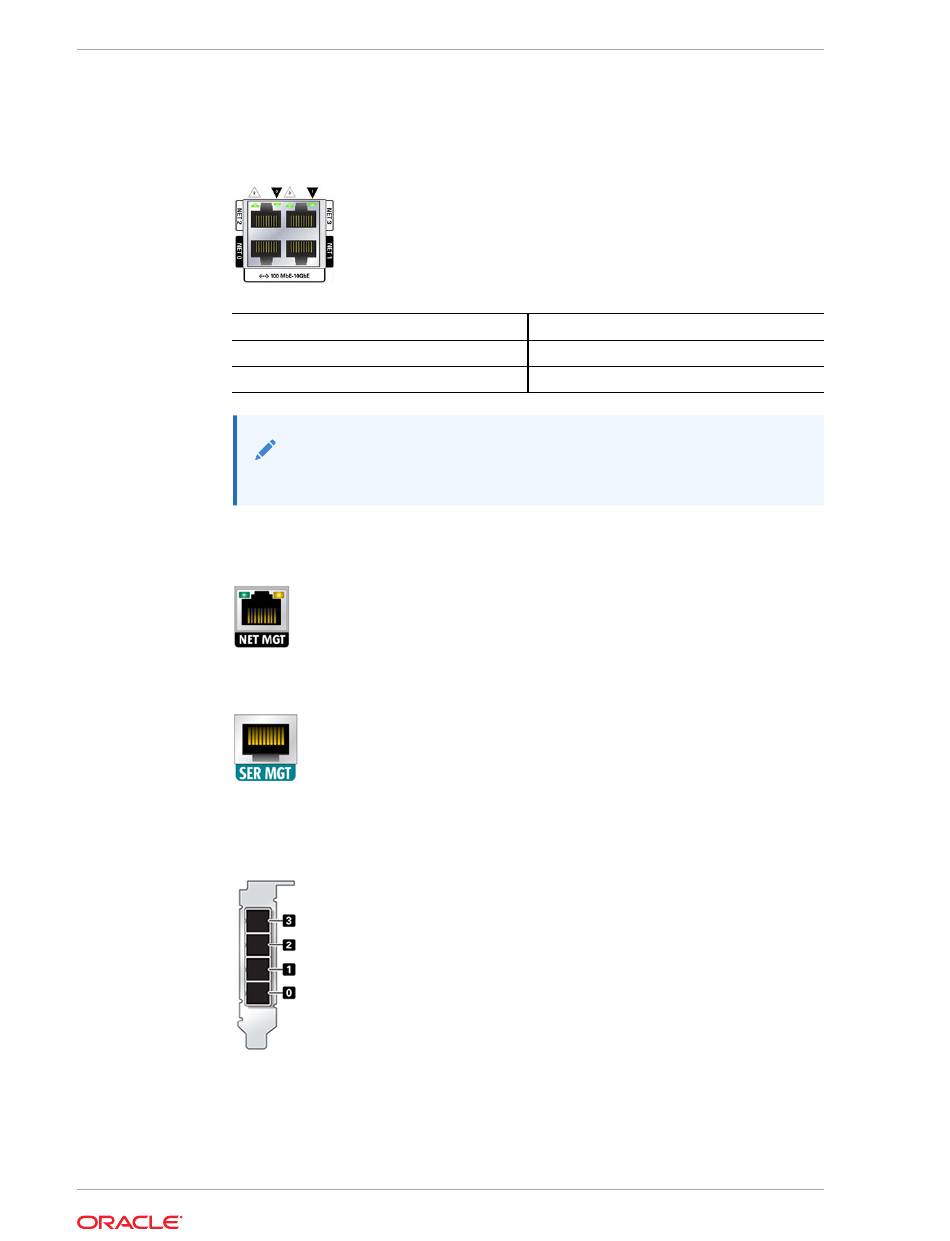

left to top right), as shown in the following figure. Use these ports to connect the
appliance to the network.
The LEDs located above the NET ports, labeled 2, 0, 3, 1 (left to right) are Link/
Activity indicators.
OFF (1)
ON (0)
Blink
Note:
Speed is not indicated for the NET ports.
•
Network Management Port - The network management connector (NET MGT) is
an RJ-45 10/100/1000 BASE-T Ethernet port and provides an alternate terminal
interface to the service processor (SP) console.
•
Serial Management Port - The serial management connector (SER MGT) is an
RJ-45 port and provides a terminal connection to the SP console.
•
HBA Ports - The 4x4 SAS HBA provides connectivity to external Oracle Storage
Drive Enclosure DEx-24 disk shelves. The HBA logical ports are numbered 0-3,
bottom to top.
Overview of the Oracle ZFS Storage ZS4-4 Controller
No Link
Link and no activity
Link and activity
Chapter 2
2-42
