Gently tug on the right side of the CMA's rear slide bar to verify that connector
c.
C is properly seated.

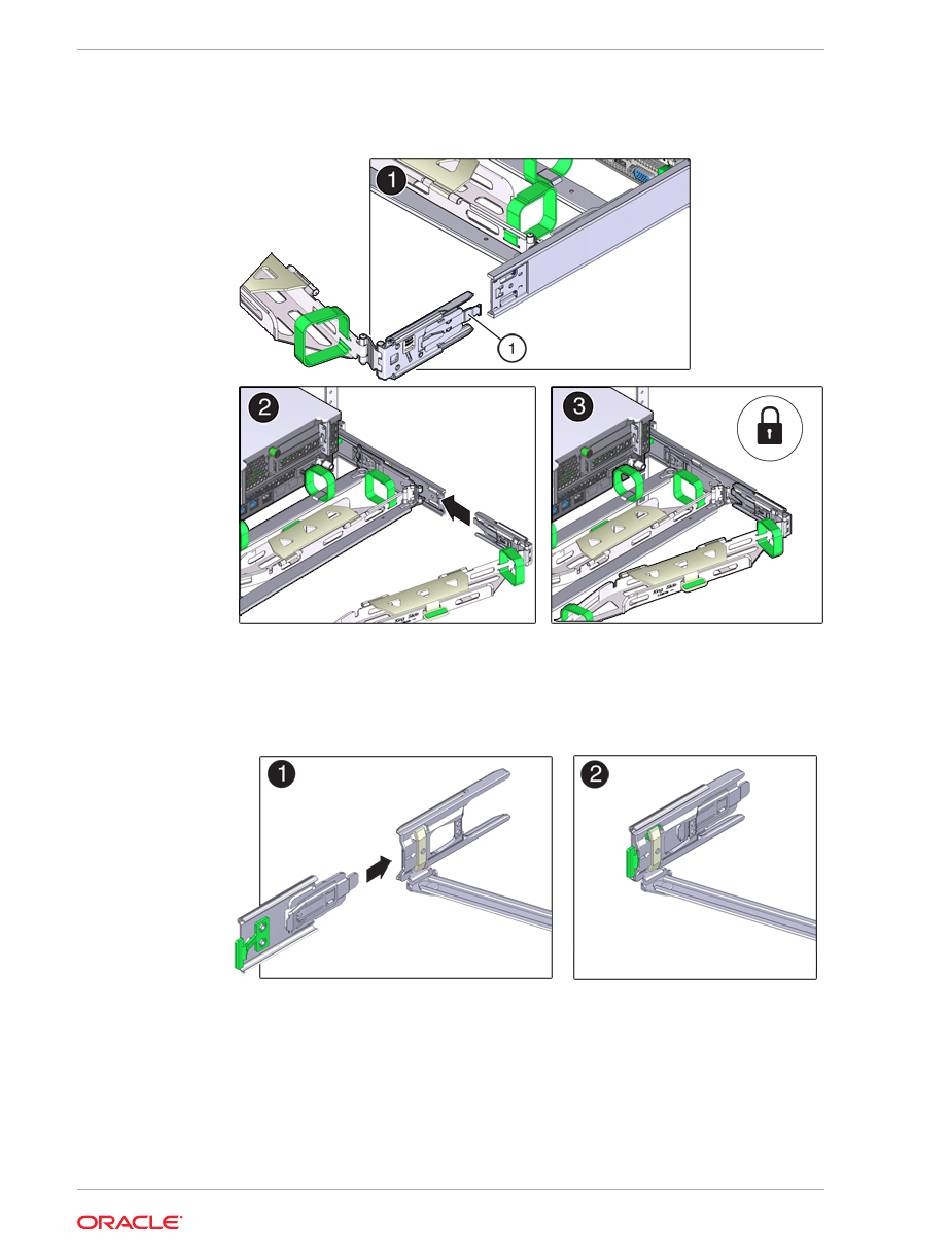

To prepare the CMA's connector D for installation, remove the tape that secures
10.
the slide-rail latching bracket to connector D and ensure that the latching bracket
is properly aligned with connector D (frames 1 and 2).
While holding the slide-rail latching bracket in place, insert connector D and its
11.
associated slide-rail latching bracket into the left slide-rail until connector D locks
into place with an audible click (frames 1 and 2).
When inserting connector D into the slide-rail, the preferred and easier method is
to install connector D and the latching bracket as one assembly into the slide-rail.
Installing an Oracle ZFS Storage ZS3-2 Cable Management Arm
