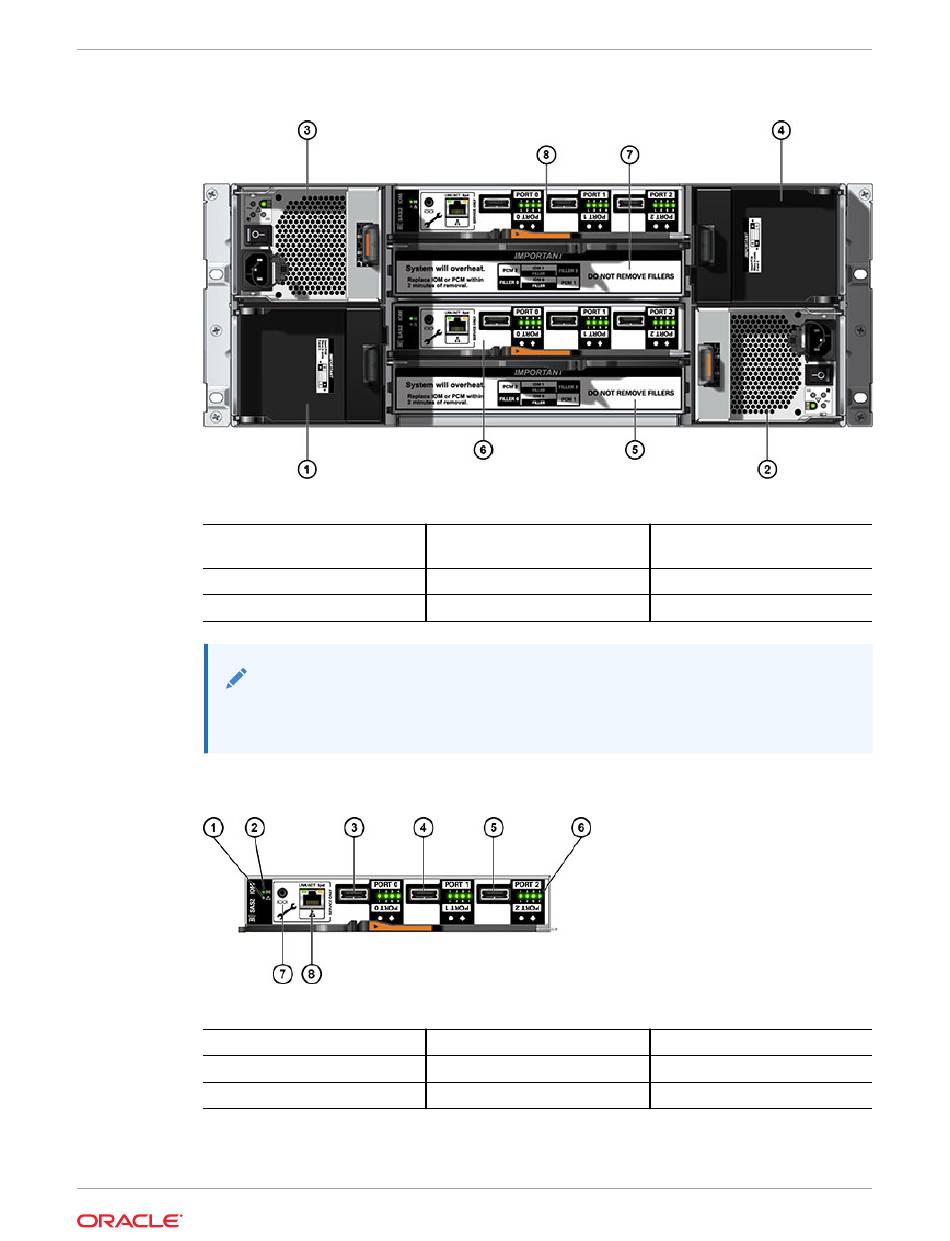

Oracle Storage Drive Enclosure DE2-24C Rear Panel
1 Power supply filler panel, slot 0 2 Power supply with fan module
4 Power supply filler panel, slot 3 5 I/O Module filler panel
7 I/O Module filler panel
Note:
It is especially important that power supplies and their filler panels are in the correct
slots.
Oracle Storage Drive Enclosure DE2 I/O Module Indicators
1 Fault/Locate indicator
4 SAS-2 Port 1
7 For Oracle service only
The Oracle Storage Drive Enclosure DE2-24C and DE2-24P disk shelves use the same I/O
Module.
1
8 I/O Module 1
2 Power/OK indicator
5 SAS-2 Port 2
8 For Oracle service only
Chapter 2
Overview of Disk Shelves
3 Power supply with fan module
2
6 I/O Module 0
3 SAS-2 Port 0
6 Host port activity indicators
