To install CMA connector D into the left slide-rail:
10.
While holding the slide-rail latching bracket in place, insert connector D and its
a.
associated slide-rail latching bracket into the left slide-rail until connector D

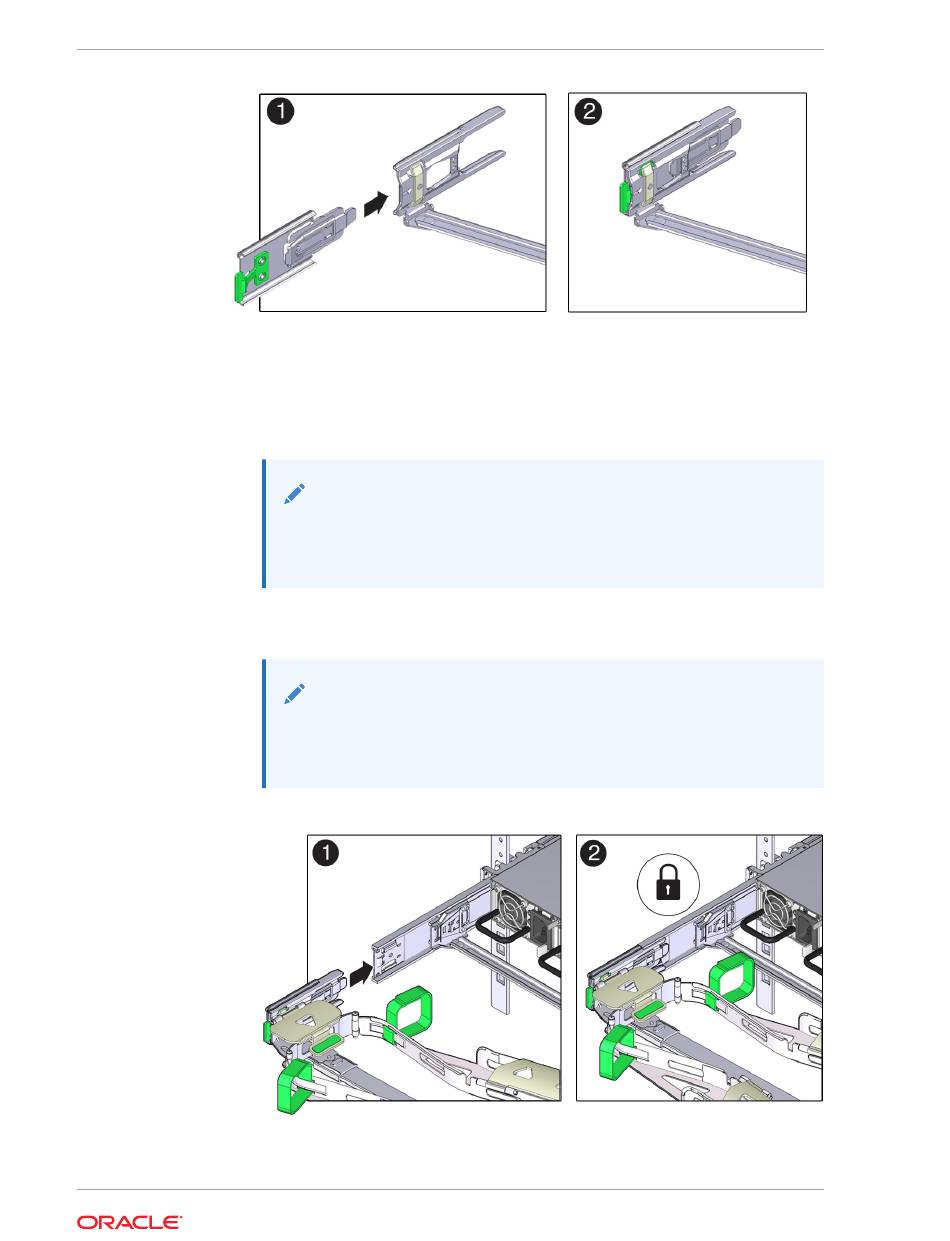

locks into place with an audible click, frames [1] and [2].
Note:
When inserting connector D into the slide-rail, the preferred and
easier method is to install connector D and the latching bracket as
one assembly into the slide-rail.
Gently tug on the left side of the CMA back slide bar to verify that connector D
b.
is properly seated.
Note:
The slide-rail latching bracket has a green release tab. This tab is
used to release and remove the latching bracket so that you can
remove connector D.
Installing an Oracle ZFS Storage ZS7-2 Cable Management Arm
Chapter 5
5-10
