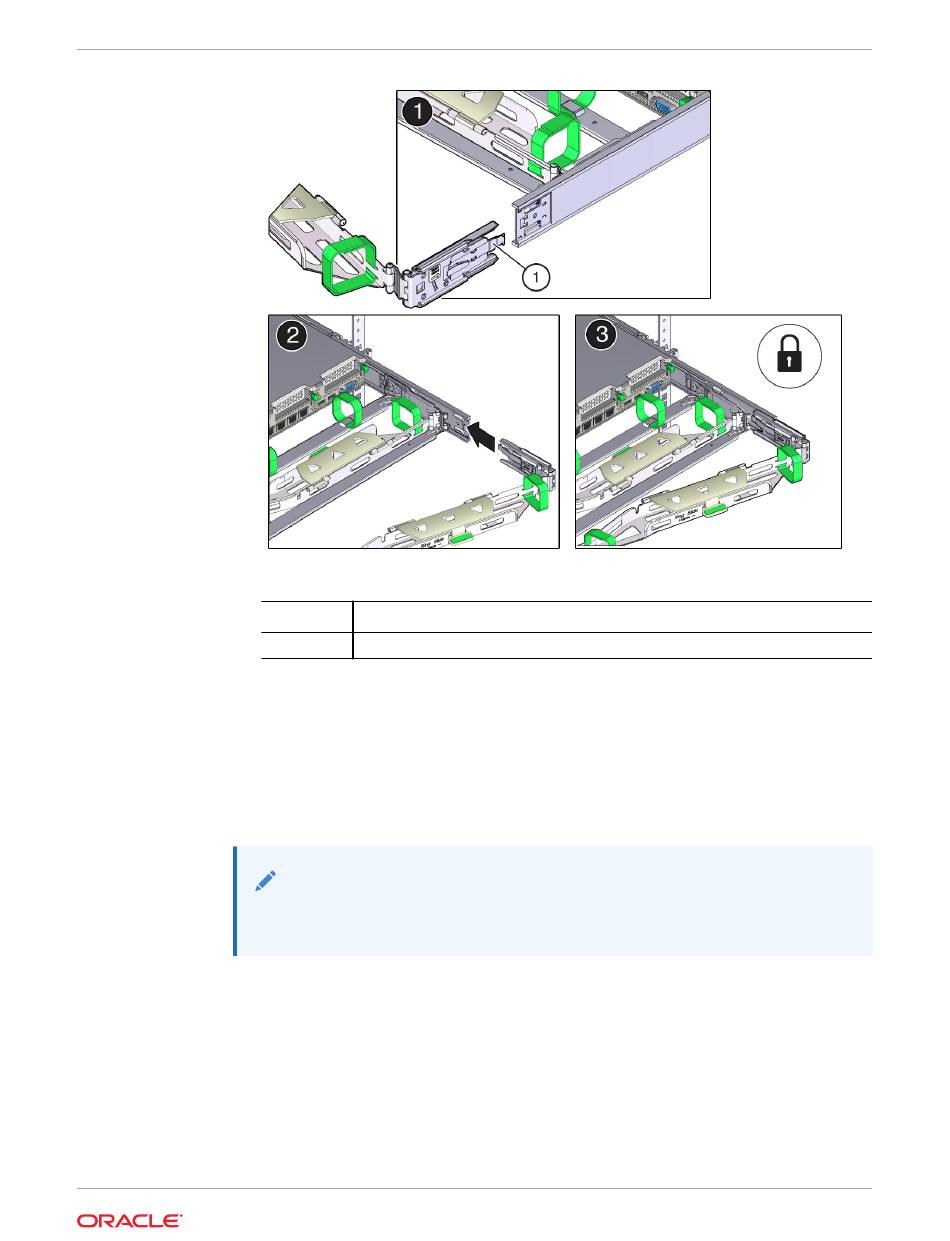

Callout Description
1 Connector C locking spring
Insert connector C into the right slide-rail until it locks into place with an audible click,
b.
frames [2] and [3].
Gently tug on the right side of the CMA back slide bar to verify that connector C is
c.
properly seated.
To prepare CMA connector D for installation, remove the tape that secures the slide-rail
9.
latching bracket to connector D, and ensure that the latching bracket is properly aligned
with connector D, frames [1] and [2].
Note:
The CMA is shipped with the slide-rail latching bracket taped to connector D.
You must remove the tape before you install this connector.
