Oracle ZFS Storage DE3-24P Installation Manual page 105

Callout Description
1 Connector A tab
2 Left slide-rail front slot
To install CMA connector B into the right slide-rail:
7.
Insert CMA connector B into the front slot on the right slide-rail until it locks
a.

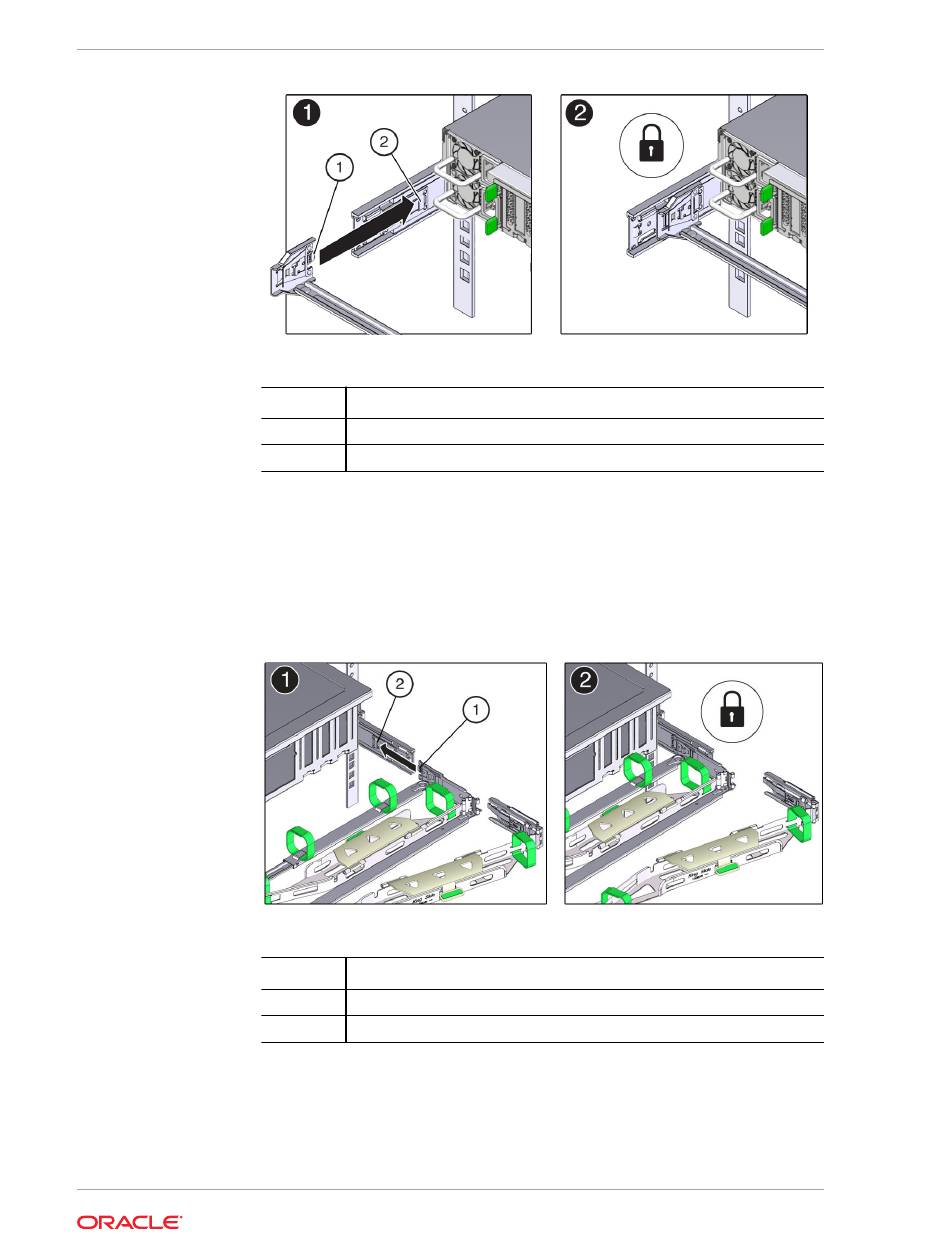

into place with an audible click, frames [1] and [2].
The connector B tab (callout 1) goes into the slide-rail front slot (callout 2).
Gently tug on the right side of the front slide bar to verify that connector B is
b.
properly seated.
Callout Description
1 Connector B tab
2 Right slide-rail front slot
To install CMA connector C into the right slide-rail:
8.
Align connector C with the slide-rail so that the locking spring (callout 1) is
a.
positioned inside (controller side) of the right slide-rail, frame [1].
Installing an Oracle ZFS Storage ZS7-2 Cable Management Arm
