Position a slide rail assembly in your rack so that the brackets at each end of the slide rail
2.
assembly are on the outside of the front and back rack posts.

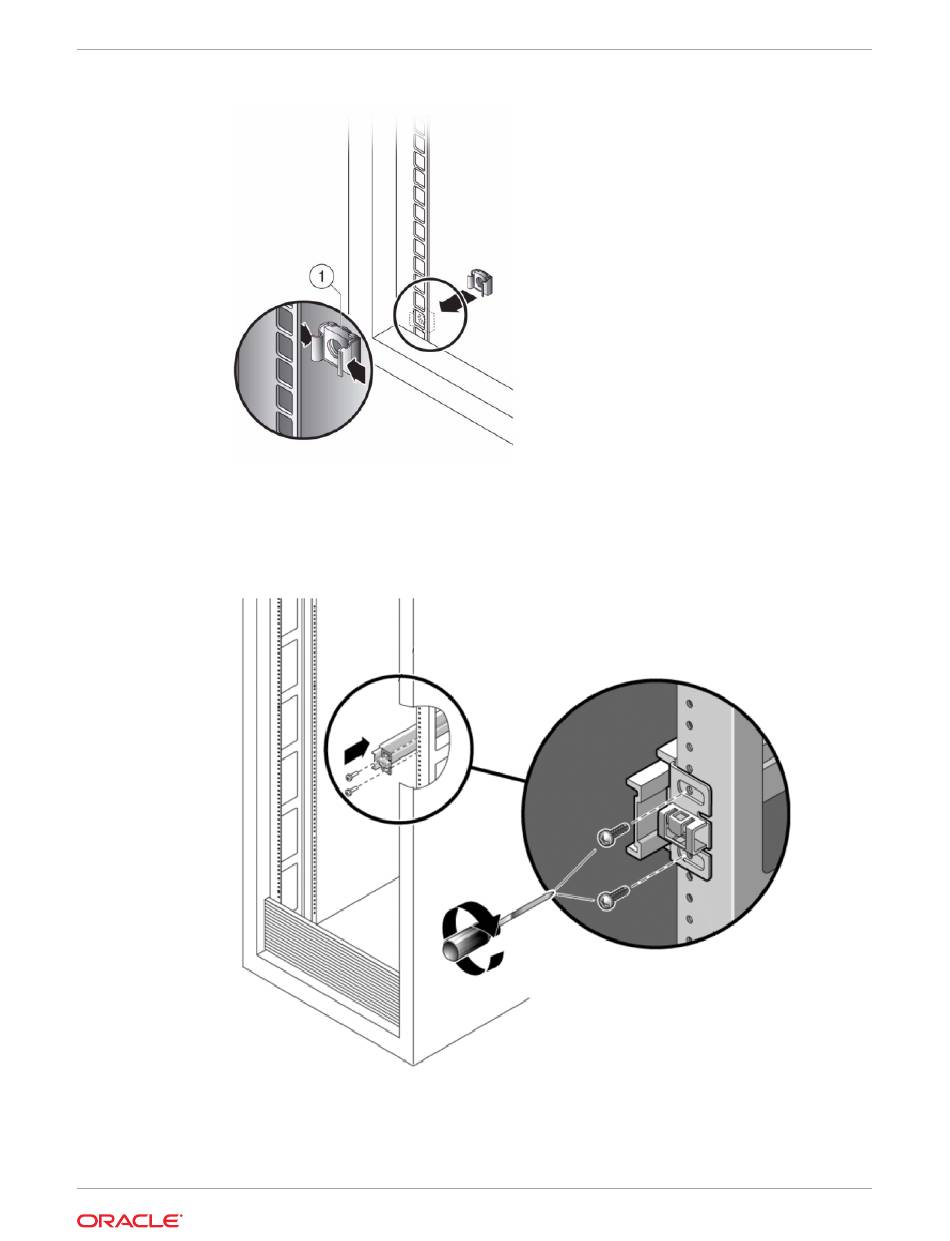

The following graphic illustrates the rail assembly brackets.
Attach each slide rail assembly to the rack posts, but do not tighten the screws
3.
completely.
Installing a Sun ZFS Storage 7x20 Controller onto the Rack Slide Rails
Chapter 10
10-5
