Installing an Oracle ZFS Storage ZS4-4 or Oracle ZFS Storage ZS3-4 Cable Management Arm

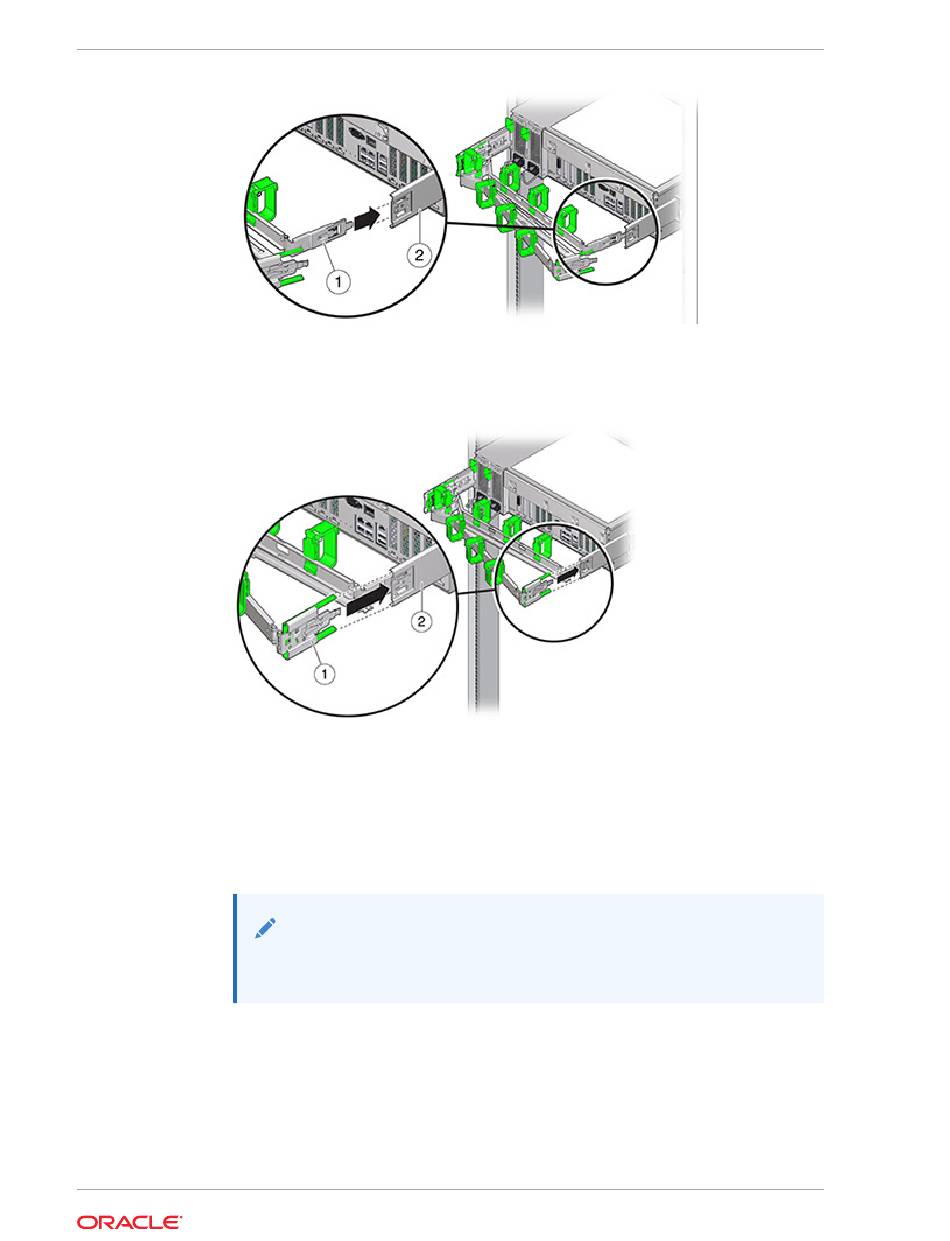

Insert the right CMA slide-rail connector (1) into the right slide-rail assembly (2)
2.
until the connector locks into place with an audible click.
Insert the left CMA slide-rail connector into the left slide-rail assembly until the
3.
connector locks into place with an audible click.
Install and route cables to the controller, as required.
4.
If required, attach the cable hook and loop straps to the CMA, and press them into
5.
place to secure the cables.
Note:
Cable hooks and loop straps are preinstalled on the CMA. Perform this
step if you need to reinstall cable hooks and straps.
For best results, place three cable straps (1), evenly spaced, on the rear-facing
6.
side of the CMA arm (2), and three cable straps on the side of the CMA nearest
the controller.
