Disconnecting an RJ-45 Cable
Use the following procedure to properly disconnect an RJ-45 cable.
Using your index finger, press down fully on the RJ-45 release tab. Be sure the tab
1.
is fully disengaged from the port.
Using your thumb and middle finger, apply a slight downward pressure while
2.

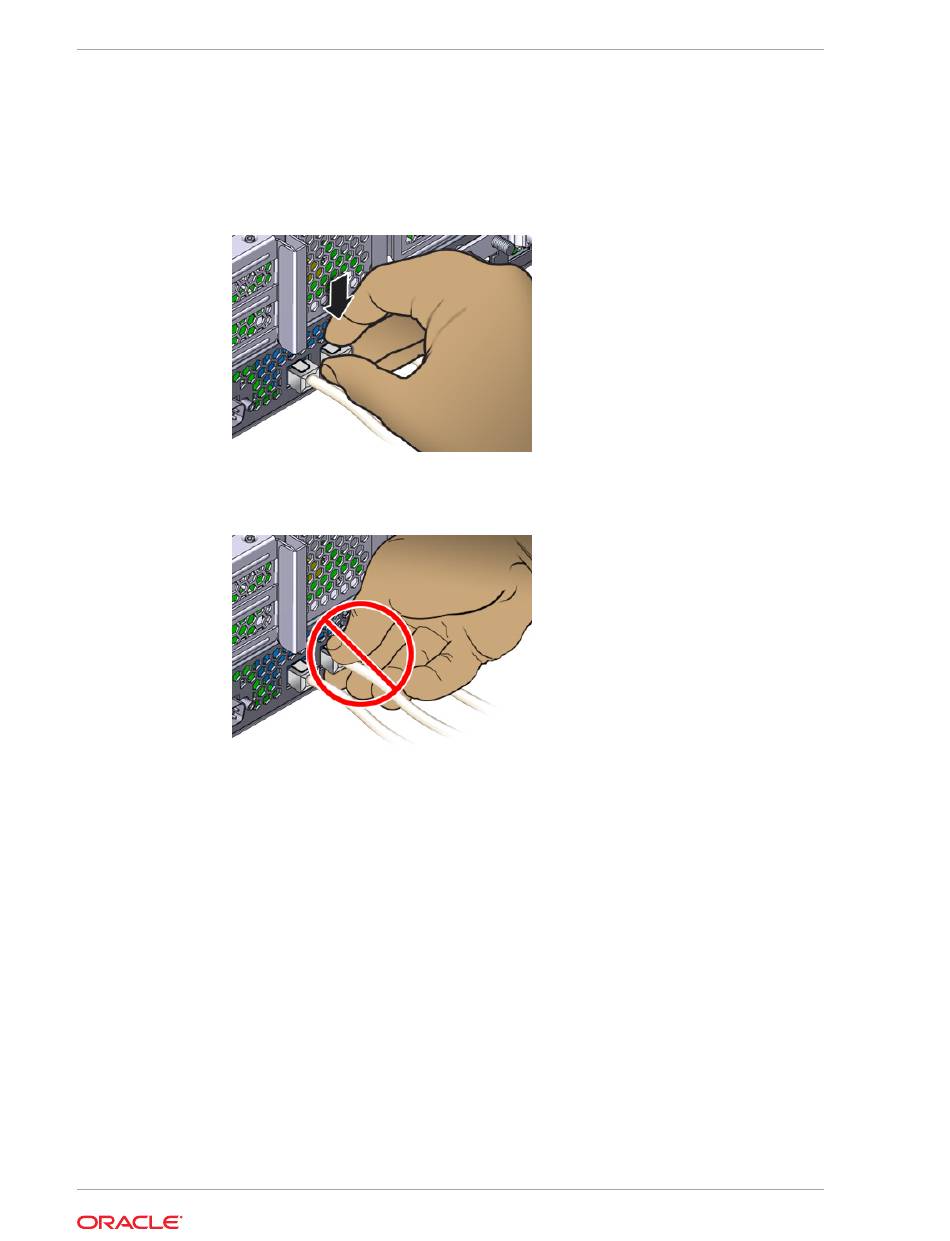

pulling the plug out of the port. Do not pull the plug upward or pinch the release
tab with your fingers below the plug, as shown in the following illustration.
Cabinet Configuration Guidelines
This section contains guidelines for properly placing and connecting the disk shelves.
Cabinet Configuration
•
For safety reasons, mount the heaviest equipment, typically disk shelves, at the
bottom of the cabinet. Refer to the appropriate Oracle Safety and Compliance
Guide for rack-mounting guidelines.
•
To best prepare for cabling controllers to disk shelves, now and in the future,
mount controllers in the middle of the cabinet. This also allows for optimal air
circulation, whether in a floor- or ceiling-cooled environment.
•
Do not remove cabinet panels to run cables between cabinets.
Load Distribution
•
Balance the number of disk shelves across the disk chains in your system.
Chapter 2
Cabinet Configuration Guidelines
2-4
