Part 3.14: EEPROM and Temperature sensor

The AXU3EG Fpga development board has an EEPROM onboard. The
model of the EEPROM is 24LC04, and the capacity is: 4Kbit (2 * 256 * 8bit),
which is connected to the PS terminal through the IIC bus.
A high-precision, low-power, digital temperature sensor chip is installed on
the AXU3EG FPGA development board, and the model is LM75 from ON
Semiconductor. The temperature accuracy of the LM75 chip is 0.5 degrees.
The EEPROM and temperature sensor are mounted on the Bank500 MIO

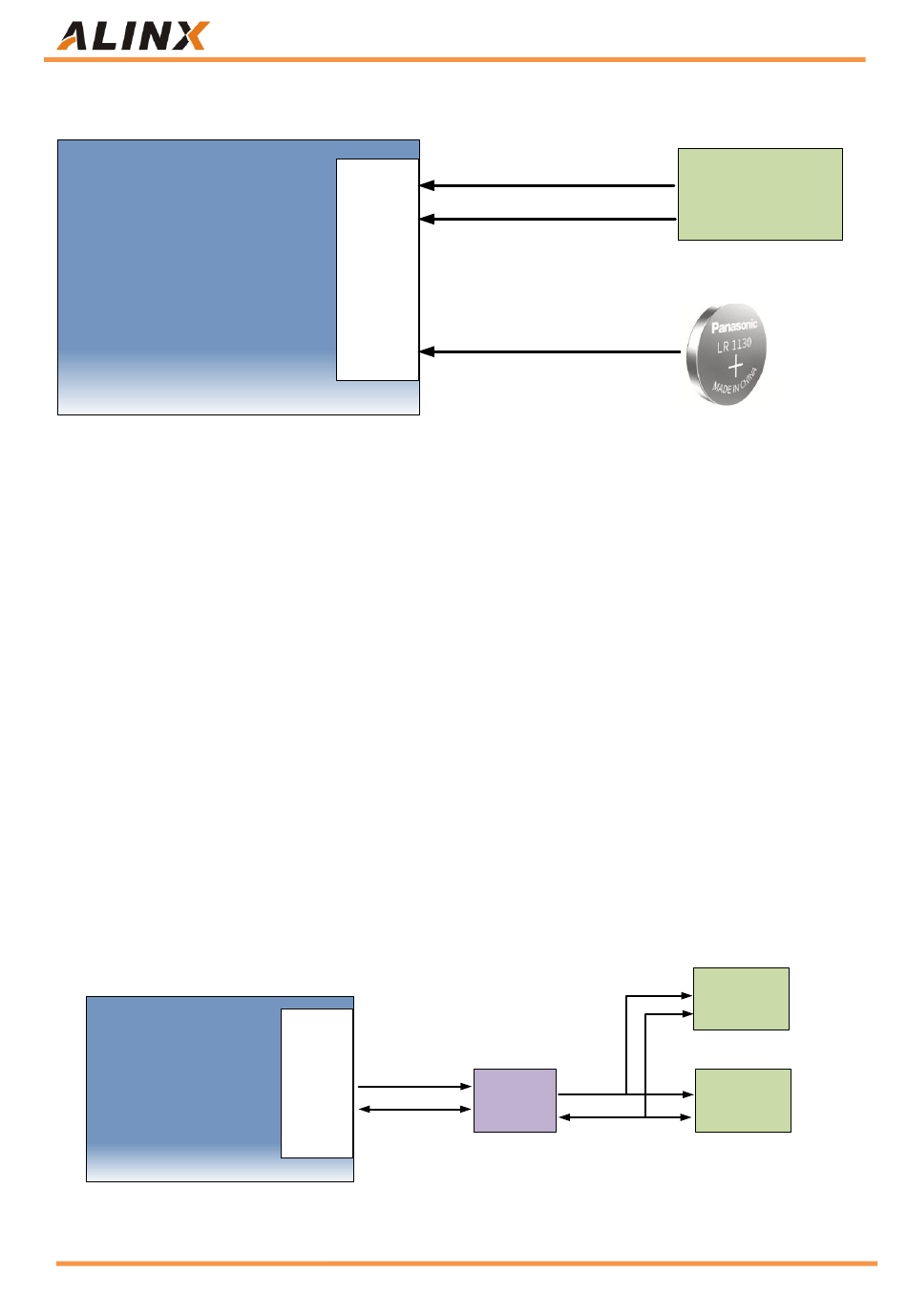

of ZYNQ UltraScale+ through the I2C bus. Figure 3-14-1 is the schematic
diagram of EEPROM and temperature sensor
U1
ZYNQ
Ultra
Scale+
Figure 3-14-1: EEPROM and Sensor connection diagram
51 / 56
ZYNQ Ultrascale + FPGA Board AXU2CG-E User Manual
BANK
503
Figure 3-12-1: RTC Schematic
BANK
PS_IIC1_SCL
500
PS_IIC1_SDA
VBAT_IN
U26
电平转
PS_IIC_B_SCL
换
PS_IIC_B_SDA
Y2
无源晶振
32.768Khz
BT1
U27
LM75
U25
EEPROM
