Part 3: Carrier Board

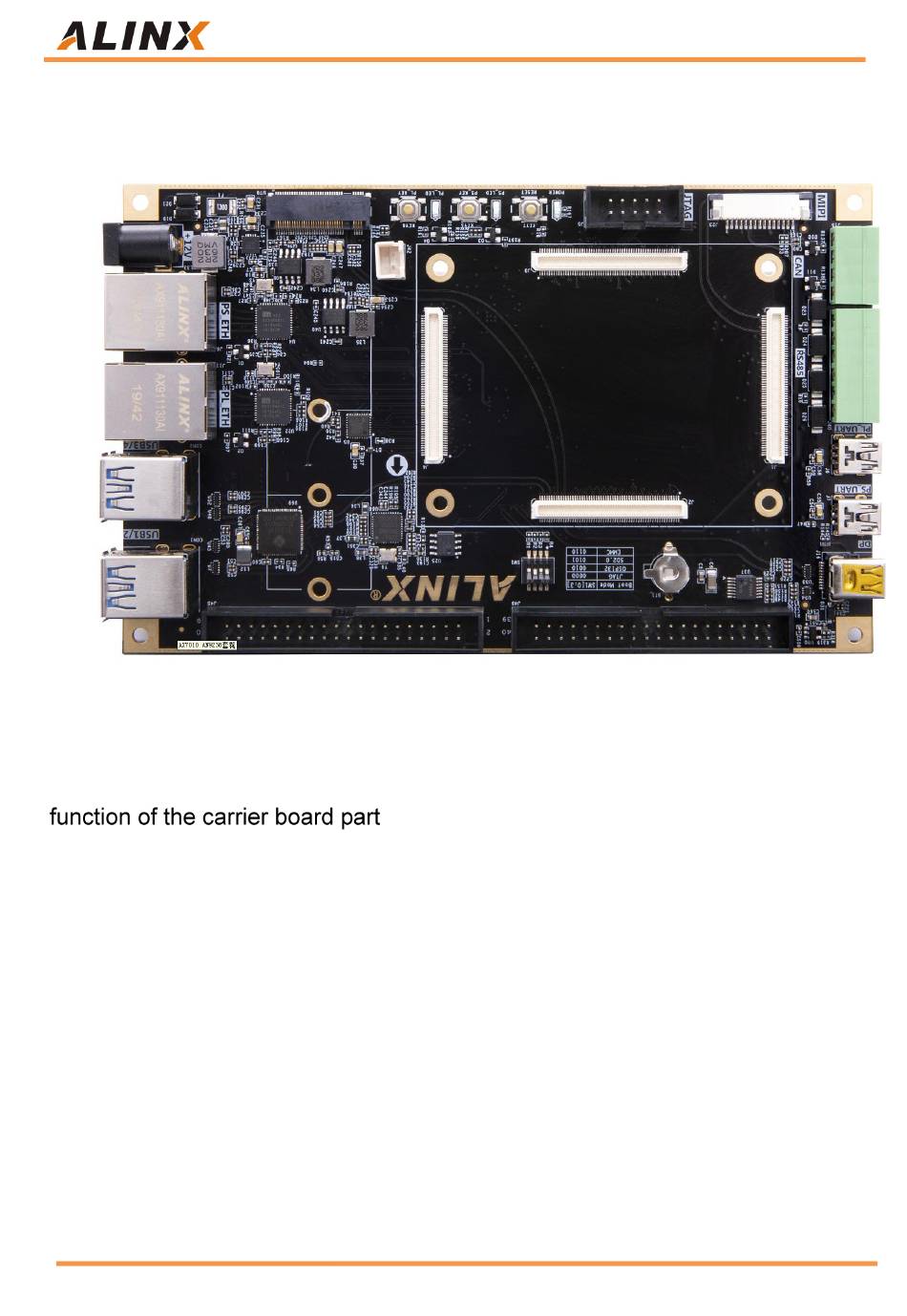

Part 3.1: Carrier Board Introduction

Through the previous function introduction, you can understand the
 1-Channel M.2 interface
 1-Channel DP output interface
 4 USB 3.0 Interfaces
 2-Channel 10/100M/1000M Ethernet RJ-45 interface
 2-Channel USB Uart Interfaces
 1-Channel Micro SD card slot
 1-Channel MIPI camera interface
 2-Channel 40-pin expansion port
 2-Channel CAN communication interfaces
 2-Channel 485 communication interfaces
