Tickets with Gap

Intermec EasyCoder F2 – Installation & Operation Ed. 2

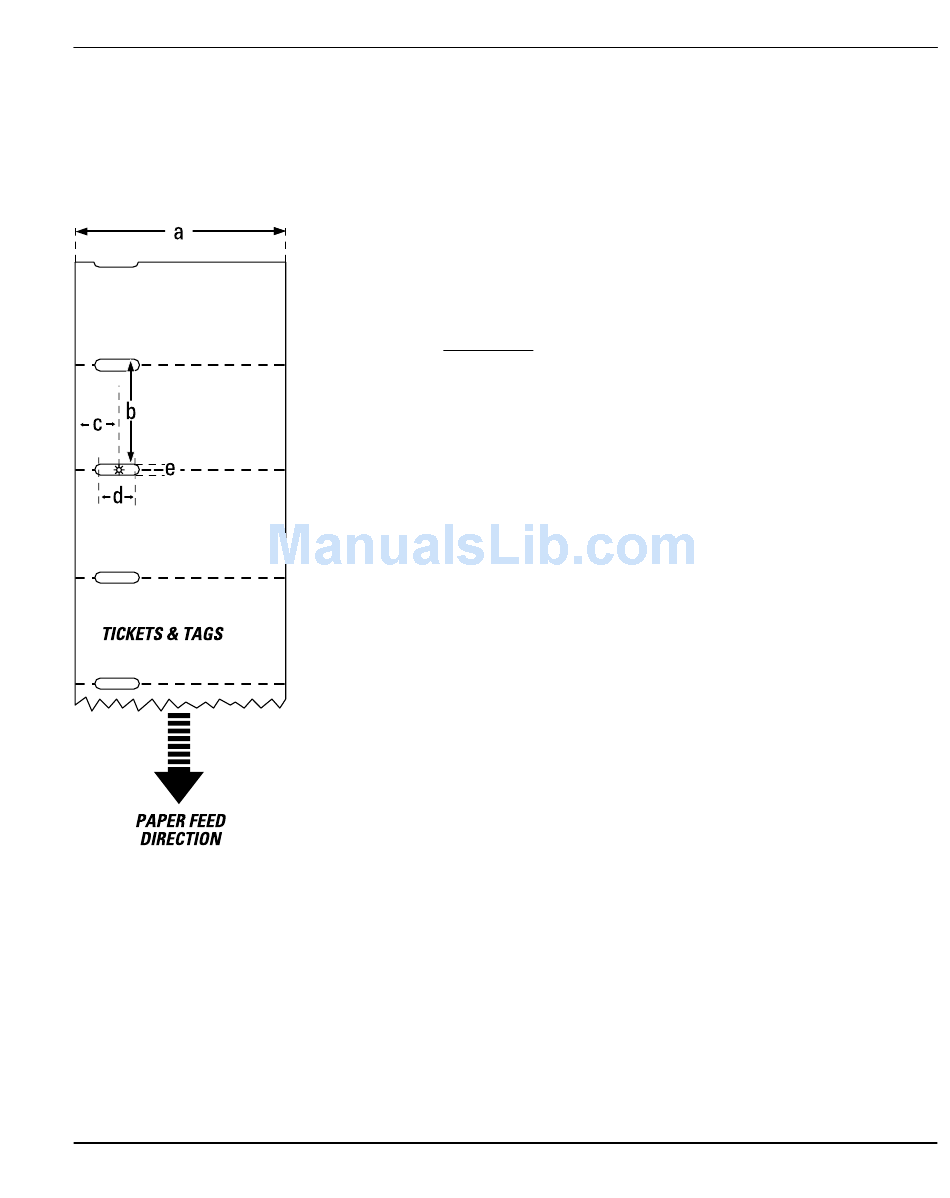

⇐ a ⇒ Web Width:
Maximum:
Minimum (standard):
Minimum (Quick-Load):
⇐ b ⇒ Copy Length:
Min. length between slots:
Max. length between slots:
Under favourable circumstances, a minimum ticket length down
to 4 mm (0.16") could be used. It requires the sum of the copy
length (b) and the detection slit height (e) to be larger than 7
mm (0.28"), that batch printing is used, and that no pull back of
the paper is performed. Intermec does not guarantee that such
short labels will work, but it is up to the user to test this in his
unique application.
⇐ c ⇒ LSS Detection Position:
Five fi xed positions (distance from inner edge of paper):
3 mm (.118")
8 mm (.315")
12 mm (.472")
16 mm (.639")
20 mm (.787")
⇐ d ⇒ Detection Slit Length:
The length of the detection slit (excluding corner radii) must be
minimum 2.5 mm (0.10") on either side of the LSS detection
position (e).
⇐ e ⇒ Detection Slit Height:
Maximum:
Recommended:
Minimum:
Media Type Setup:
• Ticket (w gaps)
Do not allow any perforation to break the edge of the web, as this
may cause the web to split, resulting in a paper jam.
Appendix 2 Media Specifi cations
60.0 mm (2.36")
25.0 mm (1.00")
40.0 mm (1.57")
8.0 mm (0.32")
depends on DRAM size
21.3 mm (0.83")
1.6 mm (0.06")
1.2 mm (0.05")
