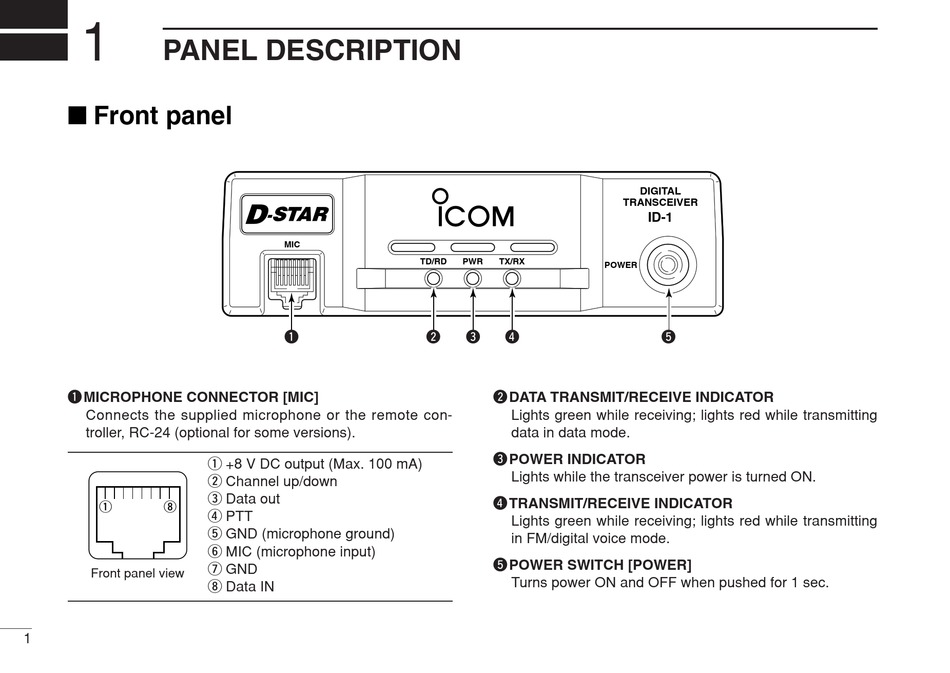

PANEL DESCRIPTION

I Front panel

q MICROPHONE CONNECTOR [MIC]
Connects the supplied microphone or the remote con-
troller, RC-24 (optional for some versions).
q i
Front panel view
1
MIC
q
q +8 V DC output (Max. 100 mA)
w Channel up/down
e Data out
r PTT
t GND (microphone ground)
y MIC (microphone input)
u GND
i Data IN
TD/RD PWR TX/RX
w e r
w DATA TRANSMIT/RECEIVE INDICATOR
Lights green while receiving; lights red while transmitting
data in data mode.
e POWER INDICATOR
Lights while the transceiver power is turned ON.
r TRANSMIT/RECEIVE INDICATOR
Lights green while receiving; lights red while transmitting
in FM/digital voice mode.
t POWER SWITCH [POWER]
Turns power ON and OFF when pushed for 1 sec.
DIGITAL
TRANSCEIVER
ID-1
POWER
t
