5

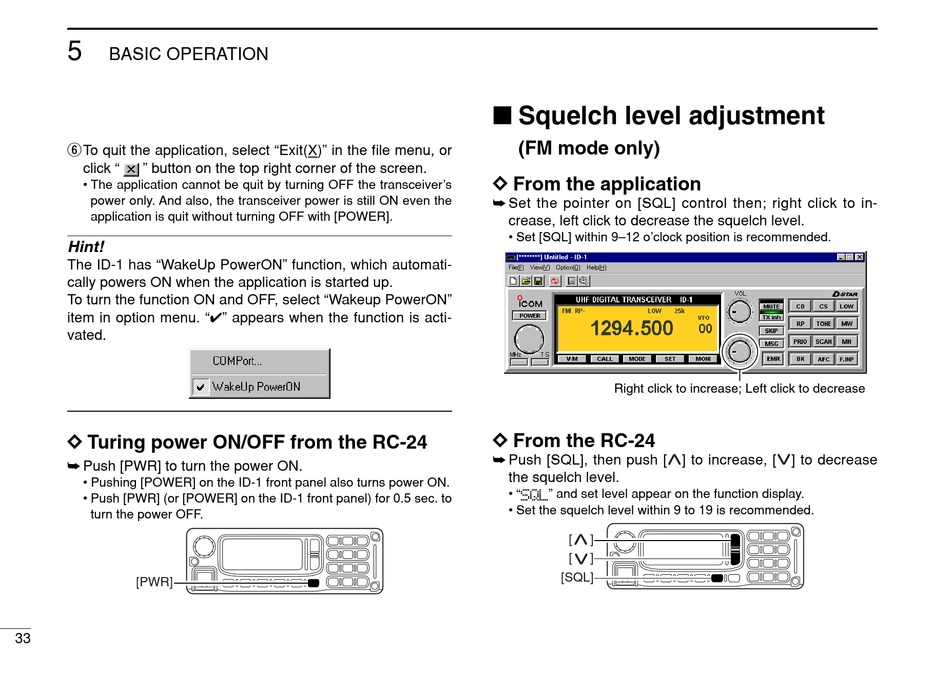

BASIC OPERATION
yTo quit the application, select "Exit(X)" in the file menu, or
click " " button on the top right corner of the screen.
• The application cannot be quit by turning OFF the transceiver's
power only. And also, the transceiver power is still ON even the
application is quit without turning OFF with [POWER].
Hint!
The ID-1 has "WakeUp PowerON" function, which automati-
cally powers ON when the application is started up.
To turn the function ON and OFF, select "Wakeup PowerON"
item in option menu. "✔" appears when the function is acti-
vated.
D D Turing power ON/OFF from the RC-24
➥ Push [PWR] to turn the power ON.
• Pushing [POWER] on the ID-1 front panel also turns power ON.
• Push [PWR] (or [POWER] on the ID-1 front panel) for 0.5 sec. to
turn the power OFF.
[PWR]
33
I Squelch level adjustment
(FM mode only)
D D From the application
➥ Set the pointer on [SQL] control then; right click to in-
crease, left click to decrease the squelch level.
• Set [SQL] within 9–12 o'clock position is recommended.
Right click to increase; Left click to decrease
D D From the RC-24
➥ Push [SQL], then push [ ] to increase, [ ] to decrease
the squelch level.
• " " and set level appear on the function display.
• Set the squelch level within 9 to 19 is recommended.
[ ]
[ ]
[SQL]
