8
REPEATER OPERATION— VOICE

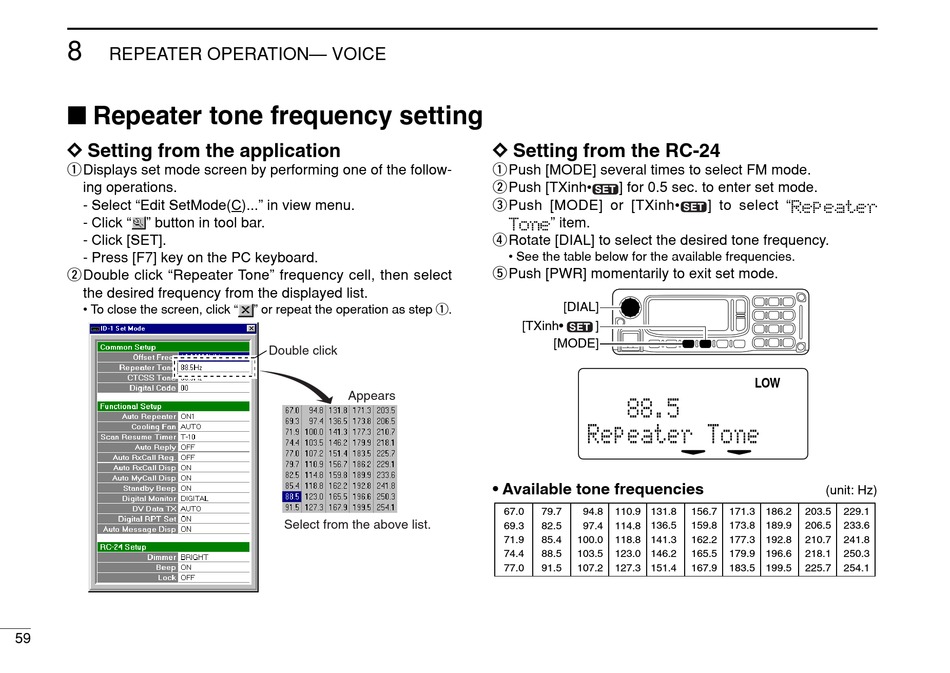

I Repeater tone frequency setting

D D Setting from the application
qDisplays set mode screen by performing one of the follow-
ing operations.
- Select "Edit SetMode(C)..." in view menu.
- Click " " button in tool bar.
- Click [SET].
- Press [F7] key on the PC keyboard.
wDouble click "Repeater Tone" frequency cell, then select
the desired frequency from the displayed list.
• To close the screen, click "
59
" or repeat the operation as step q.
Double click
Appears
Select from the above list.
D D Setting from the RC-24
q Push [MODE] several times to select FM mode.
w Push [TXinh•
] for 0.5 sec. to enter set mode.
ePush [MODE] or [TXinh•
" item.
r Rotate [DIAL] to select the desired tone frequency.
• See the table below for the available frequencies.
t Push [PWR] momentarily to exit set mode.
[DIAL]
[TXinh• ]
[MODE]
• Available tone frequencies
67.0 79.7 94.8 110.9 131.8
69.3 82.5 97.4 114.8 136.5
71.9 85.4 100.0 118.8 141.3
74.4 88.5 103.5 123.0 146.2
77.0 91.5 107.2 127.3 151.4
] to select "
LOW
(unit: Hz)
156.7 171.3 186.2 203.5 229.1
159.8 173.8 189.9 206.5 233.6
162.2 177.3 192.8 210.7 241.8
165.5 179.9 196.6 218.1 250.3
167.9 183.5 199.5 225.7 254.1
