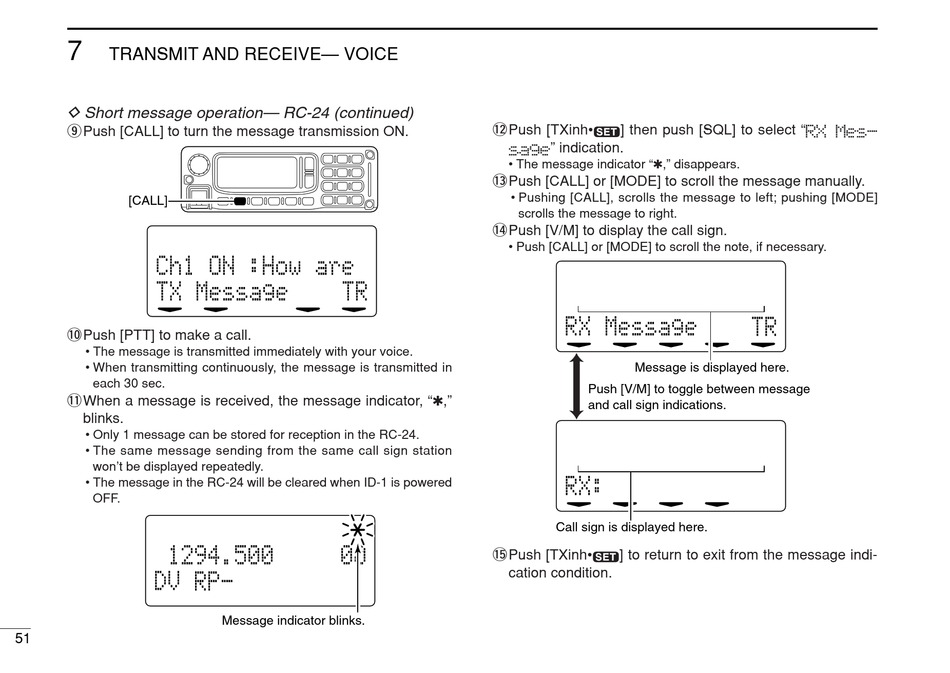

Icom ID-1 Instruction Manual page 58

7
TRANSMIT AND RECEIVE— VOICE
D Short message operation— RC-24 (continued)
o Push [CALL] to turn the message transmission ON.
[CALL]
!0 Push [PTT] to make a call.
• The message is transmitted immediately with your voice.
• When transmitting continuously, the message is transmitted in
each 30 sec.
!1 W hen a message is received, the message indicator, "✱,"
blinks.
• Only 1 message can be stored for reception in the RC-24.
• The same message sending from the same call sign station
won't be displayed repeatedly.
• The message in the RC-24 will be cleared when ID-1 is powered
OFF.
51
Message indicator blinks.
!2 P ush [TXinh•
] then push [SQL] to select "
" indication.
• The message indicator "✱," disappears.
!3 Push [CALL] or [MODE] to scroll the message manually.
• Pushing [CALL], scrolls the message to left; pushing [MODE]
scrolls the message to right.
!4 Push [V/M] to display the call sign.
• Push [CALL] or [MODE] to scroll the note, if necessary.
Message is displayed here.
Push [V/M] to toggle between message
and call sign indications.
Call sign is displayed here.
!5 P ush [TXinh•
] to return to exit from the message indi-
cation condition.
