1
PANEL DESCRIPTION

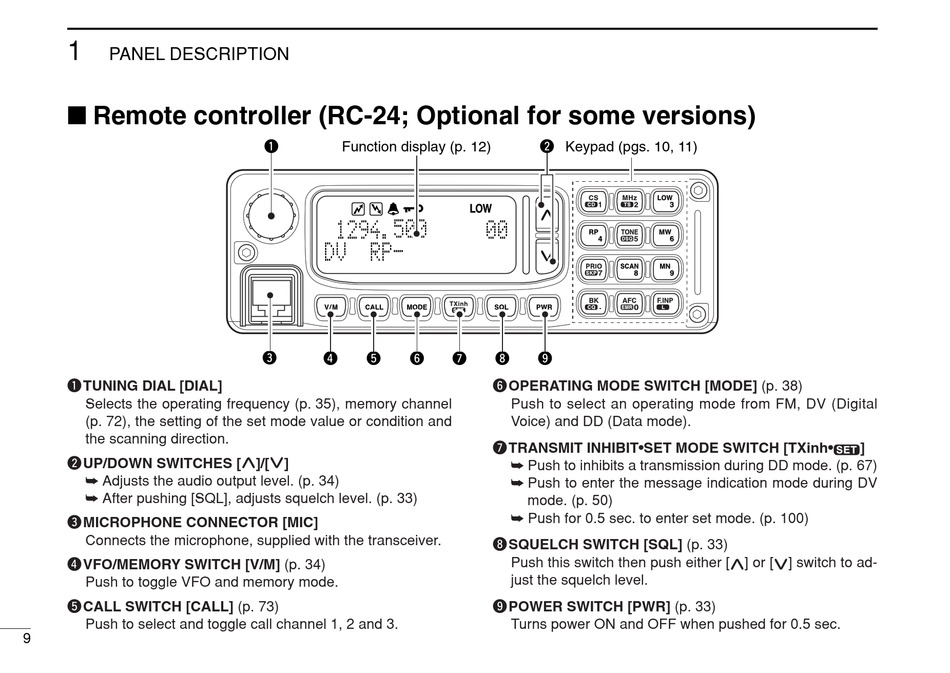

I Remote controller (RC-24; Optional for some versions)

q TUNING DIAL [DIAL]
Selects the operating frequency (p. 35), memory channel
(p. 72), the setting of the set mode value or condition and
the scanning direction.
w UP/DOWN SWITCHES [ ]/[ ]
➥ Adjusts the audio output level. (p. 34)
➥ After pushing [SQL], adjusts squelch level. (p. 33)
e MICROPHONE CONNECTOR [MIC]
Connects the microphone, supplied with the transceiver.
r VFO/MEMORY SWITCH [V/M] (p. 34)
Push to toggle VFO and memory mode.
t CALL SWITCH [CALL] (p. 73)
Push to select and toggle call channel 1, 2 and 3.
9
q
Function display (p. 12)
1294. 500
DV RP-
e r t y
w
Keypad (pgs. 10, 11)
00
u i o
y OPERATING MODE SWITCH [MODE] (p. 38)
Push to select an operating mode from FM, DV (Digital
Voice) and DD (Data mode).
u TRANSMIT INHIBIT•SET MODE SWITCH [TXinh•
➥ Push to inhibits a transmission during DD mode. (p. 67)
➥ Push to enter the message indication mode during DV
mode. (p. 50)
➥ Push for 0.5 sec. to enter set mode. (p. 100)
i SQUELCH SWITCH [SQL] (p. 33)
Push this switch then push either [ ] or [ ] switch to ad-
just the squelch level.
o POWER SWITCH [PWR] (p. 33)
Turns power ON and OFF when pushed for 0.5 sec.
]
