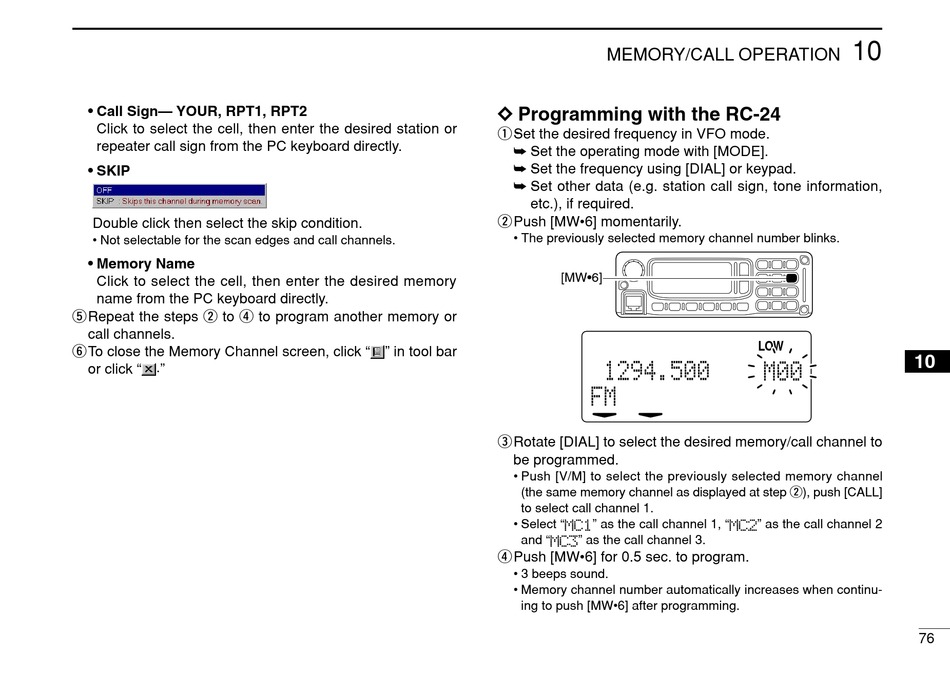

Icom ID-1 Instruction Manual page 83

• Call Sign— YOUR, RPT1, RPT2
Click to select the cell, then enter the desired station or
repeater call sign from the PC keyboard directly.
• SKIP
Double click then select the skip condition.
• Not selectable for the scan edges and call channels.
• Memory Name
Click to select the cell, then enter the desired memory
name from the PC keyboard directly.
tRepeat the steps w to r to program another memory or
call channels.
yTo close the Memory Channel screen, click " " in tool bar
or click " . "
MEMORY/CALL OPERATION
D D Programming with the RC-24
q Set the desired frequency in VFO mode.
➥ Set the operating mode with [MODE].
➥ Set the frequency using [DIAL] or keypad.
➥ Set other data (e.g. station call sign, tone information,
etc.), if required.
w Push [MW•6] momentarily.
• The previously selected memory channel number blinks.
[MW•6]
eRotate [DIAL] to select the desired memory/call channel to
be programmed.
• Push [V/M] to select the previously selected memory channel
(the same memory channel as displayed at step w), push [CALL]
to select call channel 1.
• Select " " as the call channel 1, "
and " " as the call channel 3.
r Push [MW•6] for 0.5 sec. to program.
• 3 beeps sound.
• Memory channel number automatically increases when continu-
ing to push [MW•6] after programming.
10
LOW
10
" as the call channel 2
76
