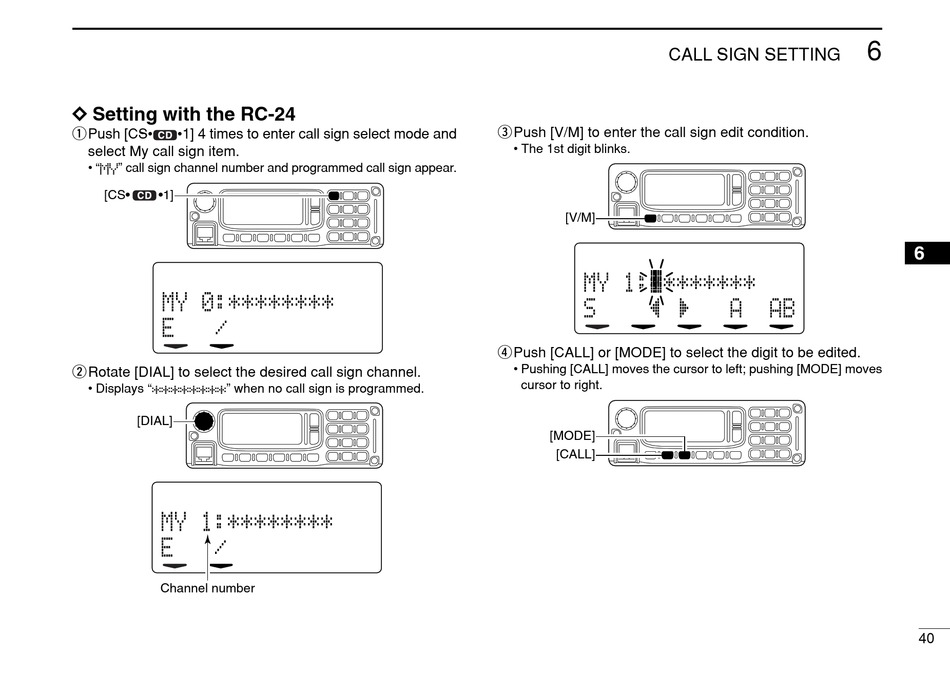

Icom ID-1 Instruction Manual page 47

D D Setting with the RC-24
qPush [CS•
•1] 4 times to enter call sign select mode and
select My call sign item.
• " " call sign channel number and programmed call sign appear.
[CS• •1]
w Rotate [DIAL] to select the desired call sign channel.
• Displays " " when no call sign is programmed.
[DIAL]
Channel number
CALL SIGN SETTING
e Push [V/M] to enter the call sign edit condition.
• The 1st digit blinks.
[V/M]
rPush [CALL] or [MODE] to select the digit to be edited.
• Pushing [CALL] moves the cursor to left; pushing [MODE] moves
cursor to right.
[MODE]
[CALL]
6
6
40
