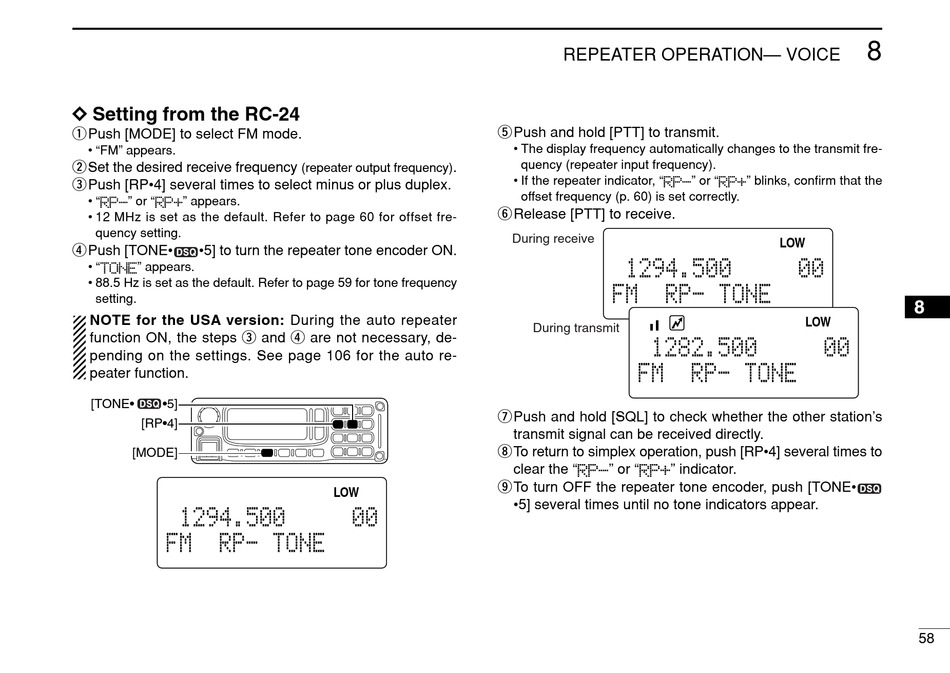

D D Setting from the RC-24
q Push [MODE] to select FM mode.
• "FM" appears.
wSet the desired receive frequency
e Push [RP•4] several times to select minus or plus duplex.
• " " or " " appears.
• 12 MHz is set as the default. Refer to page 60 for offset fre-
quency setting.
rPush [TONE•
•5] to turn the repeater tone encoder ON.
• " " appears.
• 88.5 Hz is set as the default. Refer to page 59 for tone frequency
setting.
NOTE for the USA version: During the auto repeater
function ON, the steps e and r are not necessary, de-
pending on the settings. See page 106 for the auto re-
peater function.
[TONE• •5]
[RP•4]
[MODE]
.
(repeater output frequency)
LOW
REPEATER OPERATION— VOICE
t Push and hold [PTT] to transmit.
• The display frequency automatically changes to the transmit fre-
quency (repeater input frequency).
• If the repeater indicator, "
offset frequency (p. 60) is set correctly.
y Release [PTT] to receive.
During receive
During transmit
uPush and hold [SQL] to check whether the other station's
transmit signal can be received directly.
iTo return to simplex operation, push [RP•4] several times to
clear the " " or " " indicator.
oTo turn OFF the repeater tone encoder, push [TONE•
•5] several times until no tone indicators appear.
8
" or " " blinks, confirm that the
LOW
LOW
8
58
