Adjusting Headlights; Adjusting Headlight Installation Position - Volkswagen up! 2012 Workshop Manual

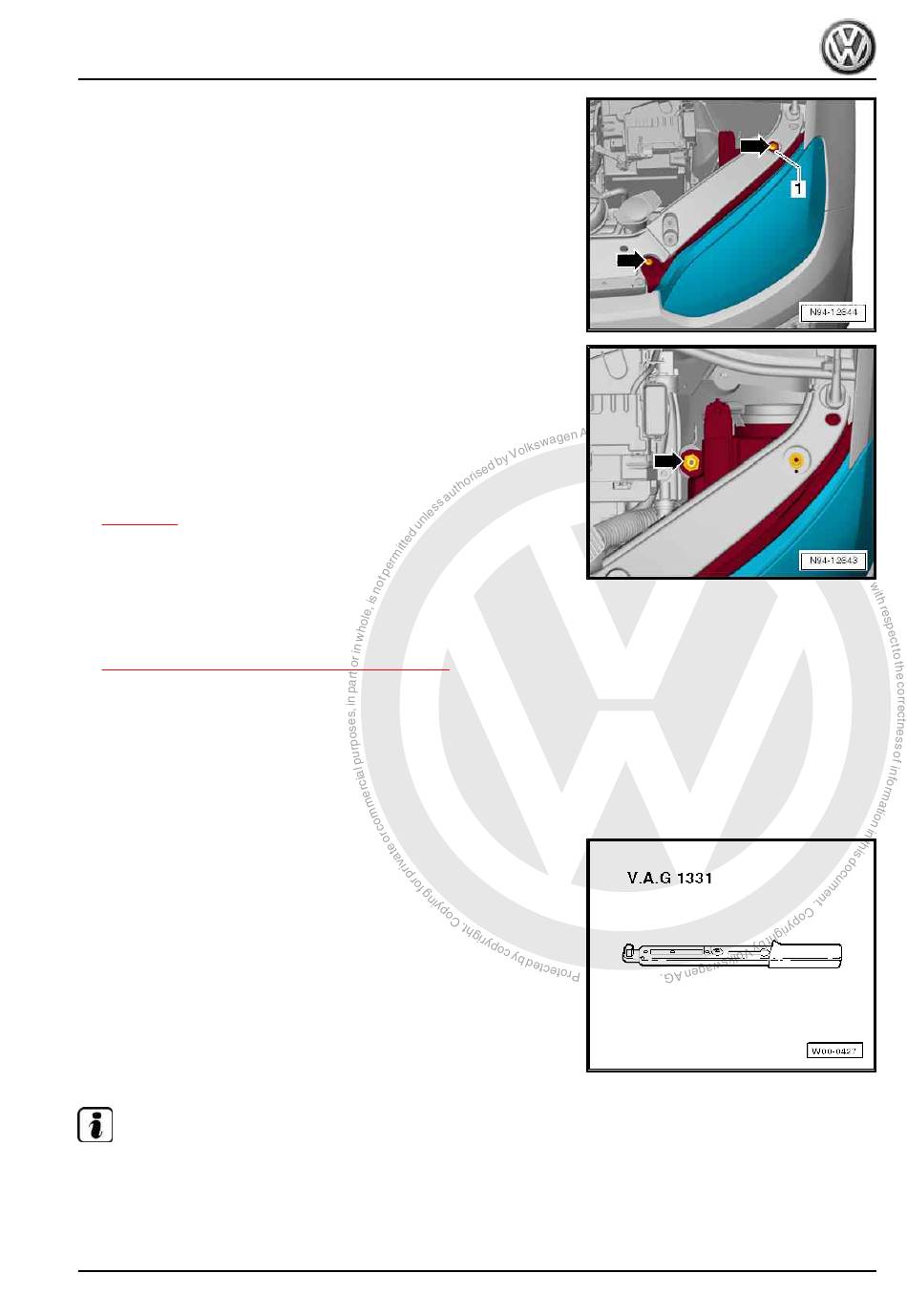

– Undo and remove inner bolt and upper bolt -arrows- and re‐
move adapter -1- under the upper bolt.
– Undo and remove rear bolt -arrow-.
– Remove headlight forwards out of body aperture.
Installing
Install in the reverse order of removal, observing the following:
– Check installation position so that shut lines/gaps around
headlight are even. If the shut lines/gaps around the headlight
are uneven, the installation position must be adjusted
⇒ page 67 .
– Check functions of headlight.
– Checking headlight settings and adjusting headlight if neces‐
sary "Maintenance manual" ⇒ Maintenance ; Booklet 35.1 ;
Descriptions of work
Specified torques
♦ ⇒ "1.1 Assembly overview - headlight", page 64
1.3

Adjusting headlights

Adjust headlights "Maintenance manual" ⇒ Maintenance ; Book‐
let 35.1 ; Descriptions of work .
1.4

Adjusting headlight installation position

Special tools and workshop equipment required
♦ Torque wrench - V.A.G 1331-
Note
If the shut lines/gaps around the headlight are uneven after
♦
installation, the installation position must be adjusted.
To adjust the installation position of the headlight, the front
♦
bumper does not have to be removed.
up! 2012 ➤
Electrical system - Edition 03.2017
67
1. Headlights
