Service Training
Self Study Program 890113
The all new 2012 Passat

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Passat 2012 and is the answer not in the manual?

Questions and answers

Related Manuals for Volkswagen Passat 2012

Summary of Contents for Volkswagen Passat 2012

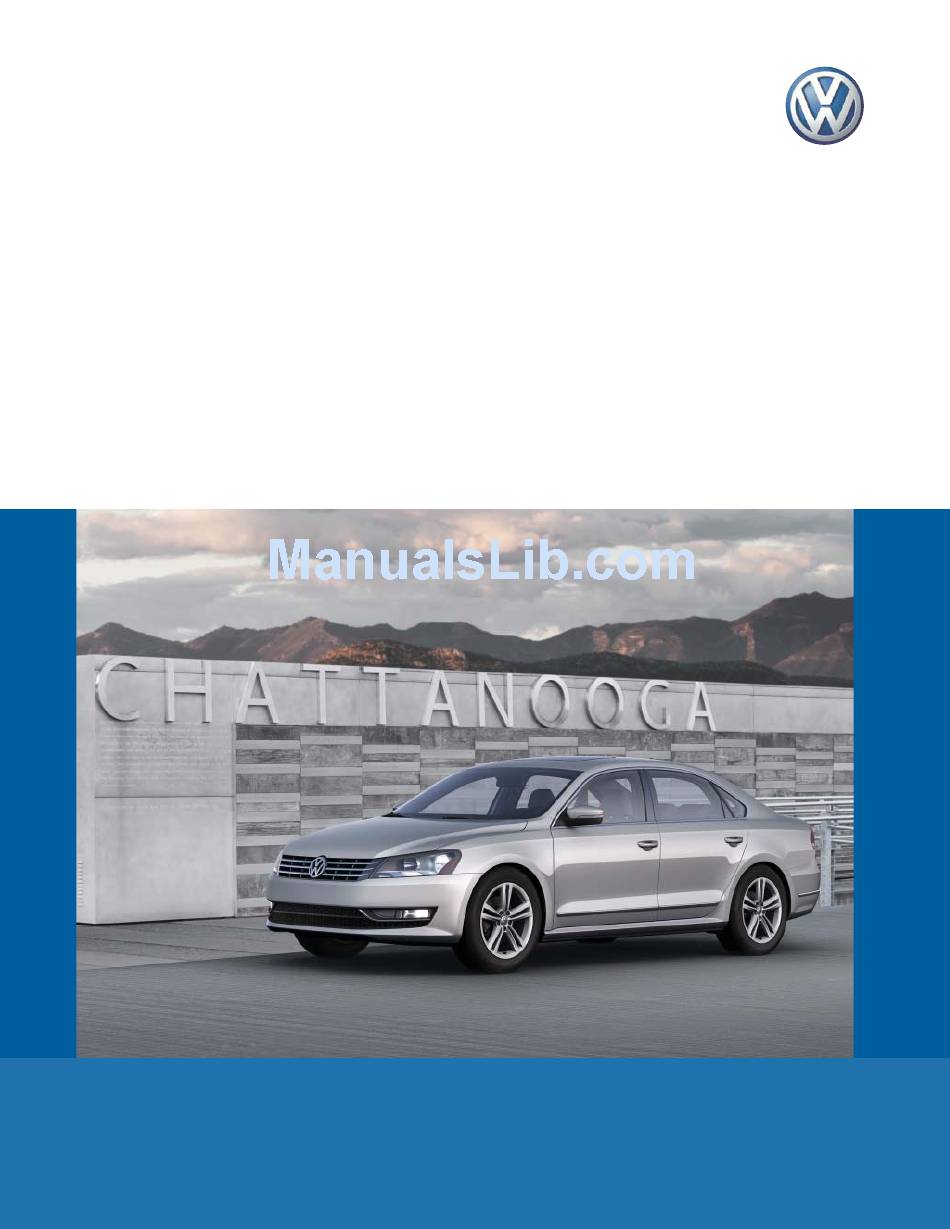

  • Page 1 Service Training Self Study Program 890113 The all new 2012 Passat...
  • Page 2 Volkswagen Group of America, Inc., its affi liated companies and its licensors. All rights are reserved to make changes at any time without notice.

  • Page 3: Table Of Contents

    Contents Introduction ..........1 Body .
  • Page 4 Page intentionally left blank...

  • Page 5: Introduction

    Highly effi cient gasoline and diesel engines supply ample power and fuel effi ciency. With its high level of quality, the new Passat is another advancement for Volkswagen. S488_045 The Passat images in this Self-Study Program (SSP) were provided by German media during early production.

  • Page 6: Technical Data

    Introduction Technical Data Exterior Dimensions and Weights S488_029 36.4in 110.4 in 44.8in 191.6 in 62.1 in 61.0 in 72.2 in Exterior dimensions Weights/further details Passat 2006 2012 Passat 2006 2012 Length 188.2 in 191.6 in Gross vehicle weight 4719 lb 4387 lb Width 71.7 in...
  • Page 7 Introduction Interior Dimensions and Volumes S488_033 39.1 in 70.7 in 15.9 ft 39.9in S488_037 Interior dimensions and volumes Passat 2006 2012 Passat 2006 2012 Luggage compartment volume 14.2 ft 15.9ft Interior length 70.7 in 70.7 in Height off rear lid (open) 69.1 in 69.5 in Interior length 2nd seat row...

  • Page 8: Body

    Body Body Structure The primary focus of body development increased body strength while reducing weight. This Passat is a completely new develoment when compared to the previous Passat. Modifi cations to Passat Sedan • Hood • Side panel • Rear lid •...
  • Page 9 Page intentionally left blank...

  • Page 10: Halogen Headlights

    Body Halogen Headlights On this headlight module, the low beam and high beam are designed as separate H7 headlights. The side light is integrated into the low beam headlight. Low Beam, H7 (55W) High Beam, H7 (55W) Side Light (5W) Turn Signal (24W) S488_013 S488_064...

  • Page 11: Tail Lights

    Body Tail Lights The tail lights of the 2012 Passat have a two-part design. One segment is attached to the rear fender and the other is attached to the trunk lid. Tail Light Refl ector (in trim) Reverse Light Brake Light Turn Signal (21W) Refl...

  • Page 12: Interior Equipment

    Body Interior Equipment Head Restraints with Adjustment The head restraint distance to the head can be Release adjusted using a release mechanism for maximum comfort and safety. S488_052 Front Storage Compartments Glove Compartment Storage Under AC Controls Door Compartment S488_068 Storage in Center Console Storage in Center Armrest Small Glove Compartment by...

  • Page 13: Rear Storage Compartments

    Body Rear Storage Compartments Storage Pockets on Rear Door Compartment Back of Front Seats S488_066 Storage Compartment in Center Armrest Beverage/Can 12 volt Connection Holder...

  • Page 14: Occupant Protection

    Occupant Protection Safety Equipment The new Passat has six standard airbags as well as pyrotechnic seat belts: • Driver and front passenger airbag • Side airbags at front • Curtain airbags for front and rear passengers • Front inner and outer seat belt pyrotechnic igniters •...

  • Page 15: Engines

    Engines 2.5L Engine The 2.5L engine was fi rst used in the 2005 Jetta. It has been optimized for the 2012 Passat Technical Features: • Variable oil pump for the lowering of the fuel consumption • Exhaust manifold redesigned to reduce weight •...
  • Page 16 Engines 3.6L FSI Engine with 4-Valve Technology The 3.6L FSI engine with 4-valves per cylinder is based on the VR engine series. Many effi ciency technologies are used on this engine. Technical features • Oil pump output reduced and oil pressure lowered to 3.6 bar •...
  • Page 17 Engines New Features of 3.6L FSI Engine Several areas of this engine were improved to reduce fuel consumption and CO emissions. Duo-Centric Oil Pump The entire oil circuit of the engine was improved, allowing for the reduction of oil pump output from 5.7 bar to 3.6 bar.
  • Page 18 Engines Chain Tensioner The lower chain tensioner has been redesigned to work without engagement at a lower oil fl ow rate (originally 0.86l/min, now 0.04l/min). Removing the locking mechanism made it possible to reduce the chain forces. The spring serves to pretension the chain during cold starting. The ram fi lls the void in the hollow control plunger and gives a faster response from the chain tensioner when oil pressure is building.
  • Page 19 Engines Camshaft Adjuster Range of Adjustment 32° The exhaust camshaft adjuster allows for a 32° range of crankshaft adjustment. At idle, less exhaust gas fl ows back into the inlet port, eliminating residual gas compression. This makes the engine run smoother and reduces consumption at idling speed by 3-5%.
  • Page 20 Engines 2.0L TDI CR Engine The second generation 2.0l TDI CR engine is used in the 2012 Passat. This engines is revised from the fi rst generation. S488_207 2nd Generation 2.0l TDI CR Engine Features Common rail fuel injection system with solenoid S488_206 valve controlled injectors has high injection pressures and can deliver multiple injections per stroke.
  • Page 21 Engines Technical data Torque and Power Diagram Engine Code CFFB Type 4-cylinder in-line engine Displacement 120 in (1968 cm Bore 3.19 in (81 mm) Stroke 3.75 in (95.5 mm) Valves per Cylinder Compression Ratio 16.5:1 Maximum Output 140 hp (103 kW) at 4200 rpm Maximum Torque 236 lb/ft at 1750 to 2500 rpm Engine Management...
  • Page 22 Engines Fuel System for TDI Engines The overview shown represents the fuel system of the 2.0l TDI engine. 1 - Transfer Fuel Pump G6 Builds pressure in the fuel supply line. 2 - Fuel Filter Keeps away diesel fuel impurities from the injection system components.
  • Page 23 Engines 6 - Fuel Pressure Regulator Valve N276 Sets the fuel pressure in the high pressure range. 7 - High Pressure Accumulator (rail) Keeps the fuel required for injection under high pressure for all cylinders. 8 - Fuel Pressure Sensor G247 Determines the current fuel pressure in the high pressure range.
  • Page 24 Engines Transfer Fuel Pump G6 The fuel pump G6 now generates enough pressure for the low pressure fuel system from the tank to the engine. This allows for the elimination of the electric pressure pump in the supply line of the low pressure fuel system of the 2.0 l TDI CR engine.
  • Page 25 Engines Selective Catalyst Reduction The 2012 Passat uses a Selective Catalyst Reduction (SCR) system for treatment of the exhaust gases. The system is very similar in components and function to the 2011 Touareg 3.0L TDI Engine. When the exhaust gases exit the engine, they pass through the oxidation catalyst and diesel particulate fi lter. This component converts gases and traps the soot in the oil.
  • Page 26 Engines Selective Catalyst Reduction A urea solution is injected into the exhaust stream to act as the catalyst for Slelective Catalyst Reduction (SCR). This catalyst is stored in 18-liter (4.8 gallon) tank under the vehicle. The catalyst is refi lled by opening a cover located on the right side of the luggage compartment. It has a special adapter so only certain fi...
  • Page 27 Page intentionally left blank...

  • Page 28: Transmission

    Transmission Dual Clutch Gearbox with Freewheel Function Steady Consumption Overrun Cut-Off Overrun Cut-Off Coasting S488_240 Distance [m] Dual clutch transmission without freewheel function Dual clutch transmission with freewheel function The 6-speed dual clutch transmission 02E in the 2012 Passat has a freewheel function. The purpose of the freewheel function is to isolate the engine from the gearbox in overrun, opening the dual clutch.
  • Page 29 Transmission Overview of Transmissions • MQ250-5F 02S 5-Speed Manual Transmission • Based on the 0A4 • Longer shafts with additional bearings, additional gear pair, new longer housing lid made from aluminium • No speedometer sender • Torque capacity up to 250 Nm •...

  • Page 30: Running Gear

    Running Gear Overview The 2012 Passat offers the highest level of driving comfort because of its running gear confi guration. The running gear is based on the running gear of the 2006 Passat. • Lightweight McPherson Strut Front Suspension • ESP/ABS TRW 450M...
  • Page 31 Running Gear • Four-Link Rear Suspension S488_027 • Tire Pressure Monitoring Using ABS Signals...
  • Page 32 Page intentionally left blank...

  • Page 33: Electrical Systems

    Electrical Systems Electrical System Overview The 2012 Passat is equipped with state-of-the-art technology: • KESSY with separate ignition and engine start button • Control Module for Terminal and Engine Start Control System J942 S488_051...

  • Page 34: System Overview

    Electrical Systems System Overview The following diagram represents a fully-equipped 2012 Passat for the North American region. 16-Pin J623 J587 Connector (DLC) T16 J245 J234 J533/J520 Powertrain CAN data bus J285/J362 Convenience CAN data bus J506/R Infotainment CAN data bus Extended CAN data bus LIN data bus J650...
  • Page 35 Electrical Systems Steering Angle Sensor G197 Compass Magnetic Field Sensor G397 Rain/Light Recognition Sensor J104 ABS Control Module J136 Memory Seat/Steering Column Adjustment Control Module J217 Transmission Control Module J234 Airbag Control Module J245 Power Sunroof Control Module J255 Climatronic Control Module J285 Instrument Cluster Control Module J362 Anti-theft Immobilizer System Control Module J743...

  • Page 36: Radio, Navigation And Telephone

    Radio, Navigation and Telephone RCD 310 The radio capabilities are listed following the radio identifi cation images. RCD 510/Premium 8 The buttons displayed on these radios may change.
  • Page 37 Radio, Navigation and Telephone RNS 315 RNS 510...
  • Page 38 Radio, Navigation and Telephone Feature RCD 310 Premium 8 RNS 315 RNS 510 Optical Drive Type CD Changer Function 6-Disk Internal Hard Drive Color Display 6.5” 800 X 480 5” 400 X 240 6.5” 800 X 480 Pixel Pixel Pixel Touch Screen √...
  • Page 39 Radio, Navigation and Telephone Universal Cellphone Preparation 9W7 Every 2012 Passat will be equipped with the 9W7 cellular phone preparation package. This allows for Bluetooth communication between certain Bluetooth-enabled phones and the Cell Phone Operating Electronics Control Module J412. Function •...

  • Page 40: Heating And Air Conditioning

    Heating and Air Conditioning 2-zone Climatronic The 2-zone Climatronic features an AC unit with two temperature fl aps that can be adjusted independently of each other. This allows the interior temperatures on the driver and front passenger sides to be selected separately.
  • Page 41 Page intentionally left blank...
  • Page 42 Page intentionally left blank...

  • Page 43: Knowledge Assessment

    The Knowledge Assessment may or may not be required for Certifi cation. You can fi nd this Knowledge Assessment at: www.vwwebsource.com For Assistance, please call: Volkswagen Academy Certifi cation Program Headquarters 1-877-791-4838 (8:00 a.m. to 8:00 p.m. EST) Or, E-mail:...
  • Page 44 Volkswagen Group of America 2200 Ferdinand Porsche Drive Herndon, VA 20171 April 2011...
