14. The winch can be operated at this point. The DVC10
Monitor window can be left running for diagnostics
and troubleshooting.
15. Click the "Close Window" button on the right of the
screen to bring up the Main Menu window to exit the
Monitor (see Figure 3-32). Select the Quit button to
exit the Program Loader.
16. Detach the communication cable from the winch
harness and insert the plug into the harness
diagnostic connector.
17. The winch is now ready for use. It is recommended
that the winch be tested without load for proper
function prior to returning the winch to service.

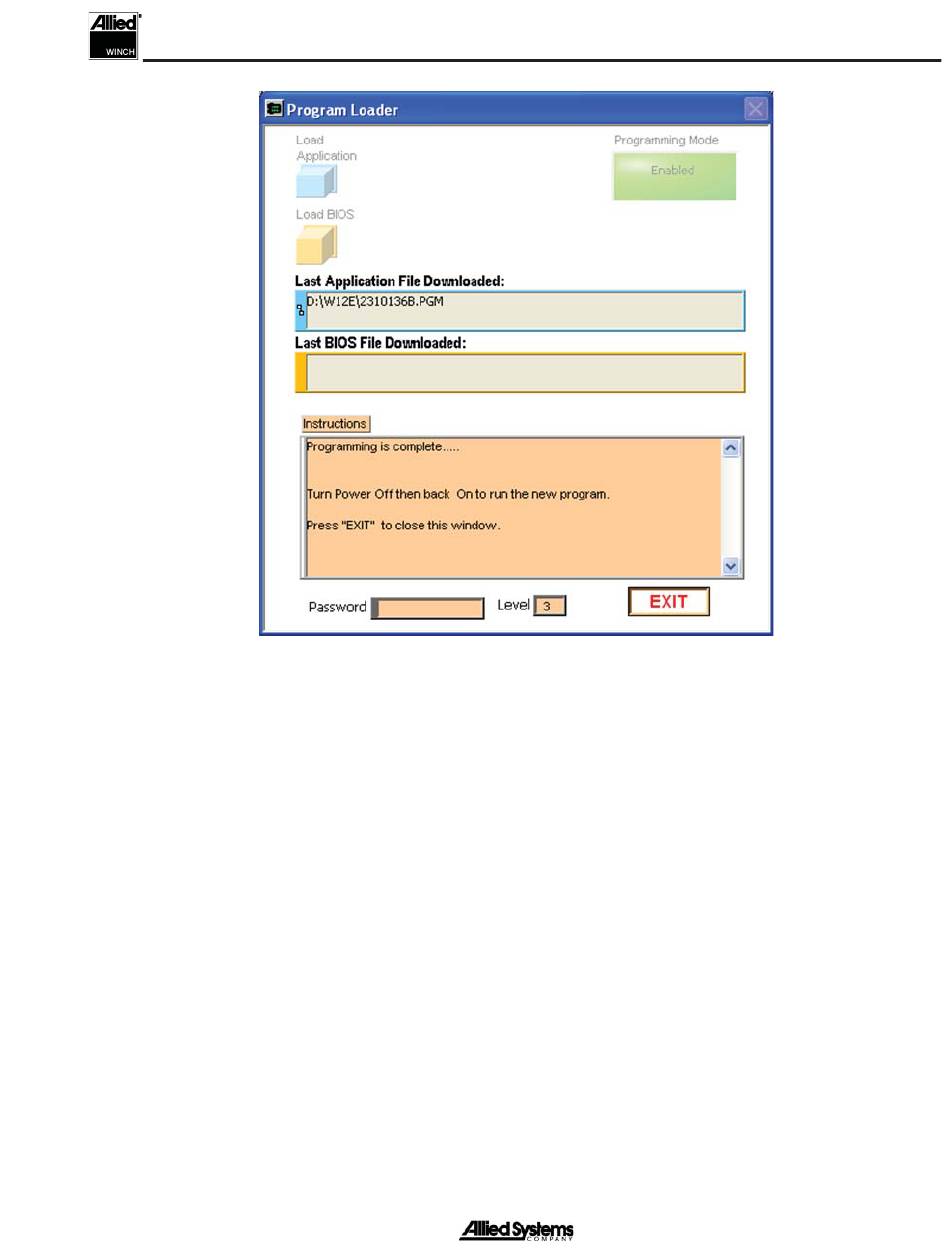

Figure 3-31 Program Loading Complete
Section 3
3 - 43
