11. Install control lever assembly per mounting kit
instructions.
12. Attach push-pull cable(s) to control lever assembly.
13. Attach cable bracket(s) to winch. Do not tighten
fasteners at this time.
14. Attach push-pull cable(s) to control valve clevis and
freespool, then tighten cable bracket(s) to winch.

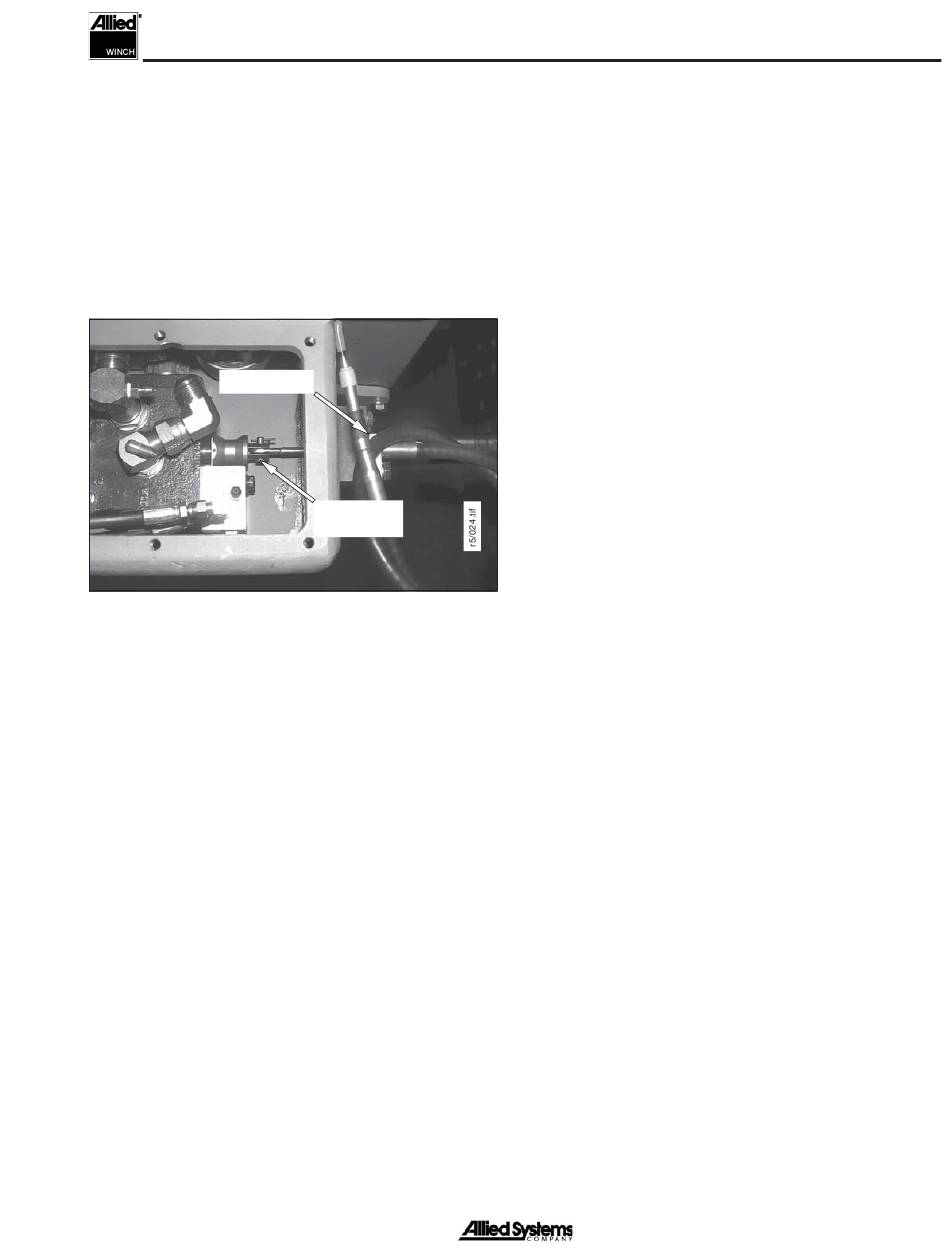

Cable Anchor
Valve Spool
Clevis
15. Fill unit with oil.
16. Adjust control cable and check hydraulic pressure
settings as described in subsections of Service in
Sections 2 and 3.
17. After winch installation, remove top cover and pry
pinion towards tractor with a prybar to ensure the
pinion is not jammed against the ring gear. This
avoids excessive noise during winch operation.
NOTE: Pressure checks in accordance with Figures
2-22 and 3-18 should be taken with hydraulic oil at
operating temperature.
