Gear Train (Ratios #1 - #7)
The gear train (Figure 1-6) consists of:
1. a PTO shaft assembly
2. a clutch shaft assembly
3. a brake shaft assembly
4. an intermediate shaft assembly; and
5. a drum shaft assembly
BRAKE-ON (Neutral)

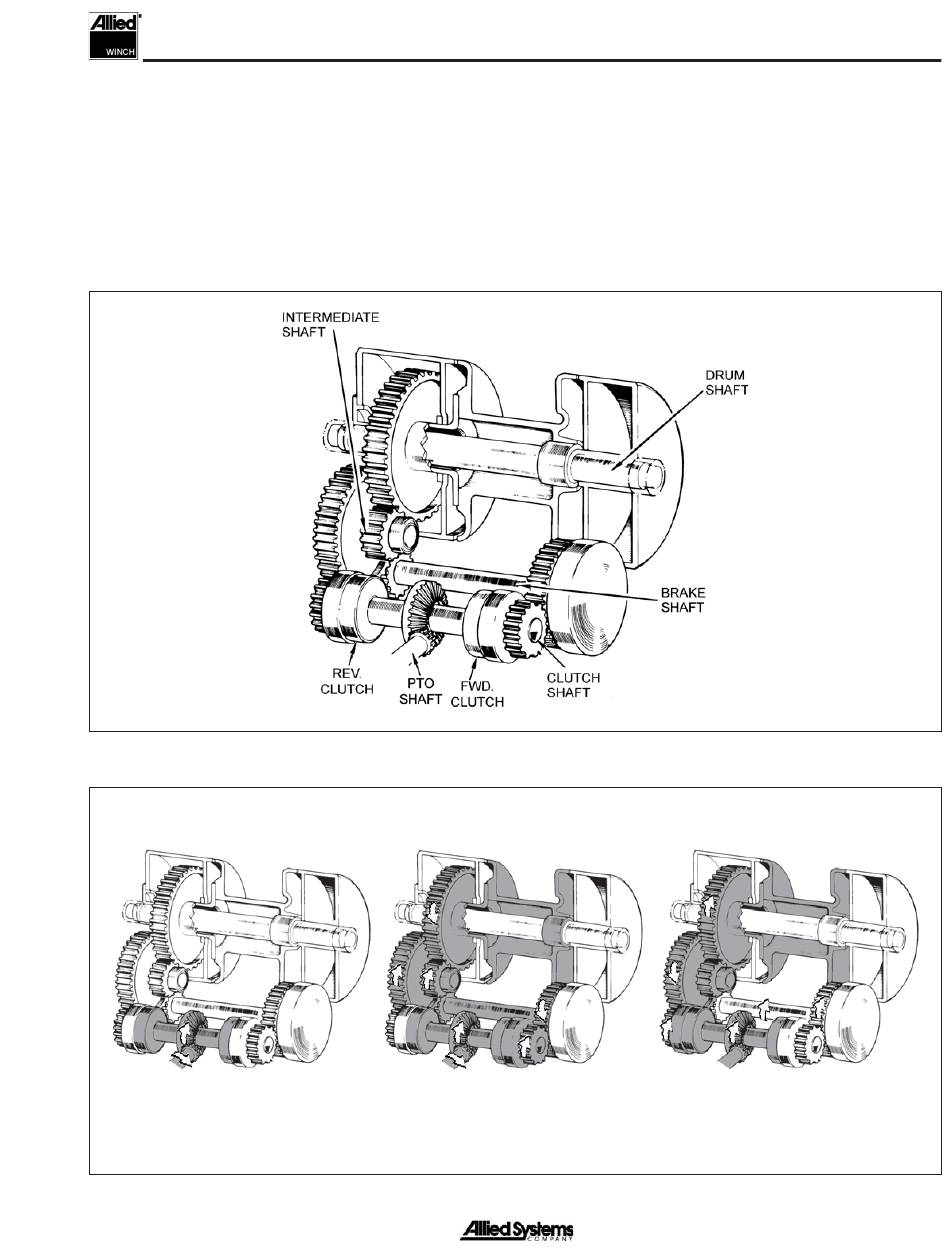

Figure 1-6 Gear Train (Ratios #1 - #7 only)
LINE-IN (Forward)
Figure 1-7 Gear Train Rotation Torque Transfer (Ratios #1 - #7 only)
Torque transfer during operation is shown in Figure 1-7.
NOTE: PTO rotation direction is determined by
standing behind tractor and looking forward at the
PTO shaft entering the winch case.
LINE-OUT (Reverse)
