General
Manufactured By
A = Allied Systems Company
(no "A" = Hyster Company)
Winch Model
W8L = Standard
K8L = Special Design (Contact Factory)
Type Drive
P = Power Controls
E = Electronic Controls
X = Direct Drive (Gear Drive)
Gear Ratio
Code = Forward Ratio/Reverse Ratio
1 = 49.8:1/19.9:1
2 = 71.6:1/28.6:1 (95.4/38.1 - K50)
3 = 94.0:1/37.6:1 (125/50 - K50)
4 = 84.0:1/33.6:1 (Non-Current)
5 = 90.1:1/36.0:1 (Non-Current)
6 = 68.8:1/27.5:1 (49.8/19.9 Winch x 1.38 Gearbox)
7 = 47.1:1/31.1:1
8 = 125:1/190:1 (94/143 Winch x 1.33 Gearbox)
9 = 94:1/102:1
10 = 125:1/136:1 (94/102 Winch x 1.33 Gearbox)
11 = 85.4:1/34.1:1 (49.8/19.9 Winch x 1.71 Gearbox)
Tractor Make Model and Starting Tractor Serial Number Where Applicable
A
C
O
Fiat-Hitachi/
D
E
New Holland
48
50
16B PS
S/N 10301 & UP
51

16B DD
S/N 10301 & UP
52

AB/BD 20 PS,
20B FL20
53

1 - 2
Unit Identifi cation

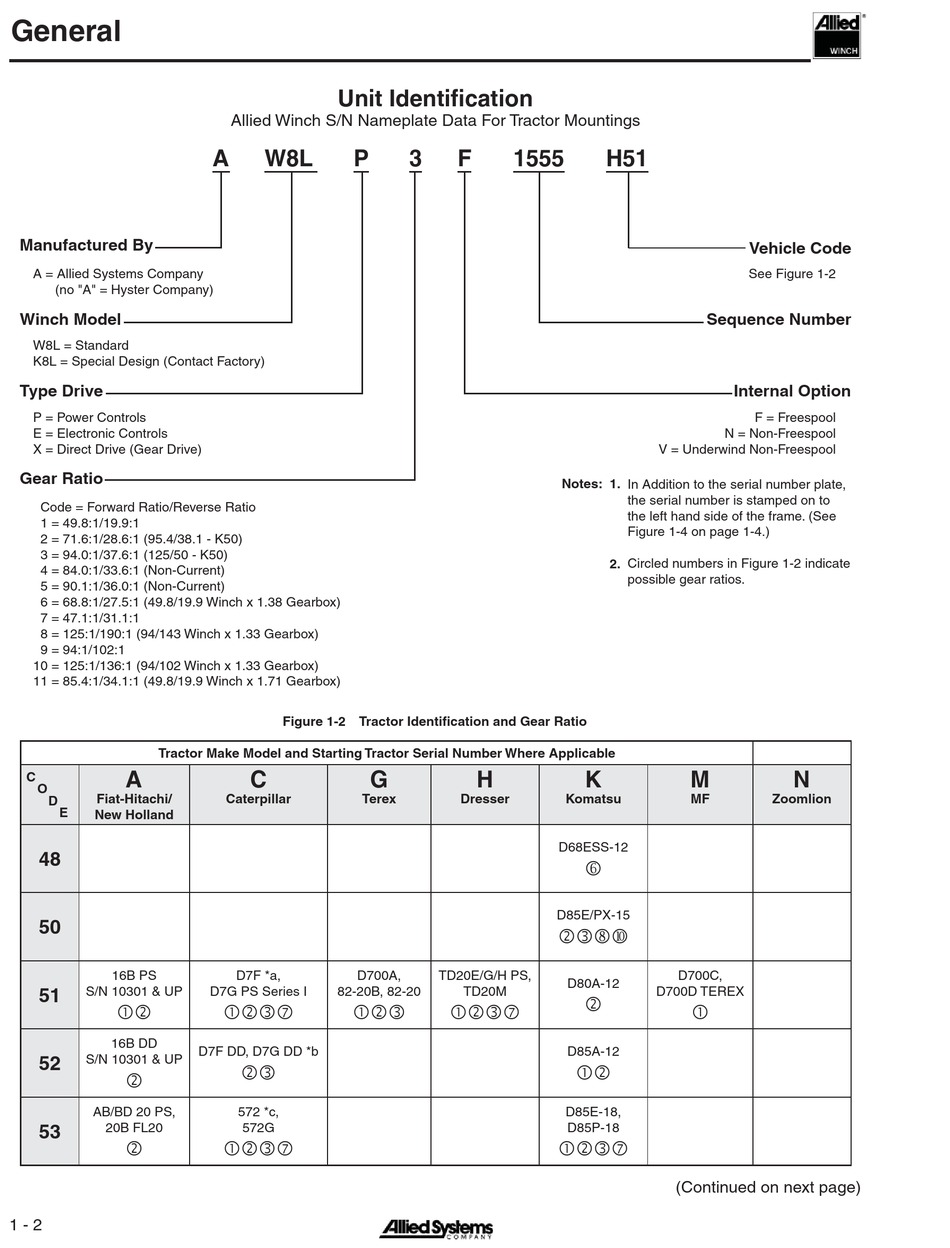

Allied Winch S/N Nameplate Data For Tractor Mountings
A W8L P
Figure 1-2 Tractor Identifi cation and Gear Ratio
C G
Caterpillar Terex
D7F *a, D700A,
D7G PS Series I 82-20B, 82-20
 
D7F DD, D7G DD *b

572 *c,
572G

3 F 1555
Notes: 1.
H K
Dresser Komatsu
D68ESS-12

D85E/PX-15

TD20E/G/H PS,
D80A-12
TD20M


D85A-12

D85E-18,
D85P-18

H51
Vehicle Code
See Figure 1-2
Sequence Number
Internal Option
F = Freespool
N = Non-Freespool
V = Underwind Non-Freespool
In Addition to the serial number plate,
the serial number is stamped on to
the left hand side of the frame. (See
Figure 1-4 on page 1-4.)
2. Circled numbers in Figure 1-2 indicate
possible gear ratios.
M
MF Zoomlion
D700C,
D700D TEREX

(Continued on next page)
