Allied Systems H5C Operating Instructions Manual

Hydraulic winch
Hide thumbs Also See for H5C:

Advertisement

Quick Links

Download this manual

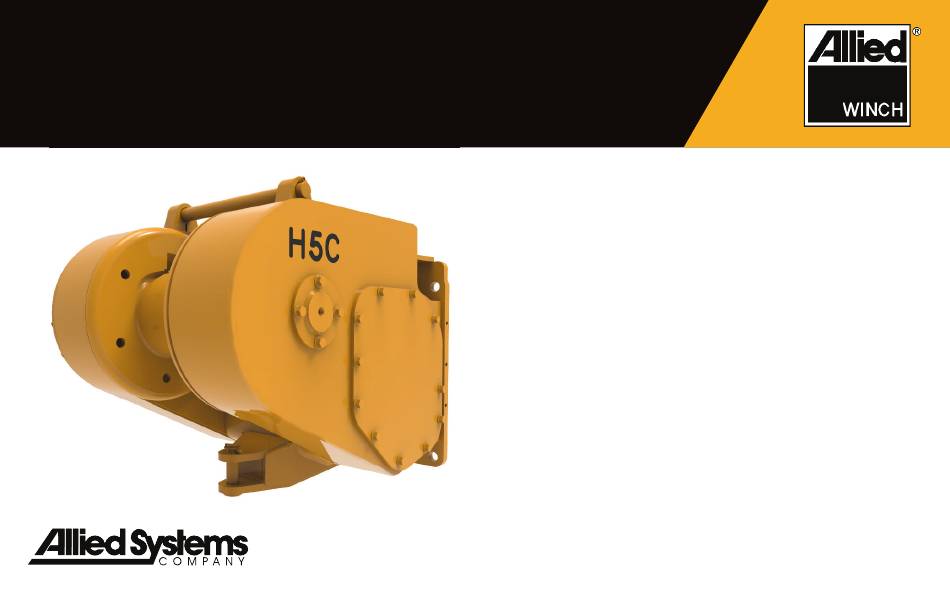

Operating Manual
H5C
Hydraulic Winch
This manual must be with the vehicle
on which this winch is installed.
Please check the Allied Systems website
regularly for updates to this manual.
A Product of
A Product of
www.alliedsystems.com
Sherwood, OR USA
P/N 599070W
Printed in U.S.A.
08/19/2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the H5C and is the answer not in the manual?

Questions and answers

Related Manuals for Allied Systems H5C

Summary of Contents for Allied Systems H5C

  • Page 1 Operating Manual Hydraulic Winch This manual must be with the vehicle on which this winch is installed. Please check the Allied Systems website regularly for updates to this manual. A Product of A Product of www.alliedsystems.com Sherwood, OR USA P/N 599070W Printed in U.S.A.
  • Page 2 Serial Number Winch Model Date Installed Date Delivered Special Equipment or Attachments A Product of Allied Systems Company 08/19/2024 Sherwood, Oregon Printed in U.S.A. U.S.A.
  • Page 3 • Become familiar with the winch and the machine on this operating manual, contact your local winch dealer, which it is mounted and see that they are maintained or contact Allied Systems Company: in good condition. Allied Systems Company • Read and understand the SAFETY SUMMARY...
  • Page 4 Should there be differences in interpretations to the text, please refer to the English language edition published by Allied Systems Company as the controlling document.
  • Page 5 Wire Rope Installation ..........7 HI-SPEED ............20 Oil Selection ............... 9 FREESPOOL Drag Adjustment ........ 21 Oil Capacity ..............9 H5C Winch Descriptions .......... 10 MAINTENANCE Optional Equipment ...........11 Maintenance Points ..........22 Serial Number Codes ..........12 Maintenance Schedule ..........23...
  • Page 6 Contents (Continued) OPERATING TECHNIQUES OPERATIONAL DIFFERENCES, OPTIONAL EQUIPMENT Dozer or Skidder Operation ........25 Integral Arch ............. 33 How to Move a Disabled Vehicle ......28 Fairlead ..............33 Working on a Steep Slope ........30 Drawbar ..............34 Dozer is Down the Slope ......... 30 Optional Gear Ratios ..........
  • Page 7 Safety Summary Safety Summary General Safety Notices WARNING The following pages contain general safety warnings which supplement specific warnings and cautions The “WARNING” symbol appears appearing elsewhere in this manual. All electrical and wherever incorrect operating procedures hydraulic equipment is dangerous. You must thoroughly or practices could cause serious injury review and understand the Safety Summary before or death.
  • Page 8 NOTE: All possible safety hazards cannot NOTICE be foreseen so as to be included in this manual. Therefore, you must always be alert to potential hazards that could This signal word alerts to a situation that endanger personnel and/or damage the is not related to personal injury but may equipment.
  • Page 9 Safety Summary Operation, Inspection, and Maintenance Warnings • Inspect the winch before each use: » Make sure that the controls and instruments Obey the following cautions and operate correctly. warnings before using your winch, to » Report the need for repairs immediately. avoid equipment damage, personal »...
  • Page 10 • Never stand nor permit others to stand in the bight • Do not use winch as a hoist. Dozer and skidder (loop) of a wire rope. mounted winches are designed for towing. • Do not stand nor permit others to be near the winch or wire rope when there is tension on the wire rope.
  • Page 11 Safety Summary • Wire rope and tail chain will fail if worn-out, • Make sure ground personnel are in plain view of the overloaded, misused, damaged, improperly operator, and at a distance of at least 1½ times the maintained or abused. Wire rope or tail chain failure working length of the wire rope.
  • Page 12 • If applying tension to the wire rope manually during • Your winch may have temperature shut-off system spooling: for protection of dozer and winch. Manual override of high temperature shut-off will cause damage to » ensure that the operator is winching in slowly, dozer and winch.
  • Page 13 Wear personal protective equipment, such as • Any alterations to the winch that have not been gloves and safety glasses, whenever servicing approved by Allied Systems Company, or use of any or checking a hydraulic system. non-OEM replacement parts, will void the warranty, »...
  • Page 14 Notes...
  • Page 15 This operating manual contains basic information neces- three gear reductions to the drum. Hydraulic oil is sup- sary for the operation and maintenance of the H5C winch. plied by the dozer mounted pump. The winch utilizes oil, filtration and cooling provided by the dozer circuit. Power...
  • Page 16 The switch panel may contain up to three rocker switches When the BRAKE-OFF switch is depressed, the brake-off to control FREESPOOL, BRAKE-OFF, and HI-SPEED. clutch is disengaged, allowing the dozer to move away Not every winch is equipped with all three. See page 16 from a towed load.
  • Page 17 General Nameplate Each winch is shipped from the factory with a nameplate as shown in Figure 1. The nameplate is stamped with: • winch model • winch serial number • maximum rated bare drum line pull • maximum wire rope diameter DO NOT operate the winch with larger diameter wire rope.
  • Page 18 Wire Rope Selection WARNING Each winch model can have a variety of wire rope sizes, Load loss hazard. lengths, or grades installed by the user. The maximum wire rope size is shown on the nameplate. The maximum A wire rope that breaks under high tension rated line pull stamped into the nameplate is based on the can suddenly whip back towards the maximum wire rope size, EEIPS grade.
  • Page 19 General EIPS EEIPS Wire Rope Capacity for Capacity for Maximum Maximum Diameter Full Drum Fill 2/3 Drum Fill Rated Line Pull Rated Line Pull in (mm) ft (m) ft (m) Lbs (N) Lbs (N) 5/8 (16) 423 (129) 279 (85) 29,400 (130,700) 32,400 (144,100) 3/4 (19)
  • Page 20 Wire Rope Reel When the wire rope is transferred from a reel to the drum, or from the drum back onto a reel, it must go from “top to top” for overwind winches, or “bottom to bottom” for un- derwind winches, as shown in Figure 3, to avoid putting a reverse bend into the wire rope.
  • Page 21 General Wire Rope Installation Keeper WARNING Ferrule Gloves should be worn when working with or near wire rope to prevent cuts and abrasions. NOTE: The illustrations in this section show a winch with an “overwind” configuration, which is standard. Some winches are configured for “underwind” , with the wire rope spooling onto the bottom of the drum instead of the top.
  • Page 22 Another method is to use the tines of a forklift to bear against the reel flange(s). Again, the friction generated between the tines and the flange(s) will create tension in the wire rope. Finally, the end of the wire rope may be fastened to a fork- lift.
  • Page 23 Oil Selection Oil Capacity The main consideration while selecting hydraulic fluid The oil capacity for H5C winch is 17 quarts (16 liters). is the estimated oil temperature extremes that will be experienced during service so the most suitable temperature-viscosity characteristics are obtained.
  • Page 24 H5C Winch Descriptions H5C Winch Descriptions Drum Drum Fill Plug Access Cover for Motor and Hydraulics Serial Number Stamp Plug to Drain Oil Bearing Retainer for Intermediate Shaft & Freespool Drag Plug to Check Oil Level Right Side Drum Shaft...
  • Page 25 General Optional Equipment NOTE: Not all optional equipment listed is available for The H5C winch may be equipped with the following op- each model of dozer. tions: * When the winch is fitted with an arch, wire rope diam- •...
  • Page 26 Serial Number Codes The nameplate with the serial number code is found on the left front corner of the winch case. A serial number indicates the following information: 1501 C805 Winch Model Vehicle Code See Figure 10 Sequence Number Hydraulic Operation Type Internal Options T = Standard External pump, PFR, FS &...
  • Page 27 General Dozer Make Model Caterpillar Komatsu Liebherr Case D51-24 1150M   PR716  1650M   D6K2 T4F  D4 BUILD 16A  Figure 10 Dozer or Skidder Identification Codes and Available Gear Ratios for H5C Winch...
  • Page 28 A trained service person is needed for tenance Schedule, Figure 16 on page 23. additional troubleshooting and repair that requires disas- sembly of parts of the winch. C805 Controls Y46 Controls K371 Controls Figure 11 H5C Hydraulic Winch Operator Controls (Typical...Your Installation May Vary)
  • Page 29 Operation Operating Procedures LINE-IN The H5C winch is designed to operate on a load sense, Moving the lever directs a pilot signal to the directional pilot-operated hydraulic system. When the dozer is run- control valve, which in turn controls oil flow to the hydraulic ning, the winch is ready to operate but no oil is flowing to winch motor.
  • Page 30 SWITCHES (All installations except Y46) FREESPOOL Operation WARNING FREESPOOL and HI-SPEED are controlled by illuminated switches (see Figure 12) on all installations except for Y46. The winch motor will activate if the lever is See page 18 for details of Y46 installation. moved but the drum will not be in control.
  • Page 31 Operation FREESPOOL mechanically disengages the winch drum HI-SPEED Operation from the drive train, so wire rope can be pulled from the winch by hand. It also releases the brake to allow On two-speed winches, a second rocker switch selects the re-engagement of the gear train when FREESPOOL is HI-SPEED mode.
  • Page 32 SWITCHES (Y46 Installations) Freespool Winch On FREESPOOL, BRAKE-OFF, and HI-SPEED are con- Winch Off trolled by three switches mounted on the right armrest. Brake-Off Enabled Line-In See Figure 13. Brake-Off Disabled Brake-On Line-Out WINCH OFF / WINCH ON / FREESPOOL High Speed On High Speed Off The top switch is a 3 position, detented switch.
  • Page 33 BRAKE-OFF WARNING BRAKE-OFF is controlled by a momentary rocker switch. When the BRAKE-OFF switch is depressed, the brake-off Do not use FREESPOOL if there is a load on clutch is disengaged, allowing the dozer to move away the wire rope. An uncontrolled release of the from a towed load.
  • Page 34 The BRAKE-OFF position is used when there’s a load on HI-SPEED Operation the winch wire rope. It allows the operator to slowly move the dozer away from the load while spooling wire rope off The rear rocker switch is detented, and selects the HI- the drum in a controlled manner.
  • Page 35 FREESPOOL Drag Adjustment CAUTION The preload on the bearings of the intermediate shaft Setting the preload on the intermediate shaft controls the resistance to rotation of the drum during the too tight will cause bearing overload. Setting FREESPOOL operation. The resistance to rotation is the preload too loose will allow shaft to not correct when the drum can be rotated by hand, but the be parallel.
  • Page 36 Use the operating time time for the winch. Maintenance Points Access Cover for Motor and Winch Hydraulics Oil Fill Plug Plug to Check Oil Level Breather Plug to Drain Oil Figure 15 H5C Winch Maintenance Points...
  • Page 37 Maintenance Maintenance Schedule INTERVAL PROCEDURE OR QUANTITY SPECIFICATION 50 hours or weekly Check oil level at plug (item 2). Add oil as nec- See Oil Selection and Oil Capacity for essary through fill plug (item 4). (See Figure details. 15 on page 22.) Do not operate winch when checking the oil level.
  • Page 38 Troubleshooting Chart PROBLEM POSSIBLE CAUSE CORRECTION Operation is rough or not regular. Hydraulic oil is too cold. Allow dozer hydraulics to warm up. Low oil level. Add oil. Hydraulic oil becomes too hot. Winch is operated for long periods. Allow unit to rest. Ensure cooler is installed. Low oil level.
  • Page 39 Operating Techniques Operating Techniques Dozer or Skidder Operation C805 controls shown. Your controls may vary. Step 1. The dozer or skidder is moved to an area Step 2. A load (logs) is connected to the wire rope. where a load will be connected. The operator moves If FREESPOOL was used, the operator must deac- the control lever to the LINE-OUT position or acti- tivate the FREESPOOL switch.
  • Page 40 C805 controls shown. Y46 controls shown. Your controls may vary. Your controls may vary. Step 3. The operator can move the control lever to Step 4. If the dozer or skidder must travel through the LINE-IN position. If the load is less than approxi- an area with bad traction conditions and the winch is mately 50% of the maximum line pull, the operator equipped with the BRAKE-OFF option, the operator...
  • Page 41 Operating Techniques Y46 controls shown. C805 controls shown. Your controls may vary. Your controls may vary. Step 5. When the vehicle is on firm ground, the Step 6. When the operator wants to disconnect operator can release the BRAKE-OFF switch and from the load, the vehicle is stopped and the FREE- move the control lever to LINE-IN to pull the load SPOOL switch is activated to loosen the wire rope.
  • Page 42 How to Move a Disabled Vehicle If the vehicle travels faster than the winch winds the wire rope, disengage the transmission until the winch A. A dozer or skidder often travels in areas where traction wire rope is tightened again. Do not drive over the wire conditions are bad.
  • Page 43 Operating Techniques B. A dozer or skidder equipped with a winch can be used Fasten the winch wire rope to the tow bar of the other to pull another vehicle from mud or other areas where it vehicle. The wire rope must be in a direction that is cannot move using only the drive wheels or tracks.
  • Page 44 tight, use the power from the engine to the winch Fasten the winch wire rope to the drawbar of another dozer, a structure or a tree that has enough strength to to pull the vehicle from the bad area. If the disabled hold the dozer on the slope.
  • Page 45 Operating Techniques B. Moving up the slope: Other Equipment is Down the Slope (See Figure 21). Set the throttle on the dozer for the required engine In this operation, the dozer and winch are on stable ground speed. and other equipment is working on a steep slope. The winch is used to give additional control to the equipment Put the control lever in LINE-IN position to tighten working on the steep slope.
  • Page 46 A. Lowering the equipment on the slope: B. Raising the equipment on the slope: Set the throttle on the dozer for the required engine Set the throttle on the dozer for the required engine speed. Operator experience is required for this op- speed.
  • Page 47 Operational Differences, Optional Equipment Operational Differences, Optional Equipment Integral Arch Fairlead When using an integral arch, the wire rope is routed over A fairlead consists of a set of top and bottom horizontal a raised horizontal roller and through a set of smaller rollers and side rollers that the wire rope is fed through.
  • Page 48 Drawbar Optional Gear Ratios Do not use the drawbar as an anchor point for a multi- Lower speed ratios allow better operator control of line point (over puller) line from the winch. Loads applied to speed. They may also allow the winch to pull in excess of the drawbar are transmitted to the bolts holding the winch wire rope or winch rated capacity.
  • Page 49 Notes Notes...
  • Page 50 Notes...
  • Page 52 To find a dealer in your area, Call: 503.625.2560, Fax: 503.625.7269, or Email: marketing@alliedsystems.com, or 599070W 08/19/2024 Printed in U.S.A. Visit our website: www.alliedsystems.com...
