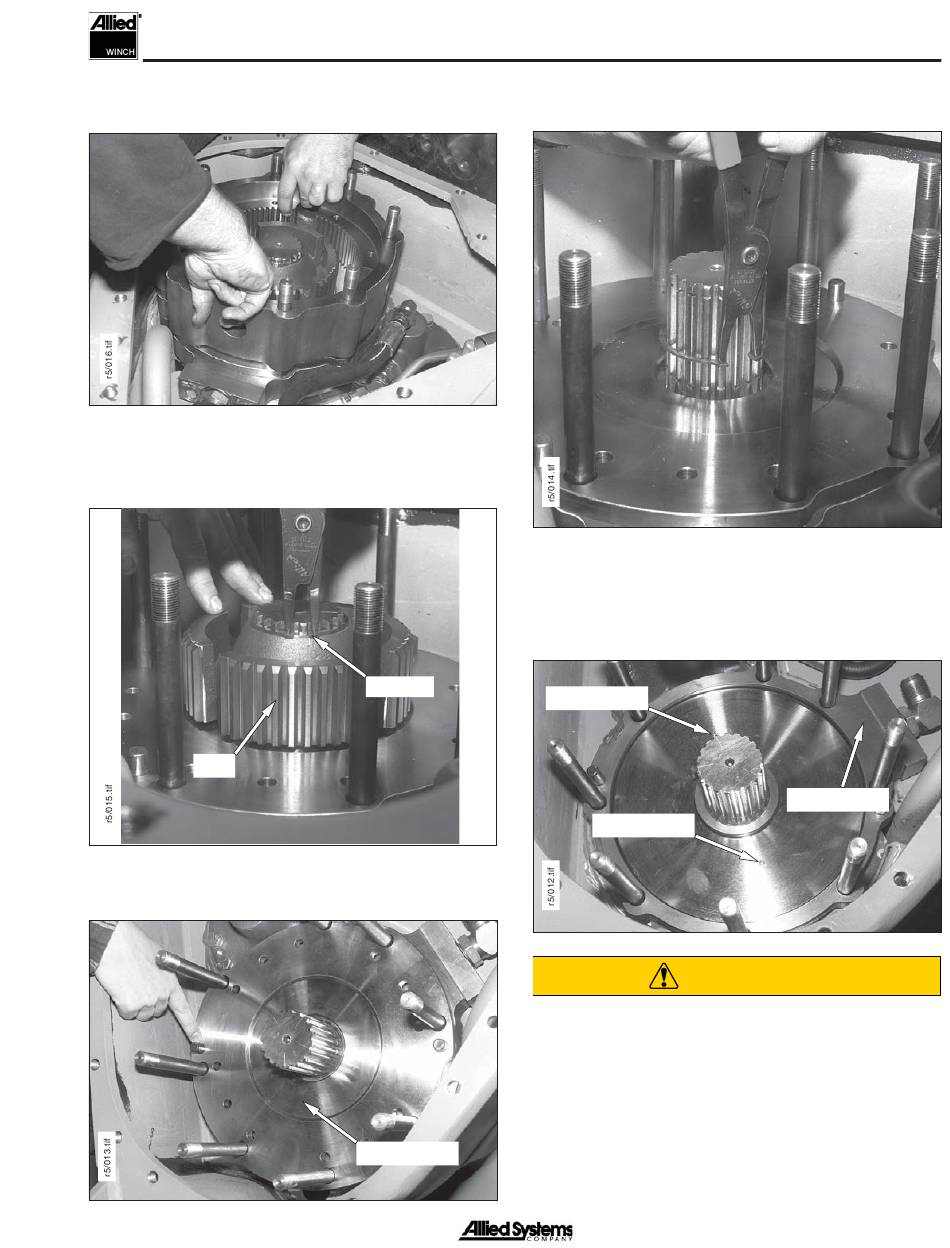

6. Remove cage from studs. It may be necessary to tap
cage with a soft hammer to loosen it.
7. Remove snap ring from brake shaft and pull hub off
brake shaft.
Hub
8. Remove pressure plate from studs.
9.
10. Slide the piston housing forward no more than one
Snap Ring
Pressure Plate
Remove snap ring from brake shaft.
inch if only the clutch shaft bearing retainer is to be
removed. To service the piston housing or brake
shaft, remove the piston housing.
Lifting Eye Hole
Lifting Eye Hole
CAUTION
If the brake shaft is not to be removed,
ensure that the bearing cup behind the
piston housing remains in the winch case
bore. If the cup falls out, the shaft will drop
down and the right-hand bearing will drop
out of its cup.
