Allied Systems W8L Service Manual page 154

Repairs - Clutch Shaft Reassembly & Installation
Item Part No. Description
51 2310503 Subassembly - Gear/Clutch Housing 1
52 2310505 Subassembly - Gear-Brake Shaft
53 2305271W Gasket - Valve Cover
54 286044W Gasket
55 142761W Gasket
56 2303848W Capscrew
57 2303902W Capscrew
58 15158W Washer
59 225264W Capscrew
60 225255W Shim - .005
61 225256W Shim - .007
62 55289W O-ring
63 95581W Seal Ring
64 108877W O-ring
65 39674W O-ring
66 225262W Cone - Bearing
67 225259W Shim - .005
4 - 58

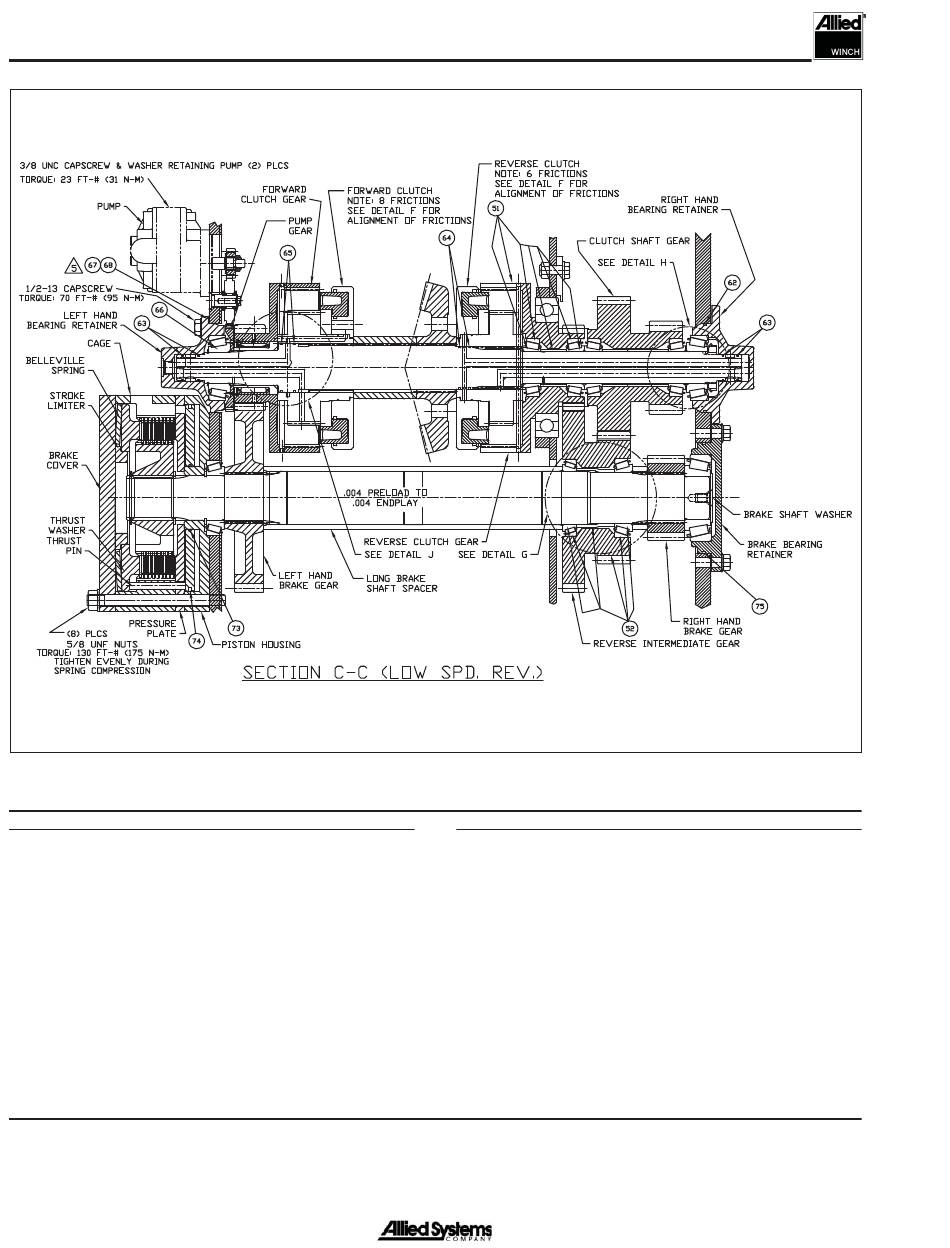

Figure 4-14 Service Kit Installed (Repair Kit Section)
Qty
1
1
1
1
56
11
2
2
4
4
1
4
2
2
1
4
Figure 4-15 Bill of Materials
Item Part No. Description
68 225260W Shim - .007
69 169671W Capscrew - SPL
70 67355W Lockwire
71 253812W Gasket - XMSN Cover
72 2304709W Gasket - Filter Cover
73 79979W O-ring
74 133927W Ring - Piston Seal
75 60988W O-ring
76 1314435W Shim - .025
77 196022W Gasket
78 134081W Shim - .005
79 134082W Shim - .007
80 134078W Shim - .005
81 134079W Shim - .007
82 79389W Seal - Oil
83 2300935W Gasket
Qty
4
6
6
1
1
1
1
1
2
1
4
4
4
4
1
1
