Introduction

This service manual is for the W8L winch. The following
information is included in this manual:
Section 1. General includes operational descriptions of
systems and components as an aid for troubleshooting
and repair.
Section 2. Power/Cable Controls focuses on the
system formation, provides a guide for periodic
maintenance, checks and adjustments, and lists
common problems and the possible causes and
corrections for a winch with power/cable controls.
Section 3. Electronic Controls focuses on the system
formation, provides a guide for periodic maintenance,
checks and adjustments, and lists common problems
and the possible causes and corrections for a winch
with electronic controls.
Section 4. Repairs describes the removal, disassembly,
assembly, and installation of the winch.
SERIAL NUMBER
PLATE
BRAKE COVER
FILTER COVER
General

Description

The W8L winch is a Power Forward (LINE-IN) and Power
Reverse (LINE-OUT) winch used on tractors with a
constant running power takeoff (PTO). The winch utilizes
a Self Contained Hydraulic (SCH) system where all
hydraulic power is produced inside the winch case.
The W8L winch has a BRAKE-OFF function, which
permits the wire rope to be pulled from the drum. A
FREESPOOL function is available as an option on the
W8L winch.
The W8L winch has a rated line pull capacity of 355,480
N (80,000 lbf) when there is one layer of wire rope on
the drum.
DRAWBAR PIN
INTERMEDIATE SHAFT RETAINER
FREESPOOL DRAG ADJUST
DRAWBAR

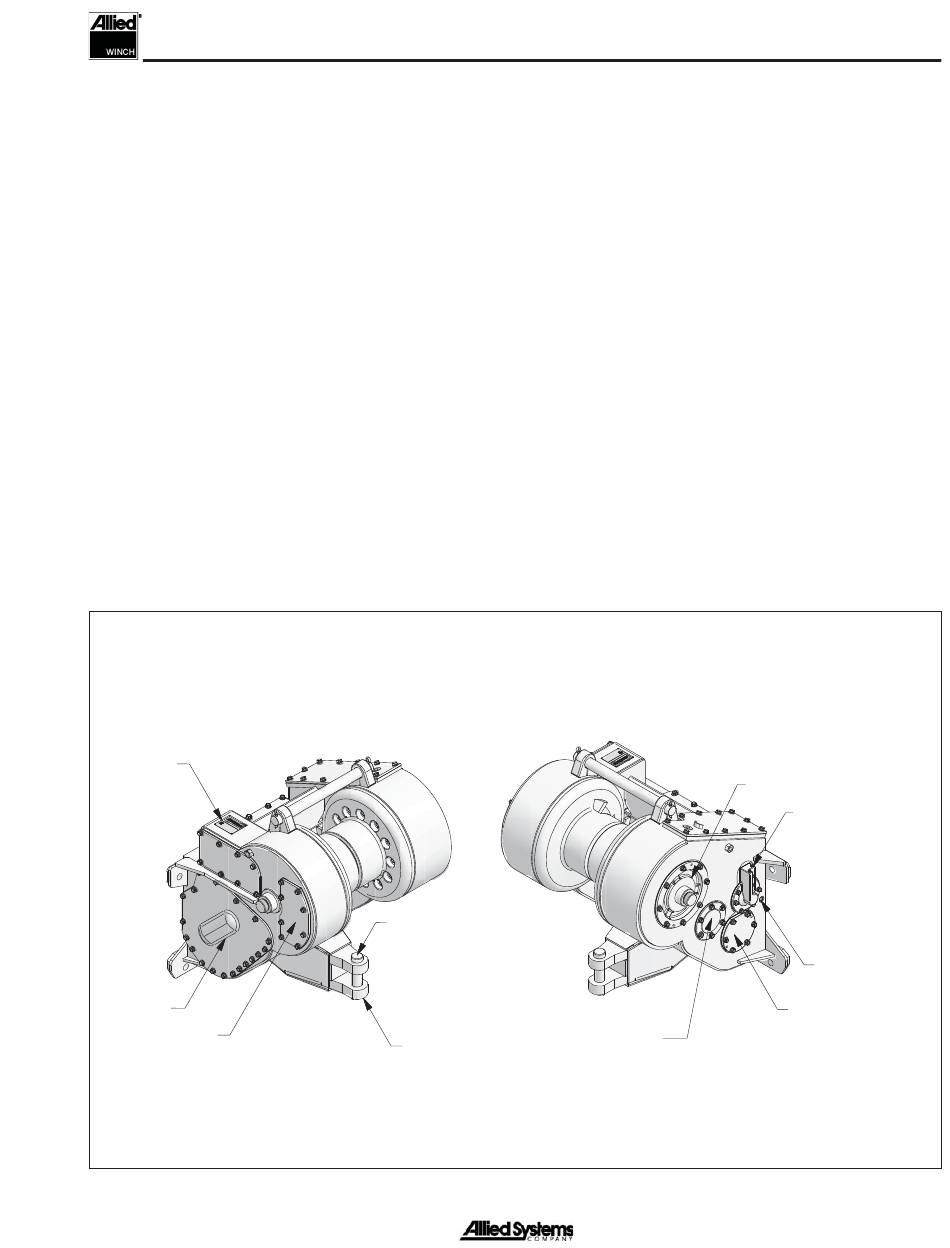

Figure 1-1 Model Views
Section 1
DRUM SHAFT RETAINER
CLUTCH SHAFT RETAINER
OIL LEVEL PLUG
BRAKE SHAFT RETAINER
1 - 1
