General
Warning and Maintenance Decals

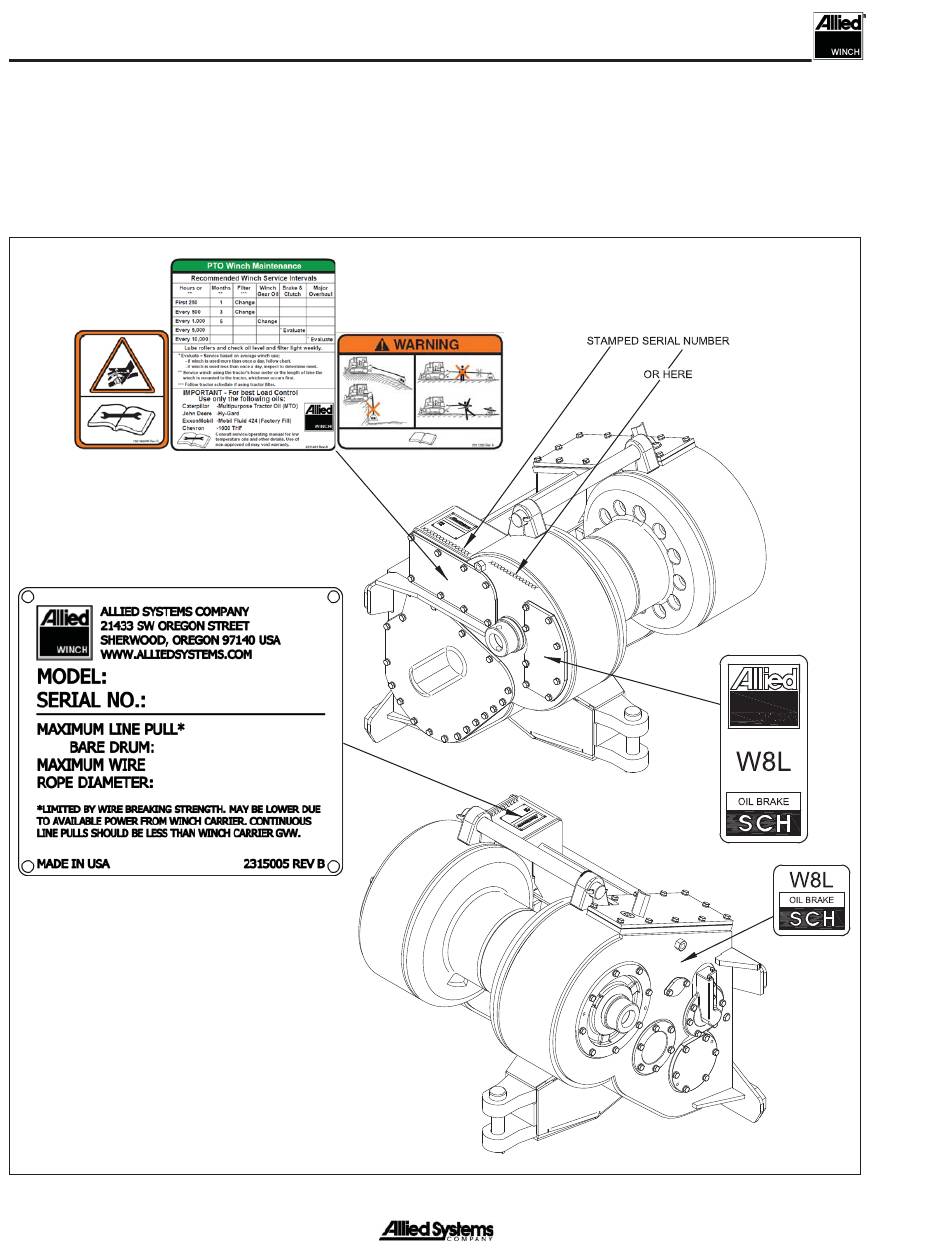

The unit nameplate, a Warning Decal and a Maintenance
Plate are located on the winch as shown in Figure 1-5.
If the nameplate has been damaged, obtain a new one
and install the new nameplate in the location shown in the
fi gure. If the Warning Decal or Maintenance Plate have
1 - 6
been damaged, install a new one in the location shown.
Decals are used on both sides of the winch frame as
shown. Replace as necessary.
Figure 1-5 Decal Installaion
