Electronic Controls
Gauge Port Labels
G1 = INLET
G2 = FORWARD
G3 = REVERSE
G4 = BRAKE
G5 = FREESPOOL (OPTIONAL)
G6 = ACCUMULATOR
3 - 4
Valve Manifold Assembly
P/N 2306547W
(The color of the manifold body is silver)

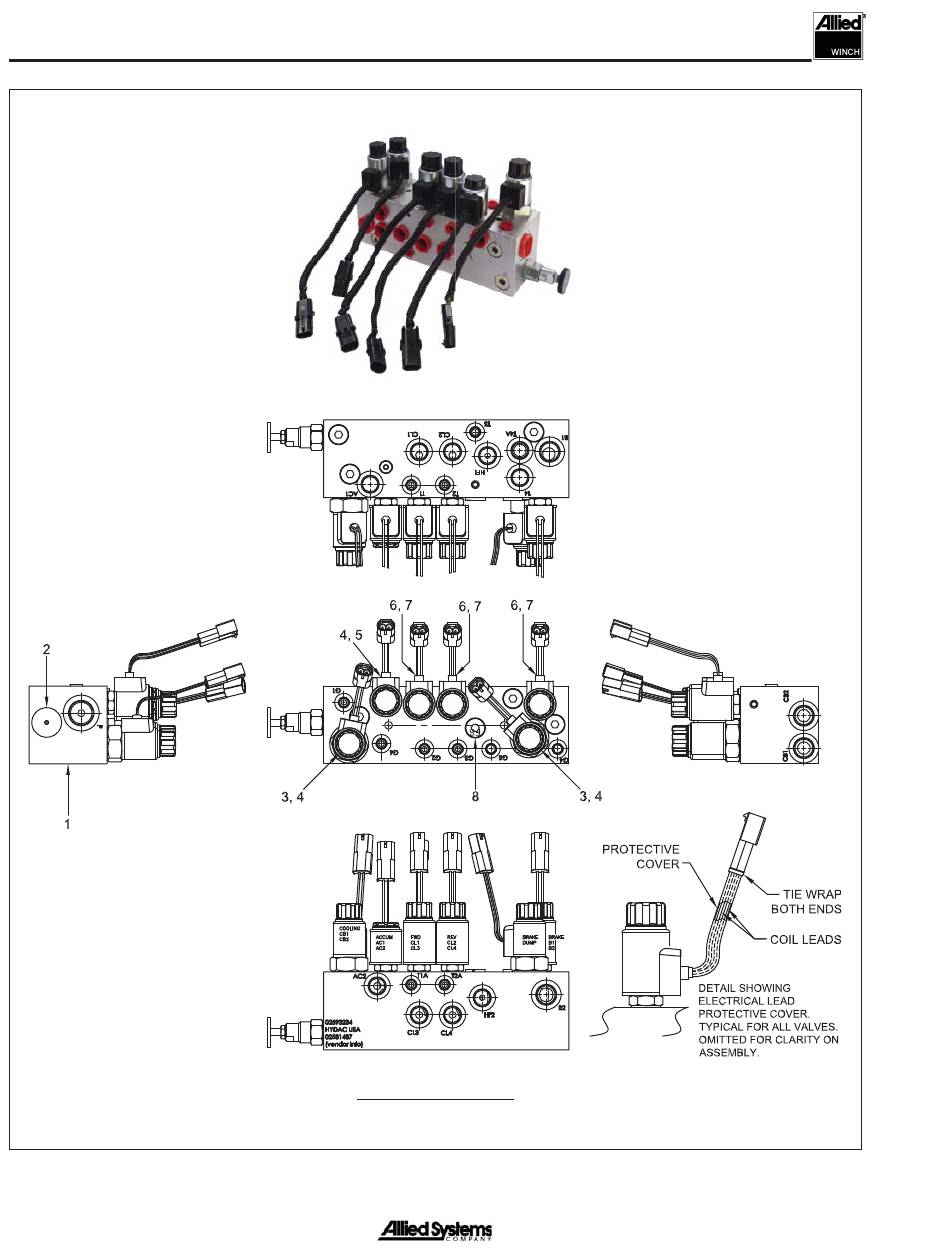

Figure 3-3 Valve Manifold Assembly and Hydraulic Schematic (1)
Used on S/N AW8L-3130 through S/N AW8L-3778
1. Manifold Block
2. Relief Valve
3. Cartridge Valve
4. 24 VDC Valve Coil
5. Cartridge Valve
6. Proportional Valve
7. 24 VDC Valve Coil
8. Freespool Plug (Optional)
