Oil Brake Reassembly and Installation
Make sure the clutch shaft has been installed prior to
installation of the brake assembly.

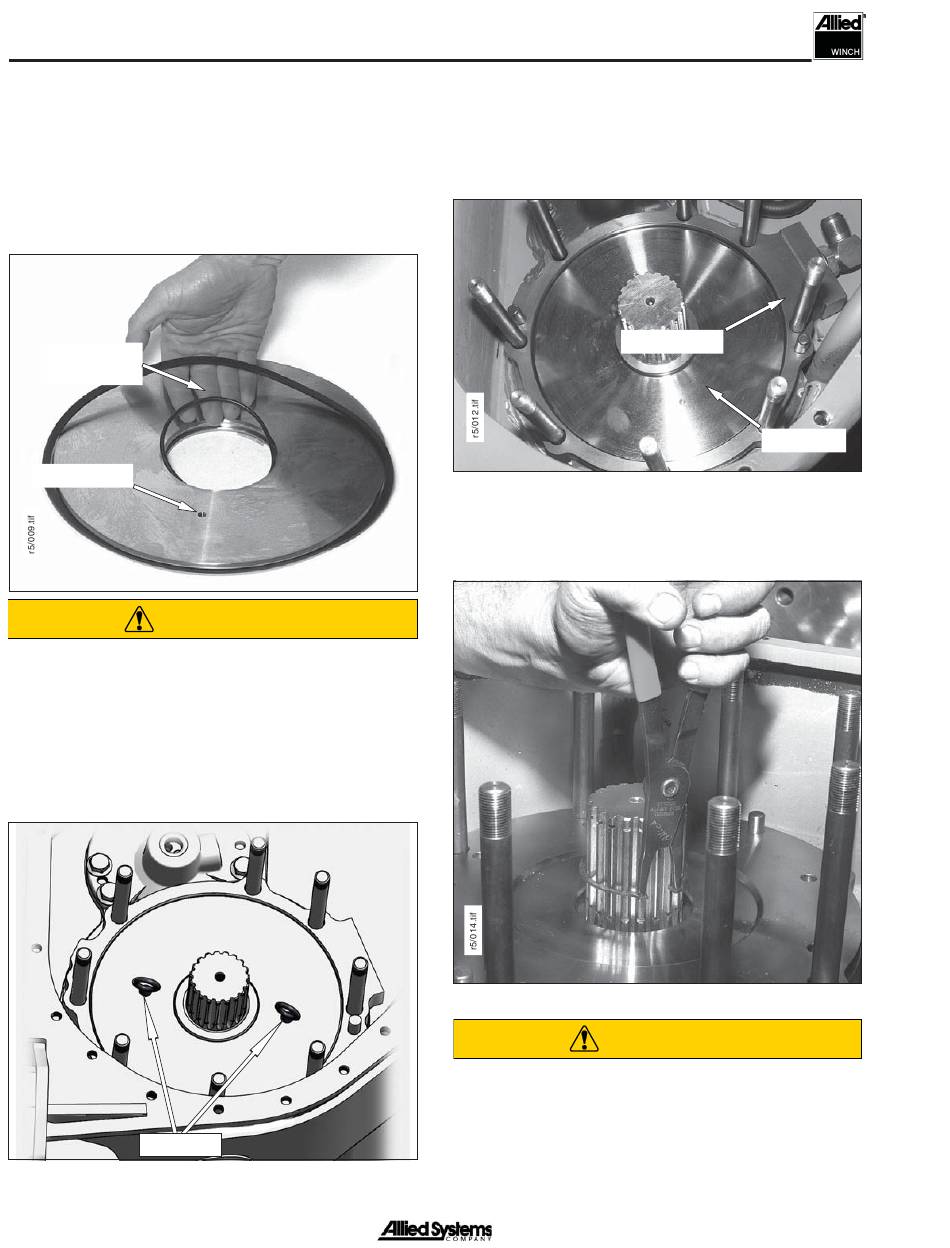

1. Lubricate and install two new O-rings in piston. It
may be necessary to stretch inner O-ring to hold it
in place until piston is installed in piston housing.
Lifting Eye Hole
(Under Fingers)
Lifting Eye Hole
CAUTION
Use only Allied Systems Company-
approved O-rings to ensure proper
sealing.
2. Install two lifting eyes (Allied P/N X-203348) into
the two threaded holes (shown above) on the
brake piston. Then, Install piston in housing. See
"Specialized Tools" at the end of Section 4 for
ordering information.
Lifting Eyes
NOTE: Remove the lifting eyes after piston is in
position.
4 - 68
3. Ensure that the left-hand bearing is securely installed
over the brake shaft.
4. Slide assembled piston and piston housing in place
on studs.
Piston Housing
NOTE: Make sure that bearing on brake shaft is properly
positioned before installing housing.
5. Install snap ring.
CAUTION
Make sure that snap ring is securely posi-
tioned in brake shaft groove.
Piston Plate
