Allied Systems H5C Series Service Manual

Hide thumbs Also See for H5C Series:
Table of Contents

Advertisement

Quick Links

Download this manual

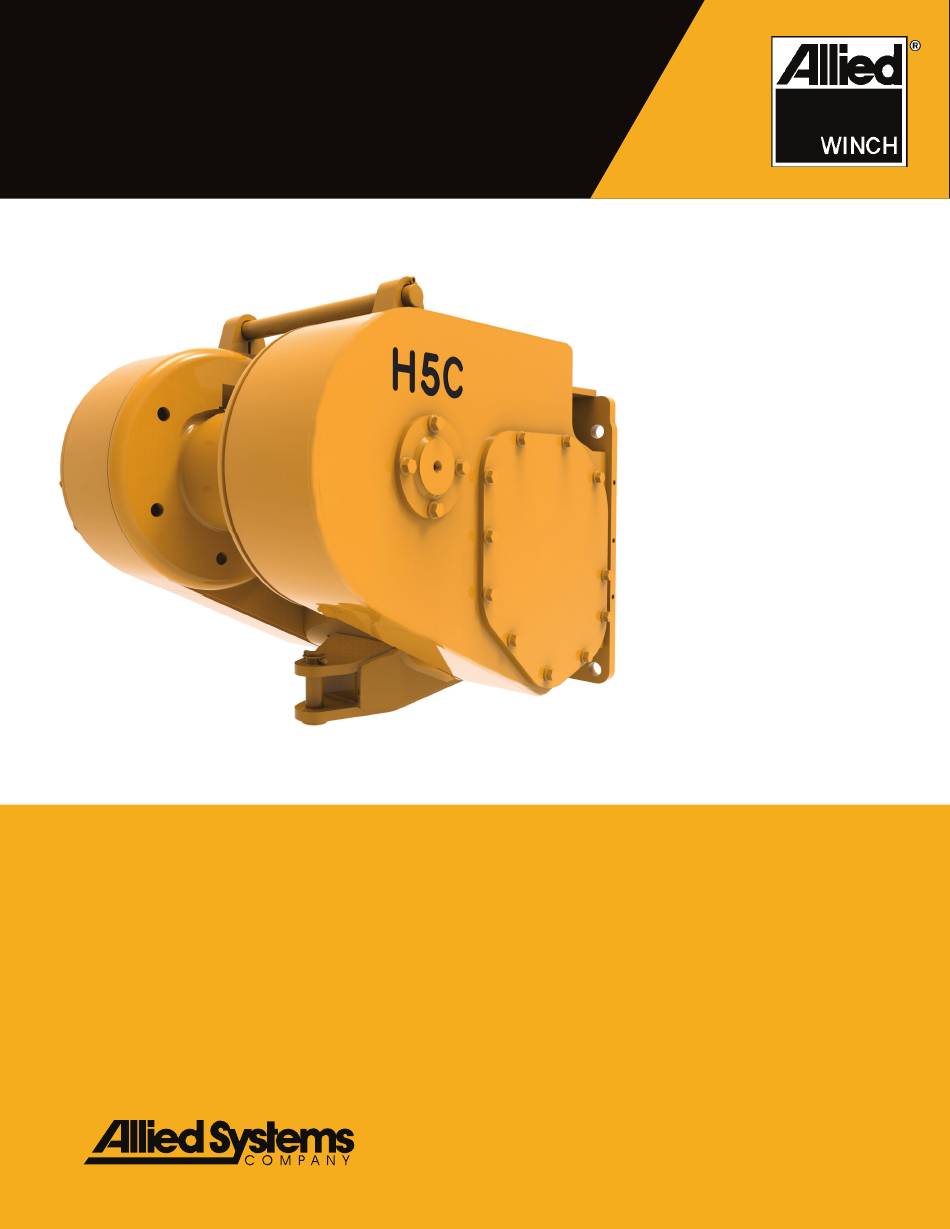

Service Manual
H5C
Hydraulic Winch
Applicable to winches with serial numbers H5C***1226*** and later.
A Product of
Please check the Allied Systems website
regularly for updates to this manual.
www.alliedsystems.com
Sherwood, OR USA
P/N 599028W
Printed in U.S.A.
12/16/2020
