NOTE: Inching rapidly increases the temperatures of
the clutch, the brakes and the oil, and will accelerate
clutch and brake wear.
Inching (LINE-IN). This operation is used to slowly move
a load toward the tractor. As the control lever is moved
gradually towards the LINE-IN position, the control valve
will cause the oil pressure to slowly release the brake and
slowly apply the forward clutch. As the brake is released,
the clutch takes control and begins to move the load.
1. Electronic Control Lever
2. LED Bypass Assembly
3. Rocker Switch Assembly
4. Winch Light Decal

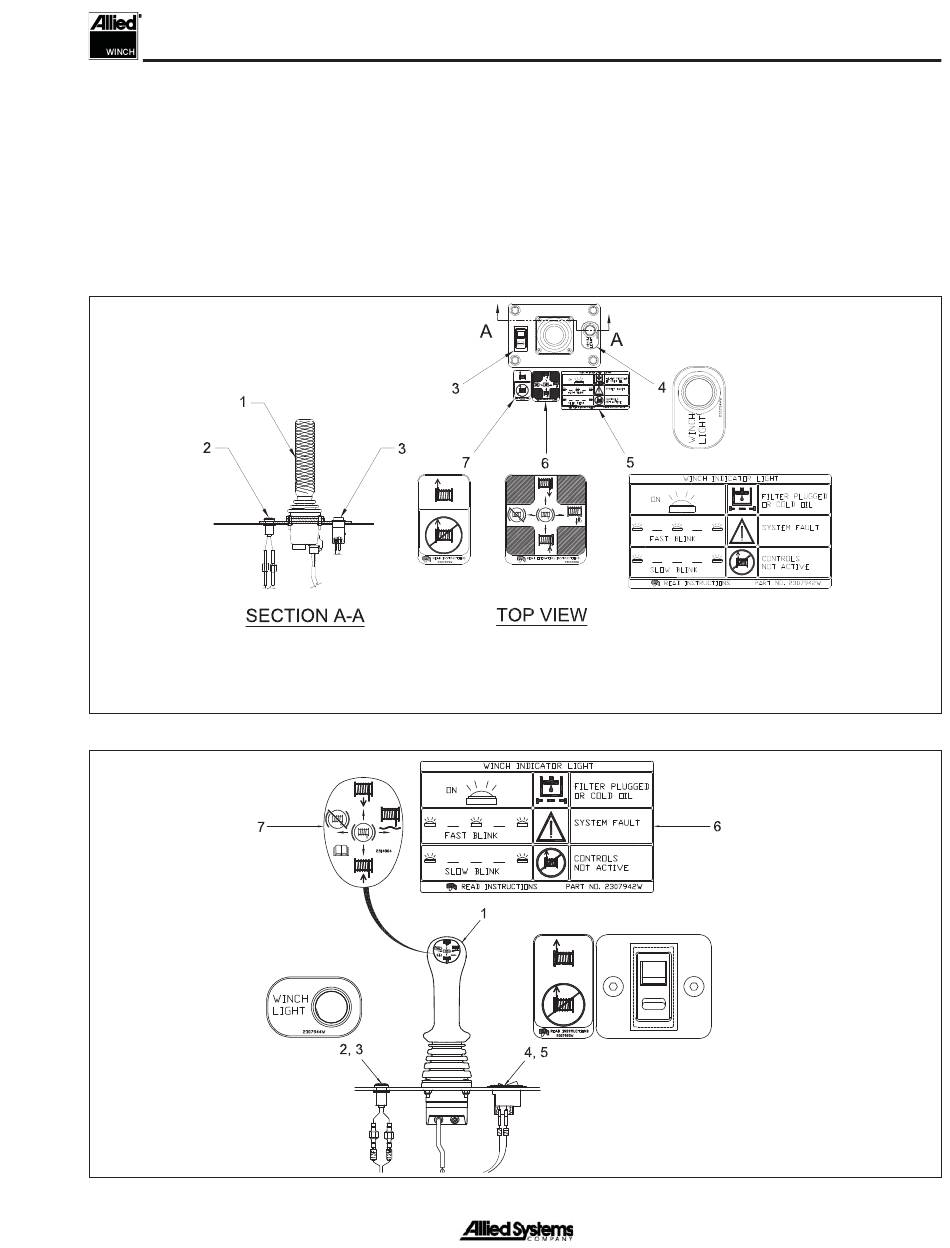

Figure 1-9 Electronic Controls (Old Type)
Figure 1-10 Electronic Controls (New Type)
Inching (LINE-OUT). This operation will release the brake
as the reverse clutch is applied. This permits the weight of
the load, with assistance from the reverse clutch, to unwind
wire rope from the winch drum against the resistance of
the brake. The operator controls the resistance of the brake
by the position of the control lever.
5. Winch Light Indicator Decal
6. Control Lever Decal
7. Activation Switch Decal
1.
Electronic Control Lever
2. LED Bypass Assembly
3. Winch Light Decal
4. Rocker Switch Assembly
5. Activation Switch Decal
6. Winch Light Indicator Decal
7. Control Lever Decal
