READ OPERATING
INSTRUCTIONS
Note: The black dots
indicate the positions
of the control levers.

Sequence of Operation - LINE-OUT

At the end of spool travel, a direct port to the reverse clutch
is opened. The modulator is bypassed.
C
271731W

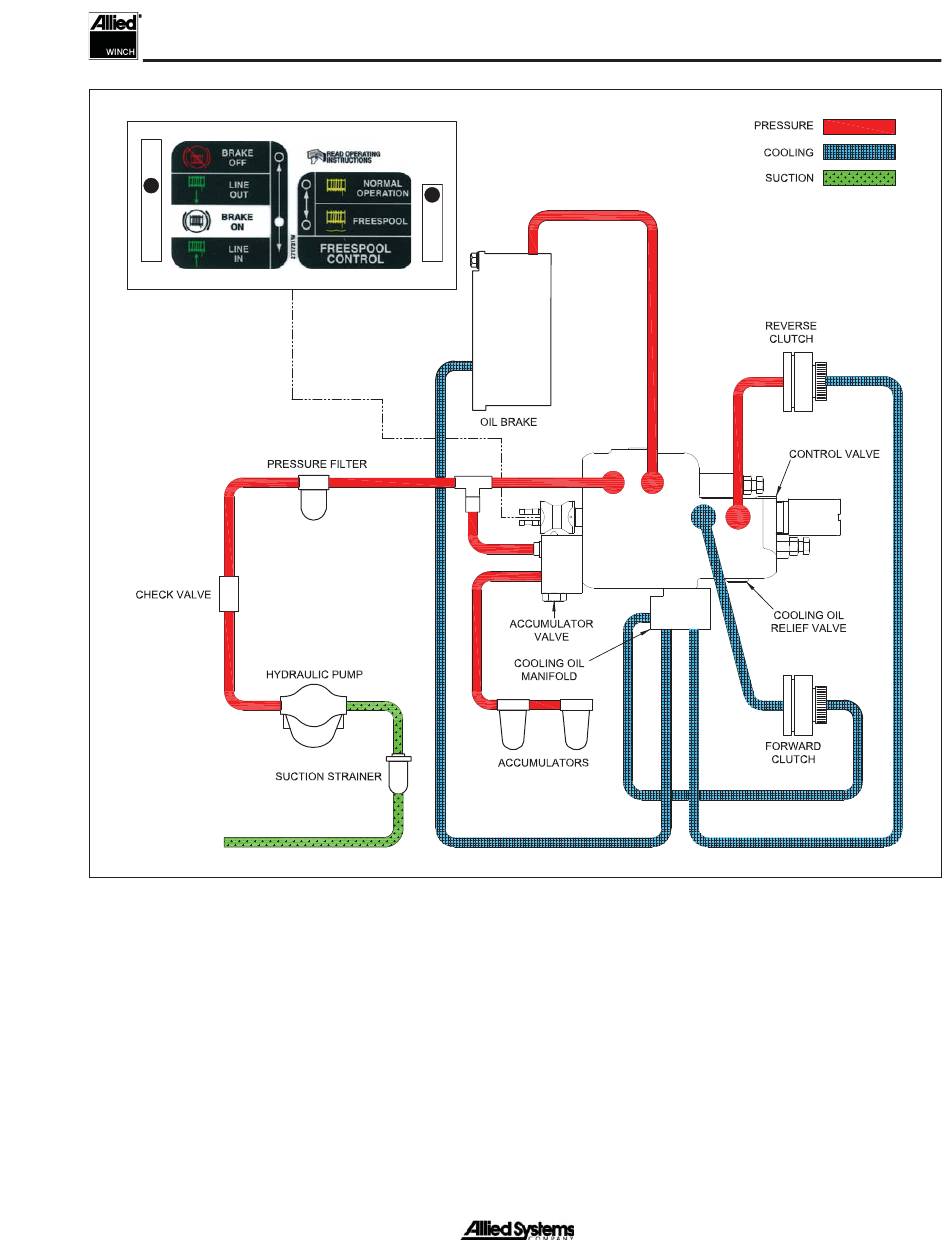

Figure 2-11 Hydraulic System - LINE-OUT (Reverse)
NOTE: On a fast shift, the spool moves into the full
reverse position, routing oil directly to the reverse
clutch and bypassing the reverse modulator valve
completely, thereby avoiding any delay in operation.
Section 2
2 - 9
