Repairs - PTO Shaft Removal & Disassembly
PTO Shaft Removal and Disassembly

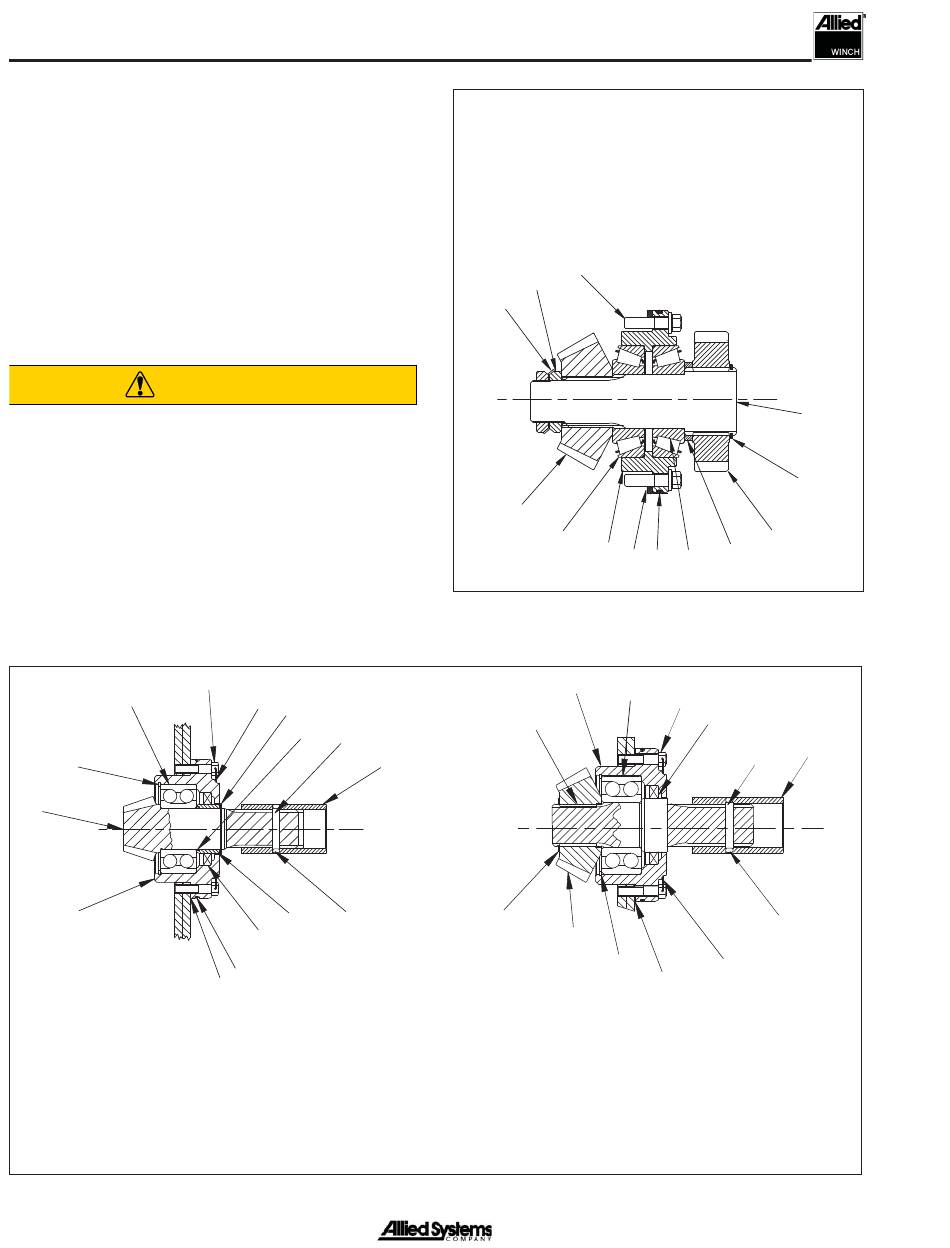

Please refer to Figures 4-4 and 4-5. Before removing the
PTO shaft assembly, the winch must be removed from the
tractor as explained above in Winch Removal.
1. Remove dropbox (if applicable).
2. Remove sealing capscrews. If winch is equipped with
a drive adapter, refer to Step 5.
3. Remove top center cover, pry or push PTO shaft
assembly forward.
CAUTION
Tag the shim pack so that the exact
number of shims are re-installed.
4. Disassemble and inspect PTO shaft (refer to Figures
4-4 and 4-5).
5. If equipped with a drive adapter, remove the drive
adapter box fi rst (refer to Figures 4-6 through 4-9),
then the bevel pinion gear and carrier. Disassemble
and inspect as required.
