Oil Clutch Reassembly
CAUTION
Make certain all parts have been thoroughly
cleaned prior to reassembly. Dirt particles
will seriously affect operation of the
winch.
NOTE: Reassembly is essentially the same for both
the forward and reverse clutches.

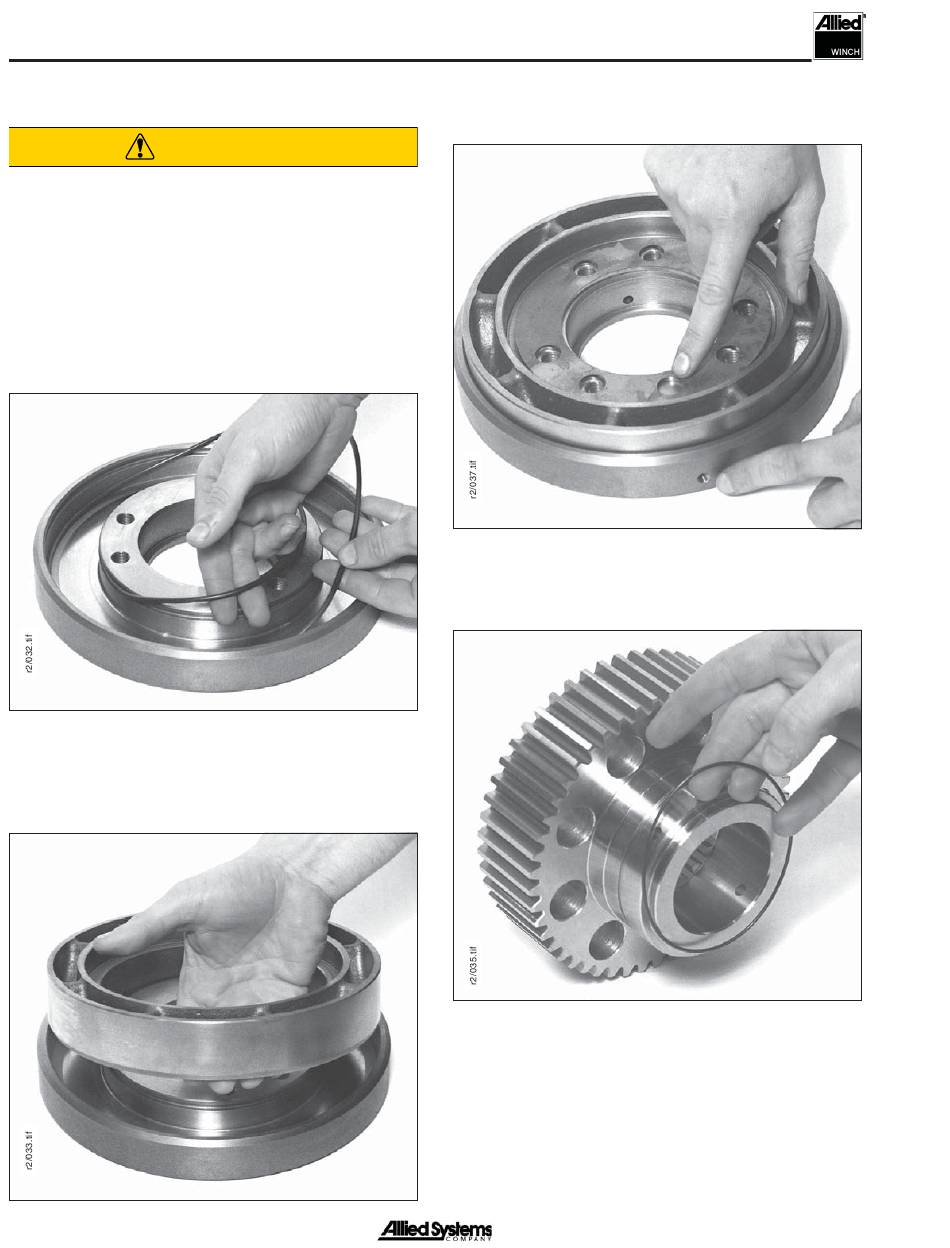

1. Install two new O-rings in piston housing. Lubricate
piston cavity with O-ring lube.
NOTE: It may be necessary to stretch the large O-ring
so that it will stay in its groove during installation of
the piston.
2. Carefully install the piston in the housing.
4 - 46
3. Install the spring retainer so holes are properly
sequenced.
4. Install new O-ring on the hub. Lubricate with O-ring
lube.
