Operating and Maintenance Manual
11.4
Removing a lateral cowling access panel
Pos. Name
1
Front end lower attaching bolt (qty 1)
2
Rear end lower attaching bolts (qty 2)
To remove a lateral cowling access panel, proceed as follows.
1.
Park the vehicle on level ground and turn off the engine;
2.
Lay a clean piece of cloth on the tracks under the panel to be removed.
3.
Remove the bolt (1) holding the lower front end of the cowling panel. Remove the two bolts (2)
holding the rear end of the cowling panel. Grab the bottom edge of the panel and carefully pull
it up few inches/centimeters to disconnect the alignment cones at the top.
4.
Carefully pull away the panel, taking care not to damage the electrical cable between the panel
and the accessory support frame.
5.
Disconnect the electrical cable and lower the panel onto a suitable support.
154
(255)
1

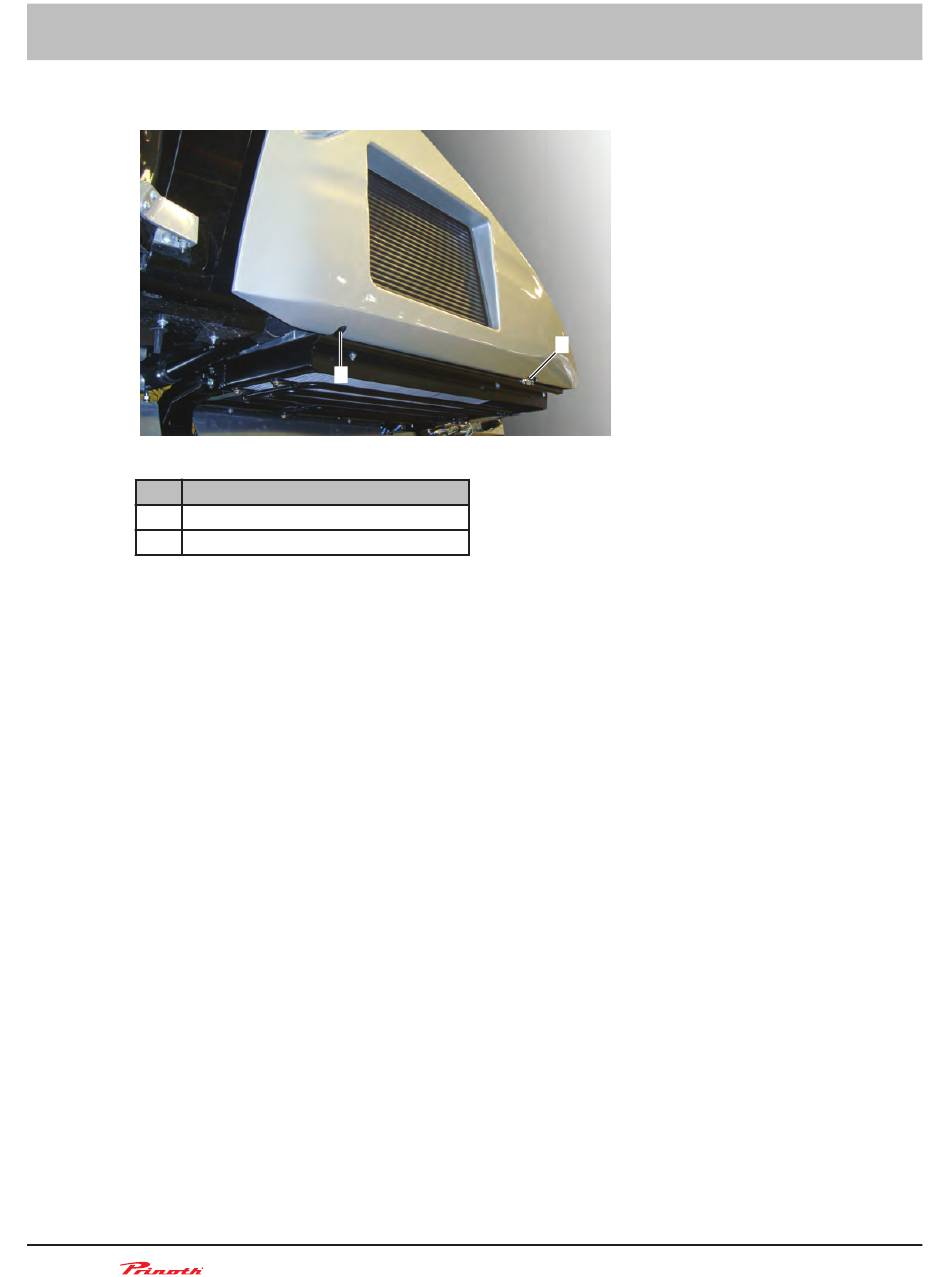

Figure 91: Lateral cowling panel
11 - Maintenance
Snow groomer BISON
2
