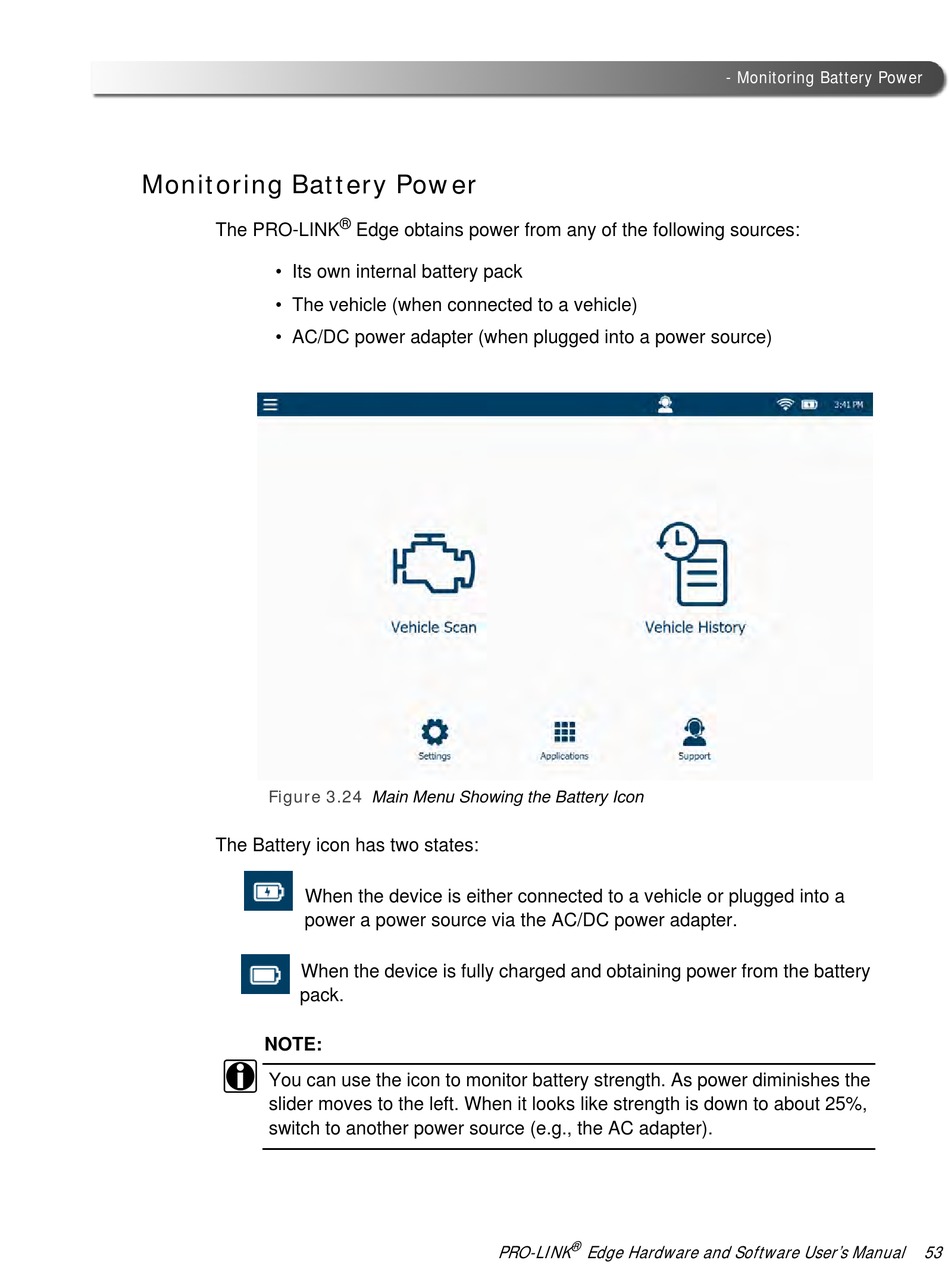

Monitoring Battery Power

The PRO-LINK
• Its own internal battery pack
• The vehicle (when connected to a vehicle)
• AC/DC power adapter (when plugged into a power source)
Figure 3.24
The Battery icon has two states:
When the device is either connected to a vehicle or plugged into a
power a power source via the AC/DC power adapter.
When the device is fully charged and obtaining power from the battery
pack.
NOTE:
i
You can use the icon to monitor battery strength. As power diminishes the
slider moves to the left. When it looks like strength is down to about 25%,
switch to another power source (e.g., the AC adapter).
®
Edge obtains power from any of the following sources:
Main Menu Showing the Battery Icon
PRO-LINK
- Monitoring Battery Power
®
Edge Hardware and Software User's Manual 53
