Hardware And User Interface Overview; Component Checklist - Snap-On PRO-LINK EDGE Hardware User Manual

Chapter

• Hardware and User Interface Overview

2

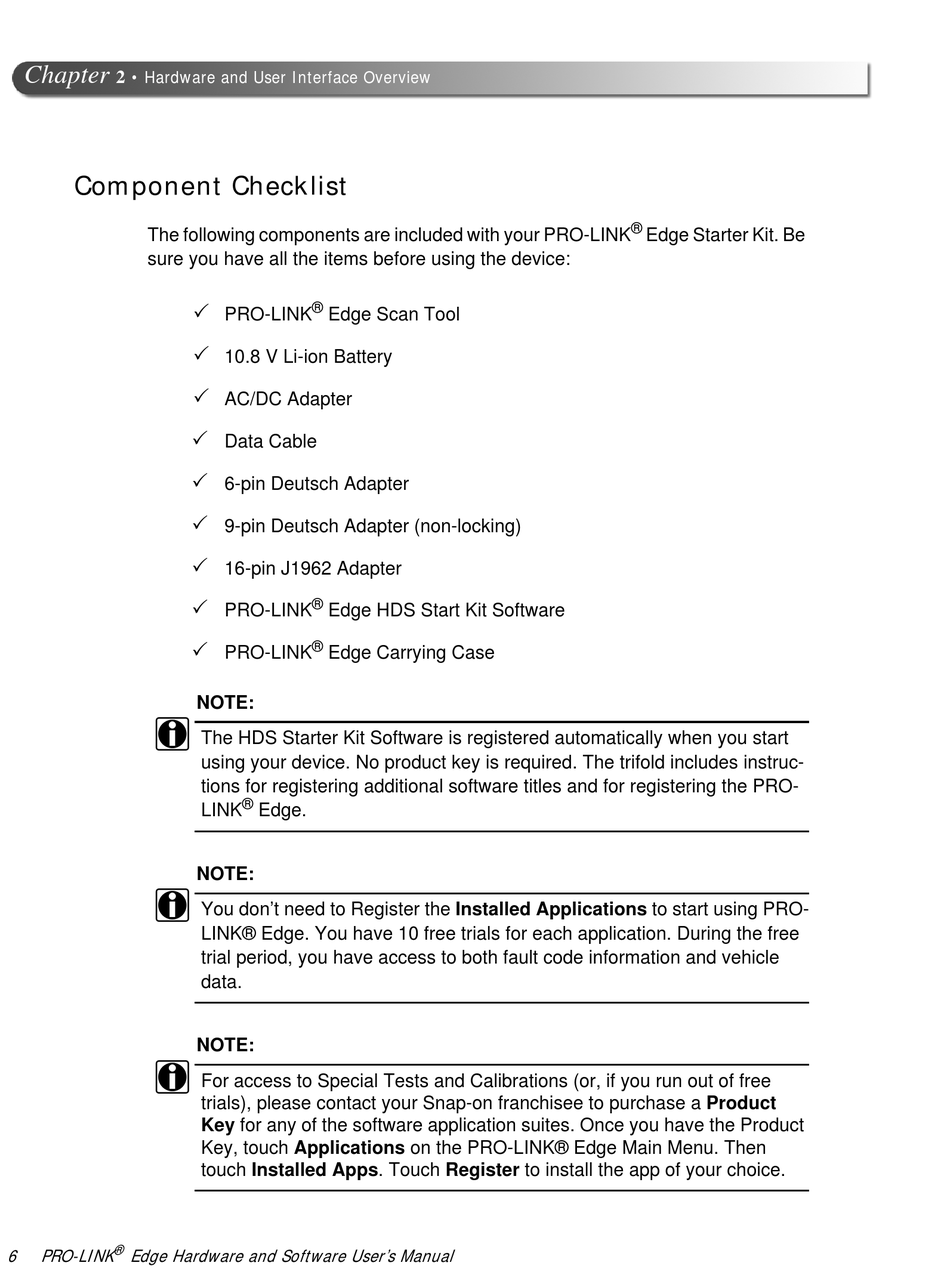

Component Checklist

The following components are included with your PRO-LINK
sure you have all the items before using the device:
i
i
i
®
6 PRO-LINK Edge Hardware and Software User's Manual
 ®
PRO-LINK Edge Scan Tool

10.8 V Li-ion Battery

AC/DC Adapter

Data Cable

6-pin Deutsch Adapter

9-pin Deutsch Adapter (non-locking)

16-pin J1962 Adapter
 ®
PRO-LINK Edge HDS Start Kit Software
 ®
PRO-LINK Edge Carrying Case
NOTE:
The HDS Starter Kit Software is registered automatically when you start
using your device. No product key is required. The trifold includes instruc-
tions for registering additional software titles and for registering the PRO-
®
LINK Edge.
NOTE:
You don't need to Register the Installed Applications to start using PRO-
LINK® Edge. You have 10 free trials for each application. During the free
trial period, you have access to both fault code information and vehicle
data.
NOTE:
For access to Special Tests and Calibrations (or, if you run out of free 
trials), please contact your Snap-on franchisee to purchase a Product
Key for any of the software application suites. Once you have the Product
Key, touch Applications on the PRO-LINK® Edge Main Menu. Then
touch Installed Apps. Touch Register to install the app of your choice.
®
Edge Starter Kit. Be
