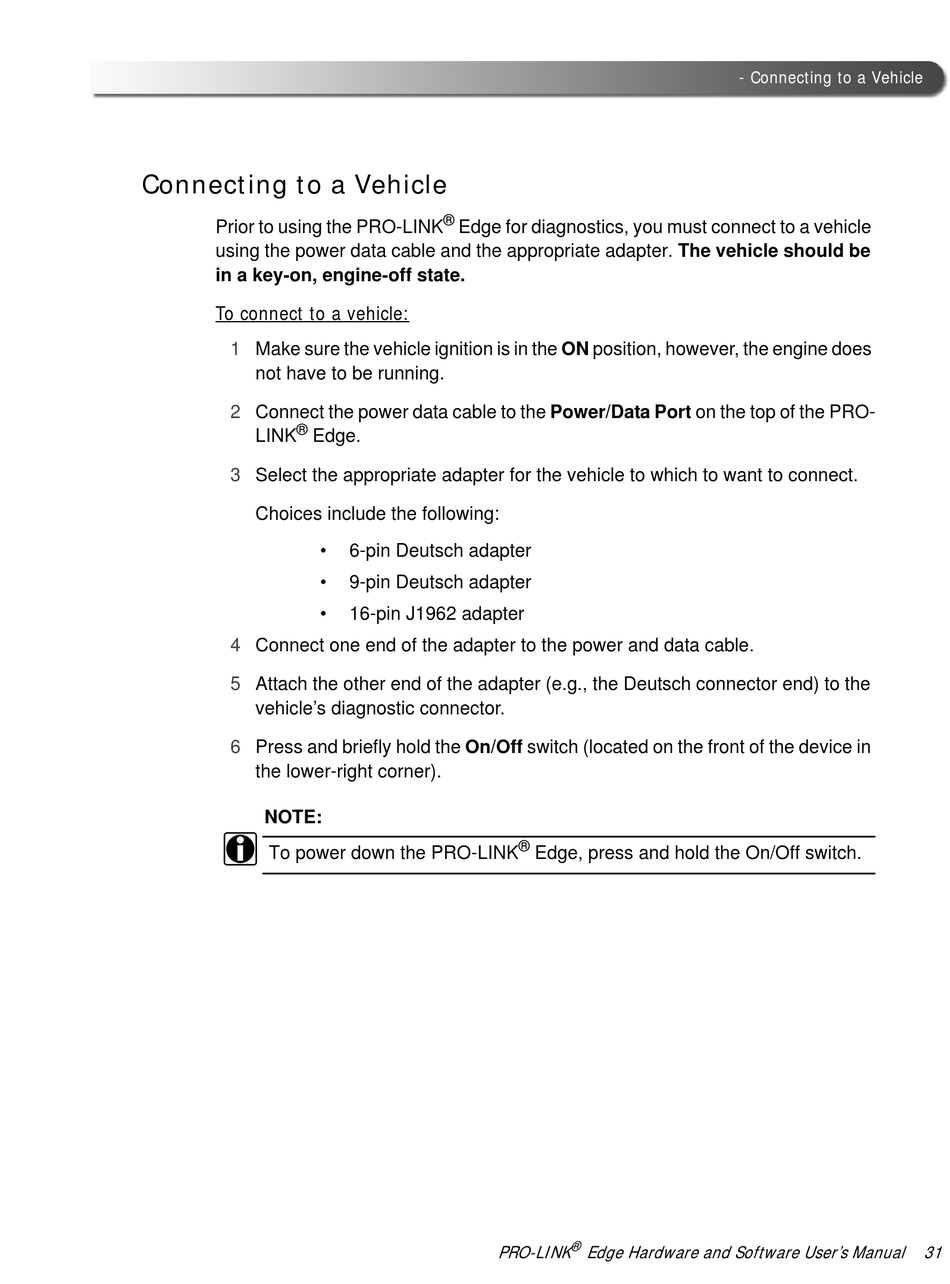

Connecting to a Vehicle

Prior to using the PRO-LINK
using the power data cable and the appropriate adapter. The vehicle should be
in a key-on, engine-off state.
To connect to a vehicle:
1
Make sure the vehicle ignition is in the ON position, however, the engine does
not have to be running.
2
Connect the power data cable to the Power/Data Port on the top of the PRO-
®
LINK Edge.
3
Select the appropriate adapter for the vehicle to which to want to connect.
Choices include the following:
•
•
•
4
Connect one end of the adapter to the power and data cable.
5
Attach the other end of the adapter (e.g., the Deutsch connector end) to the
vehicle's diagnostic connector.
6
Press and briefly hold the On/Off switch (located on the front of the device in
the lower-right corner).
NOTE:
i
To power down the PRO-LINK
®
Edge for diagnostics, you must connect to a vehicle
6-pin Deutsch adapter
9-pin Deutsch adapter
16-pin J1962 adapter
®
PRO-LINK
Edge, press and hold the On/Off switch.
®
Edge Hardware and Software User's Manual
- Connecting to a Vehicle
31
