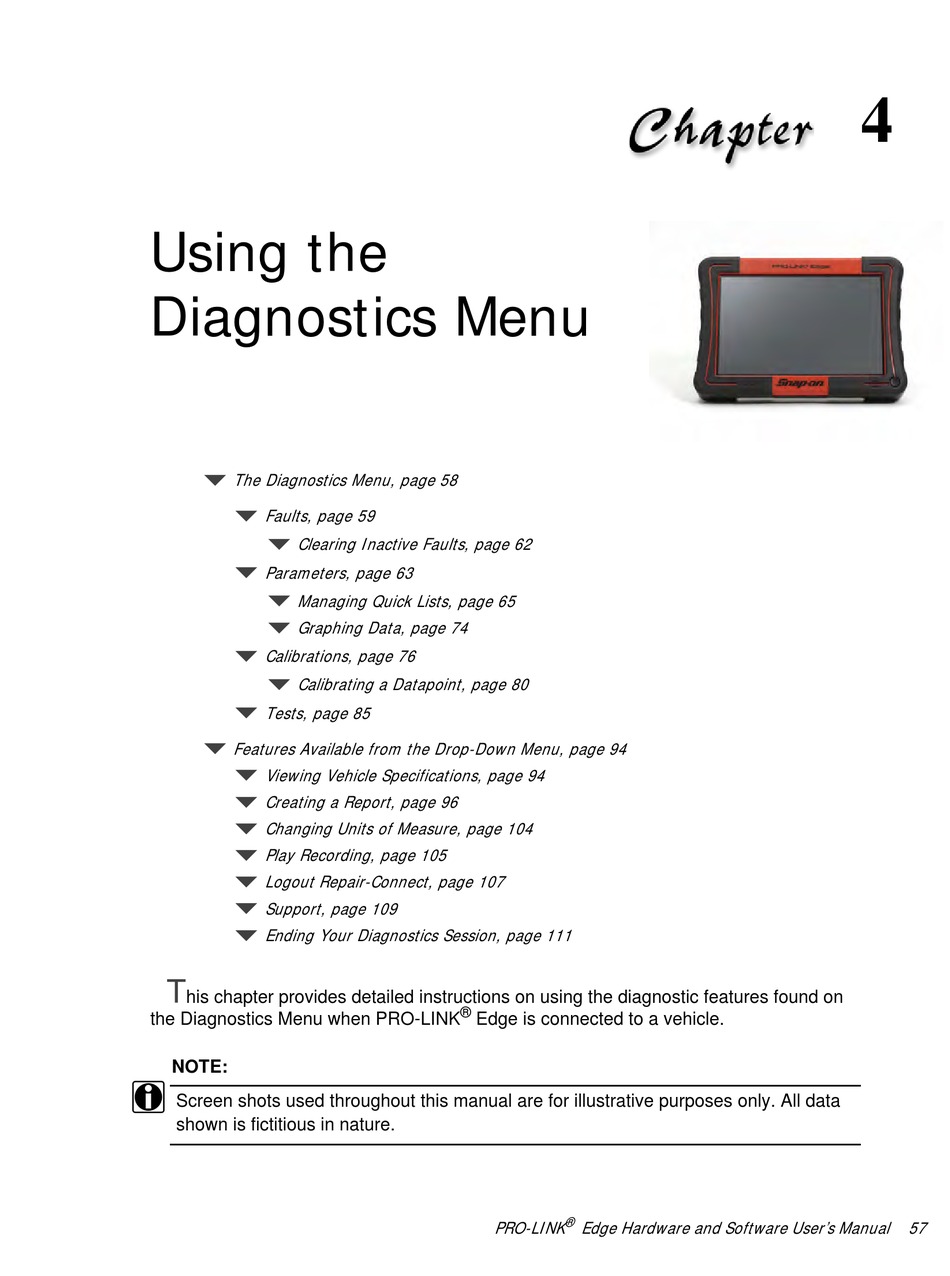

Using the
Diagnostics Menu
The Diagnostics Menu, page 58
Faults, page 59
Clearing Inactive Faults, page 62
Parameters, page 63
Managing Quick Lists, page 65
Graphing Data, page 74
Calibrations, page 76
Calibrating a Datapoint, page 80
Tests, page 85
Features Available from the Drop-Down Menu, page 94
Viewing Vehicle Specifications, page 94
Creating a Report, page 96
Changing Units of Measure, page 104
Play Recording, page 105
Logout Repair-Connect, page 107
Support, page 109
Ending Your Diagnostics Session, page 111
T
his chapter provides detailed instructions on using the diagnostic features found on
the Diagnostics Menu when PRO-LINK
NOTE:
i
Screen shots used throughout this manual are for illustrative purposes only. All data
shown is fictitious in nature.
®
Edge is connected to a vehicle.
®
PRO-LINK
Edge Hardware and Software User's Manual
4
57
