Snap-On PRO-LINK EDGE Hardware User Manual page 146

The Add Printer screen is displayed.

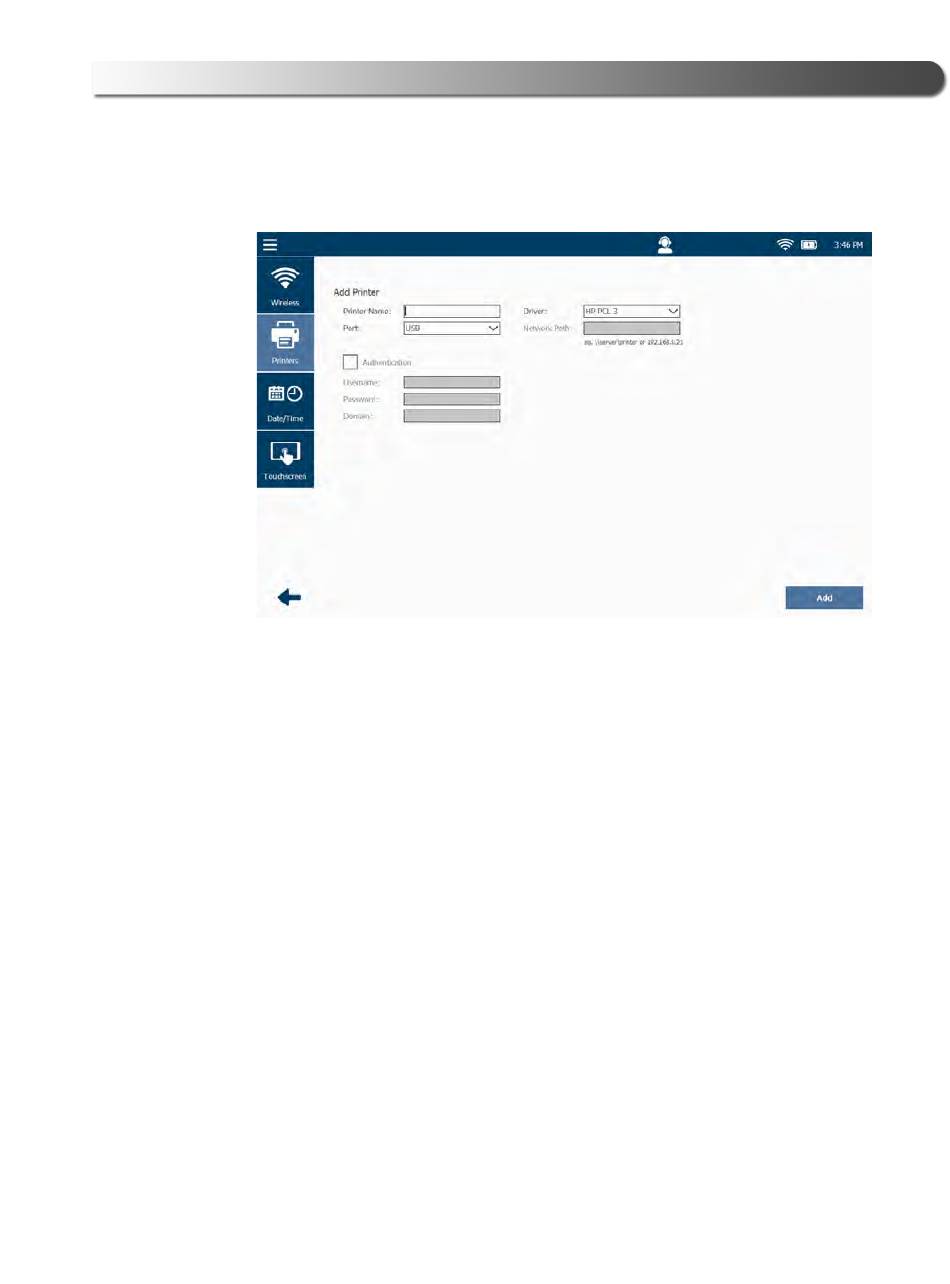

Figure 6.15
Add Printer Screen
3
Touch within the Printer Name data entry box.
The keyboard is displayed.
4
Use the keyboard to give the printer name (e.g., example printer).
5
Select Network from the Port drop-down list.
Select USB if you plan to connect to the printer by means of a USB cable.
6
From the Driver drop-down list, select the driver that most closely matches the
type of printer you have (e.g., HP PCL 3/PCL 3 GUI).
7
Use the keyboard to enter the Network Path (e.g., 192.168.123.123).
8
Touch the Authentication check box to activate it (if your network server
requires a password).
9
Touch within the following data entry fields to enter the appropriate
information:
—Username
—Password
—Domain
®
PRO-LINK Edge Hardware and Software User's Manual 143
- The Settings Menu
